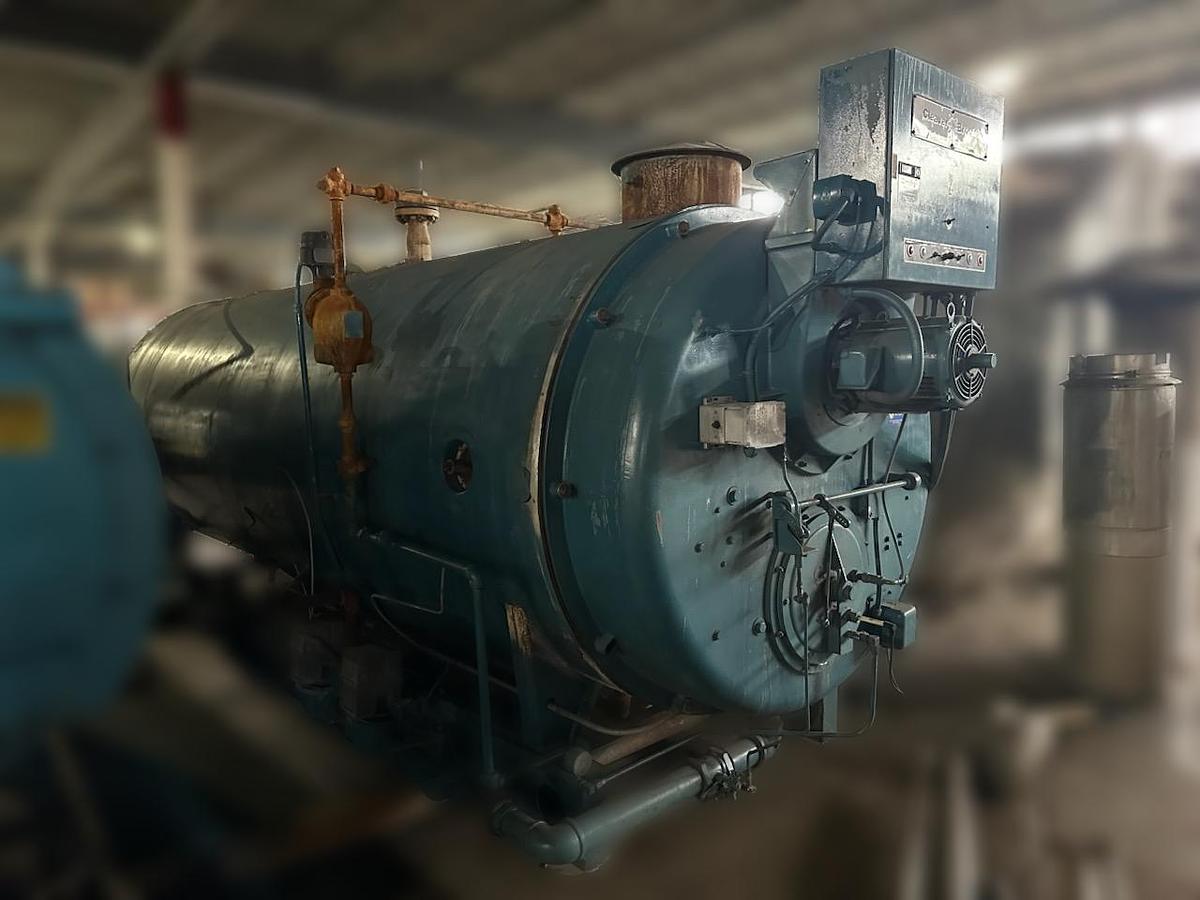

200 HP Cleaver Brooks CB Packaged Steam Boiler – 1998 CB700-200-200

Overview

This used 200 HP Cleaver Brooks CB Packaged Steam Boiler is designed for high-performance steam production at medium pressure. Operating at 200 PSI, this industrial-grade steam boiler delivers reliable performance for demanding applications. With an impressive input capacity of 8,369,000 BTU/hr and natural gas fuel capability, this unit provides substantial steam output while maintaining efficiency.

Manufactured in 1998, this steam boiler showcases Cleaver Brooks' renowned engineering and durability, making it a dependable solution for industrial steam requirements.

Design and Performance

• Horsepower: 200 HP
• Design Pressure: 200 PSI Steam
• Fuel Type: Natural Gas
• Input Capacity: 8,369,000 BTU/hr
• Blower Motor: 10 HP
• Main Power Supply: 460 Volt / 3 Phase / 60 Hz / 15 Amp
• Minimum Circuit Ampacity: 19 Amp
• Max Rating of Circuit Protection: 60 Amp
• Control Circuit: 120 Volt / 1 Phase / 60 Hz / 7 Amp
• UL Listed: Gas-Fired Boiler Assembly (No. A63744)

Ideal Applications

• Manufacturing Facilities
• Industrial Processing Plants
• District Heating Systems
• Chemical Processing
• Pharmaceutical Production
• Large Commercial Operations
• Institutional Facilities

Benefits

• ✓ High-pressure steam generation for industrial applications
• ✓ Efficient natural gas combustion for optimized energy usage
• ✓ Robust design engineered for continuous industrial operation
• ✓ Cleaver Brooks' quality construction ensures safety and reliability
• ✓ Powerful output suitable for demanding industrial environments

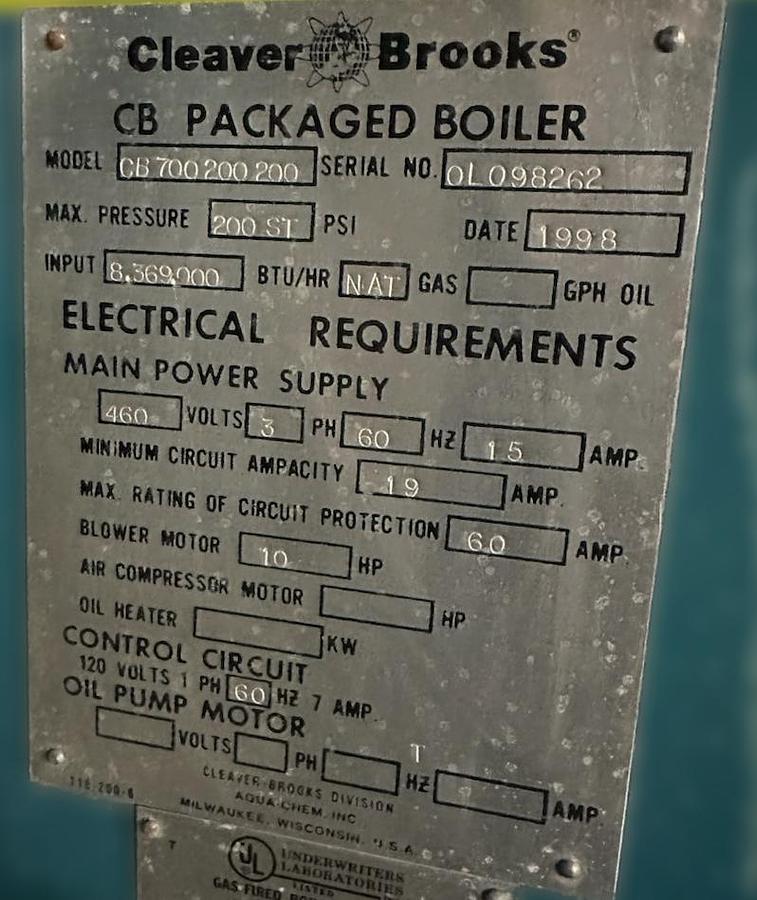

Additional Information

• Condition: Used
• Manufacturer: Cleaver Brooks
• Model: CB700-200-200
• Serial Number: OL098262
• Year Built: 1998
• Boiler Type: Medium-Pressure Steam Boiler
• Certification: UL Listed Gas-Fired Boiler Assembly
• Safety Controls: Primary Safety Controls with "GD" Integral Group
