2006 Hurst S5-X-150-150

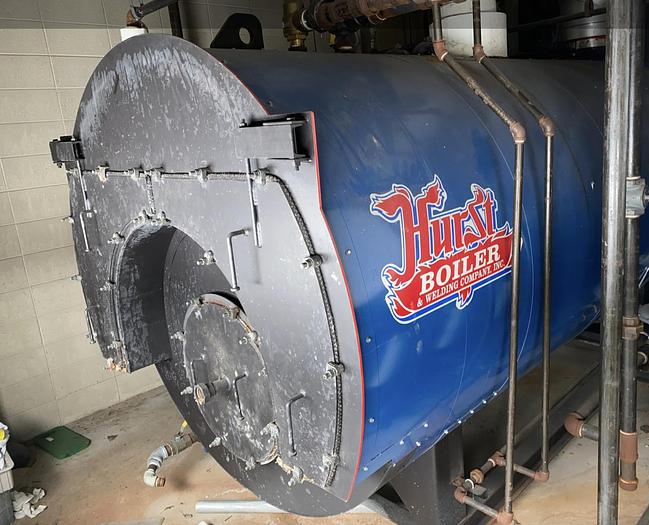

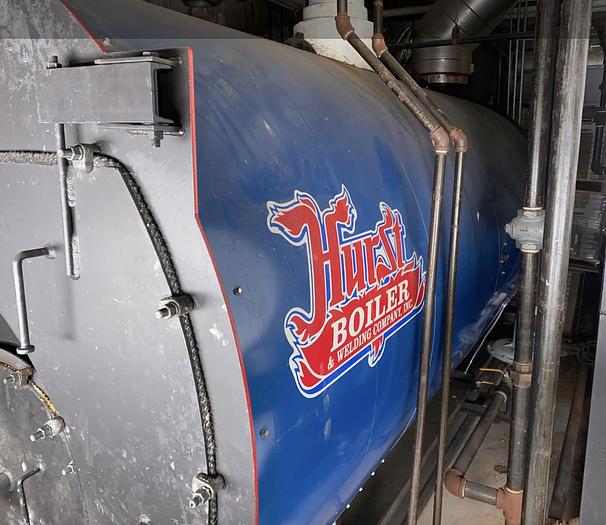

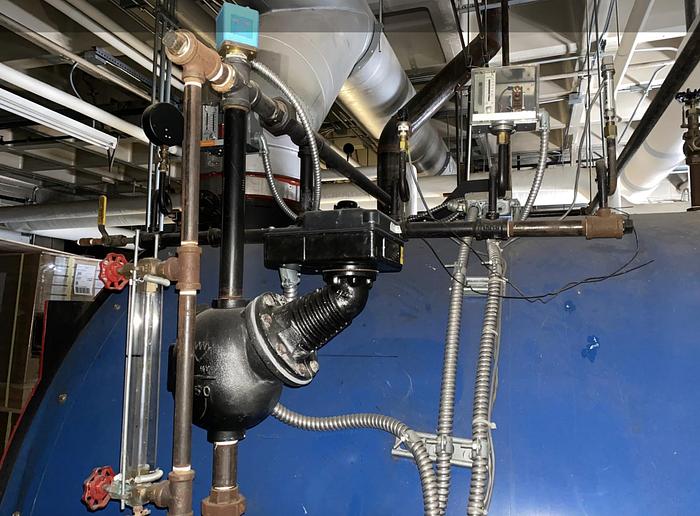

This is a Hurst 150 HP 150 PSI Steam Boiler High-Pressure Steam

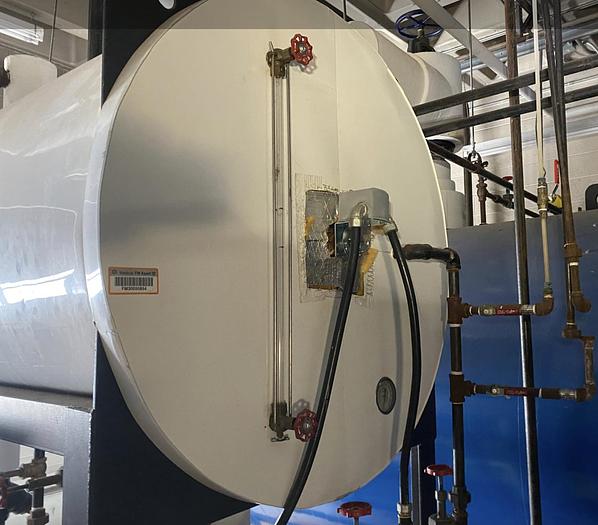

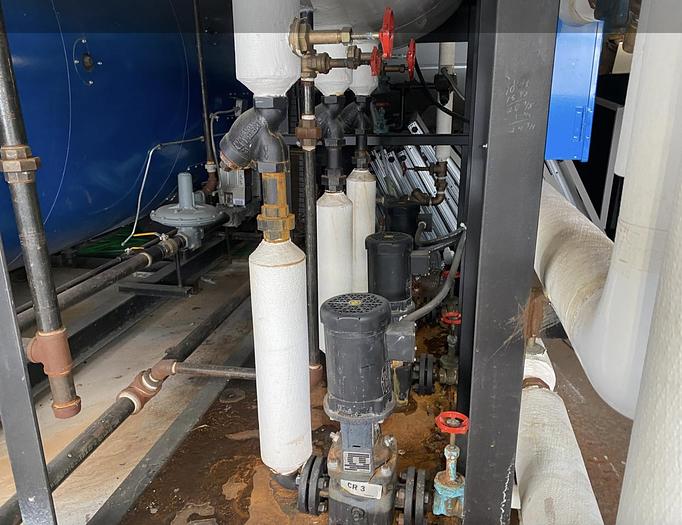

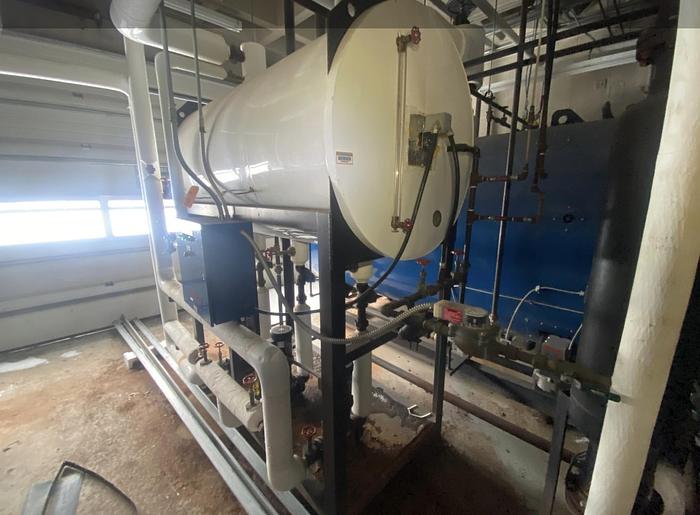

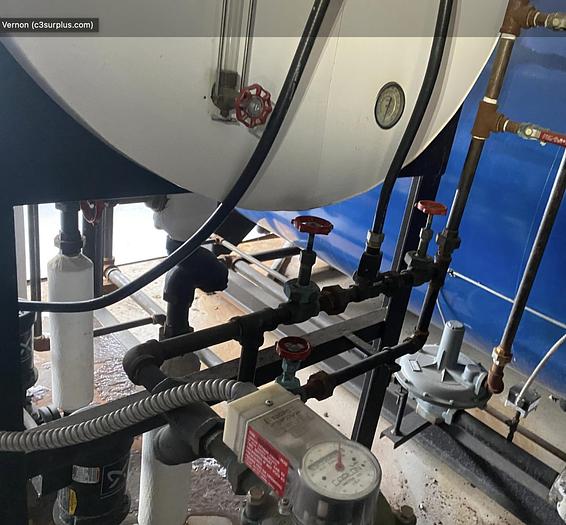

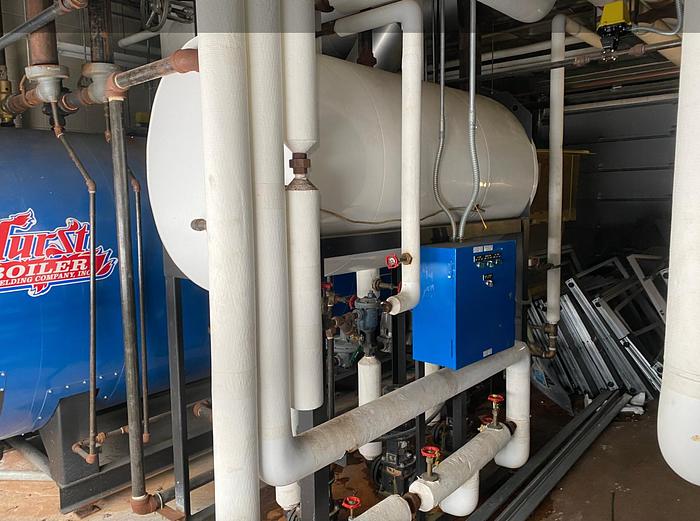

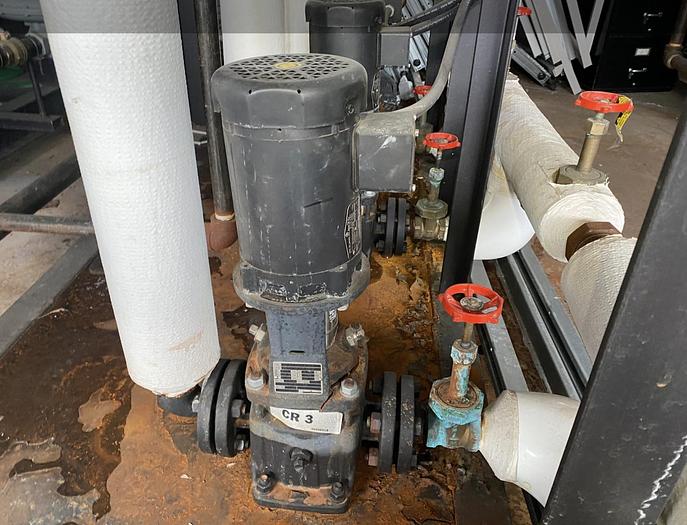

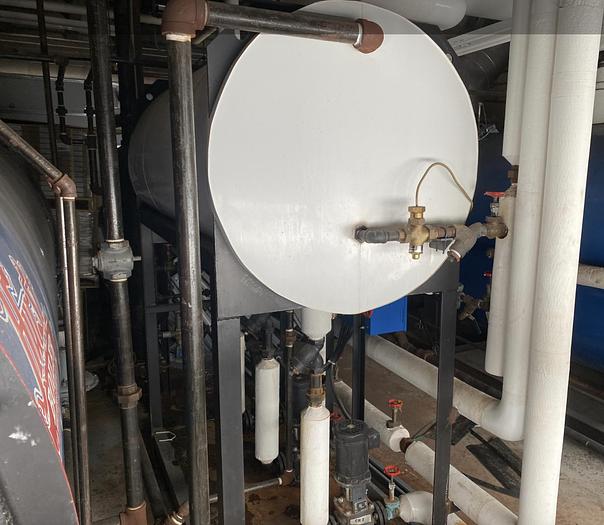

The boiler also has a duel pump system feedwater tank.

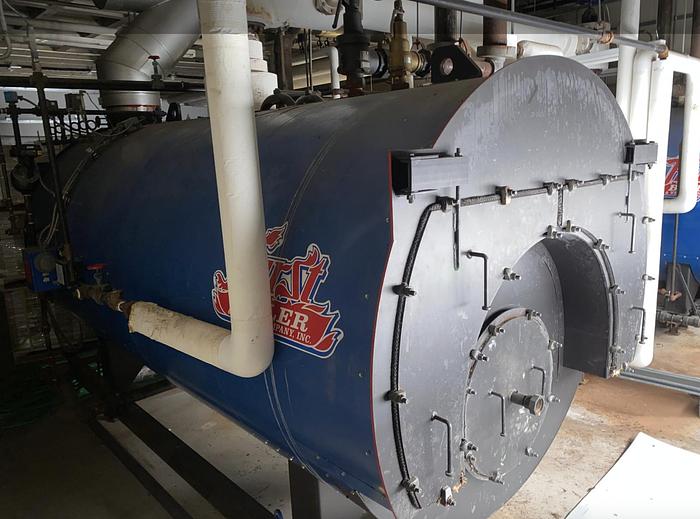

The Hurst Boiler Model S5-X-150-150 is part of the Series 500 Scotch Marine Boilers, known for their four-pass wetback design, which enhances fuel efficiency and simplifies maintenance by eliminating the need for large refractory rear doors. ​

Key Specifications:

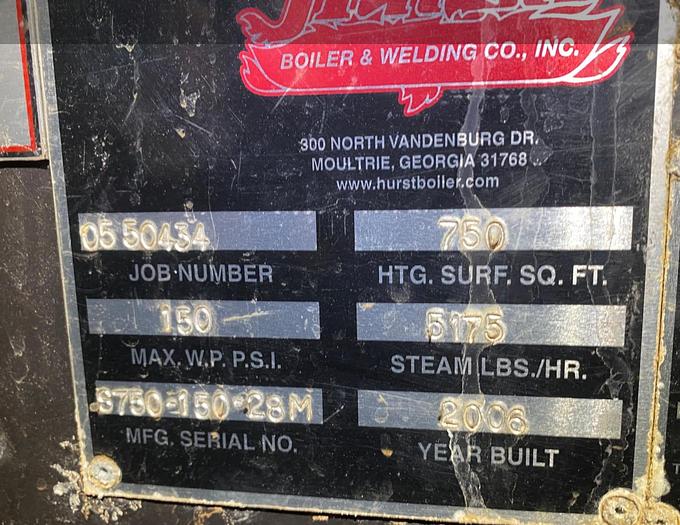

• Boiler Horsepower: 150 HP​
• Steam Output: Approximately 5,175 lbs/hr
• Design Pressure (MAWP): 150 PSIG​
• Heating Surface: 750 sq ft

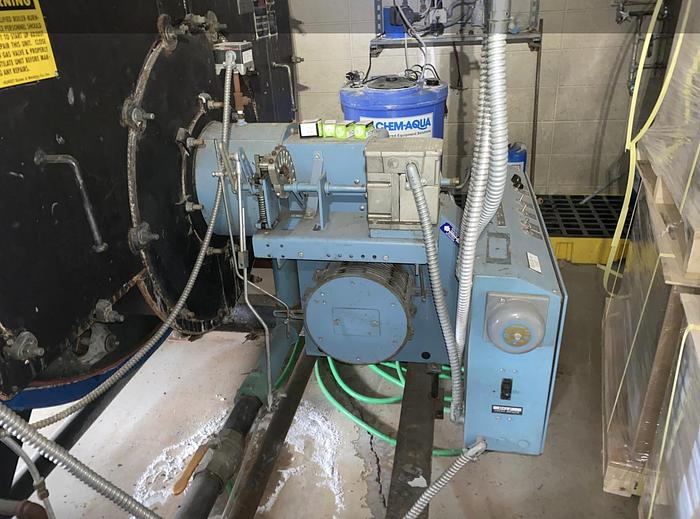

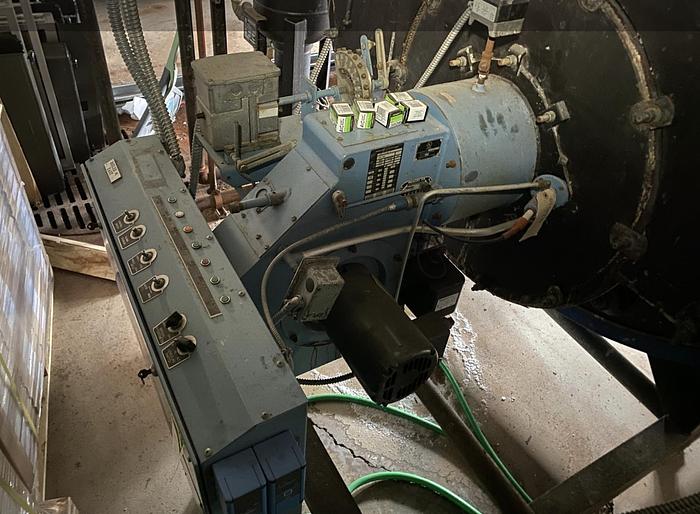

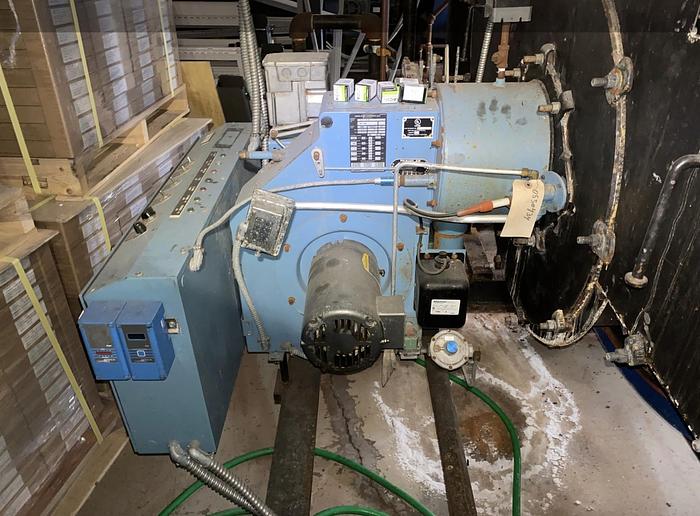

• Firing Rate: Natural Gas: 18,000,000 BTU/hr
• Natural Gas

Standard Features:

• Construction: Built in accordance with the ASME Code, ensuring durability and compliance with industry standards.​
• Efficiency: The four-pass wetback design promotes superior internal water circulation and rapid heat absorption, leading to higher fuel efficiencies compared to traditional four-pass designs.​

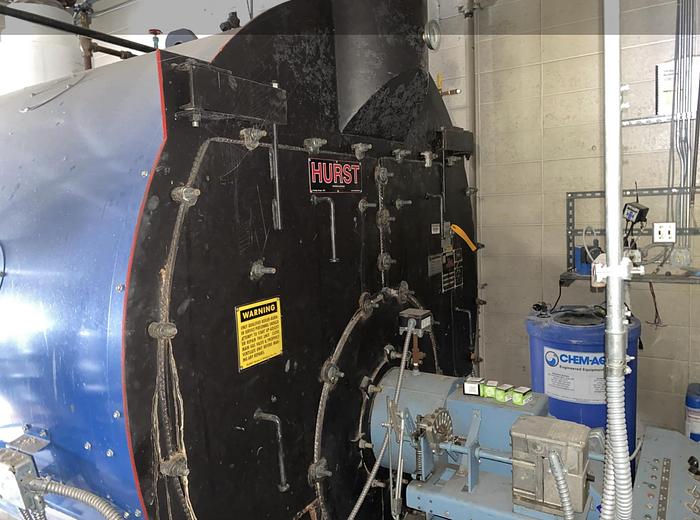

• Maintenance: Front doors can be opened without removing burner components or controls, allowing single-technician access to all tubes for straightforward maintenance.​
• Fuel Compatibility: Designed to operate efficiently on natural gas and #2 fuel oil, providing flexibility based on fuel availability and cost.​

Dimensions and Weight:

• Overall Length: Approximately 16' 3"​
• Overall Width: Approximately 8' 6"​
• Overall Height: Approximately 8' 0"​
• Shipping Weight: Approximately 25,000 lbs​

These specifications make the Hurst Model S5-X-150-150 suitable for various commercial and industrial applications, offering reliable steam generation with efficient fuel usage.
