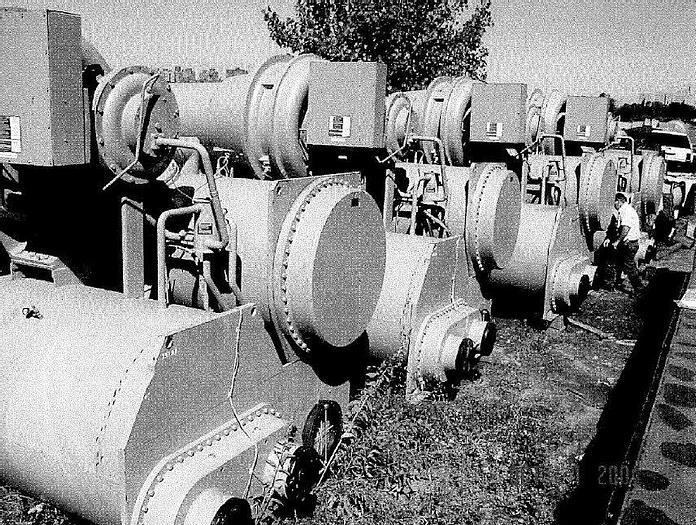

Trane CVHF910 CenTraVac 910 Ton Centrifugal Water Chiller

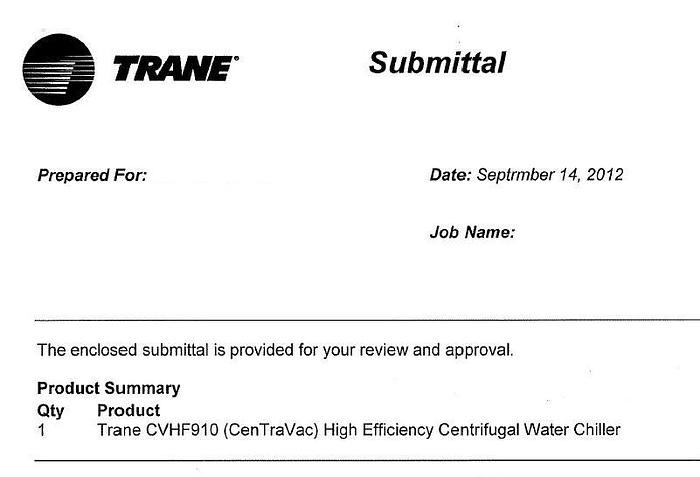

Product Data - Centrifugal Water Chiller

Item: A1 Qty:1 Tag(s): CVHF910 Stock Delivery

CVHF Centrifugal liquid chiller with 2 stage compressor

HCFC-123 refrigerant (1700 lb. charge)

Compressor size: 910 nominal tons

Compressor hertz: 60

Compressor voltage: 460 volt 3 phase 60 hz

Compressor motor power: 588 kW

Compressor impeller cutback: 270

Economizer: Single stage standard

Standard cooling Evaporator shell size: 142 long high efficiency

Evaporator tubes: 0.75 inch (19.1 mm) dia. internally enhanced copper

Evaporator tube wall: .028 inch (0.7 mm) thick

Evaporator fluid type: Water

Evaporator waterbox type: Non-marine

Evaporator waterbox construction: Standard

Evaporator waterbox passes: Two pass

Evaporator waterbox pressure: 150 psig (1034 kPa)

Evaporator waterbox connection: Flanged

Evaporator waterbox arrangement: in RH end - out RH end

Condenser shell size: 142 long high efficiency

Condensertube: 0.75 inch (19.1 mm) internally enhanced copper

Condenser tube wall: .035 inch (0.9 mm) thick

Condenser shell construction: Standard

Condenser fluid type: Water

Condenser waterbox type: 2 pass marine

Condenser waterbox construction: Standard

Condenser waterbox pressure: 150 psig (1034 RPa)

Condenser waterbox connection: Flanged

Condenser waterbox arrangement: in LH front - out LH front

Orifice size: 1100 nominal tons

Agency listing: U.L. listed unit

Shipping package: Domestic

ASH RAE 90.1-1999 certified

Operating Status

Generic BAS

Supplied Refrigerant

Starter maximum RLA: 606 Amps

Starter power connection: Circuit Breaker

Starter power connection maximum RLA: 606 Amps

---------------------------------------------------------------------

Shipping Weight: 35,768 lbs.

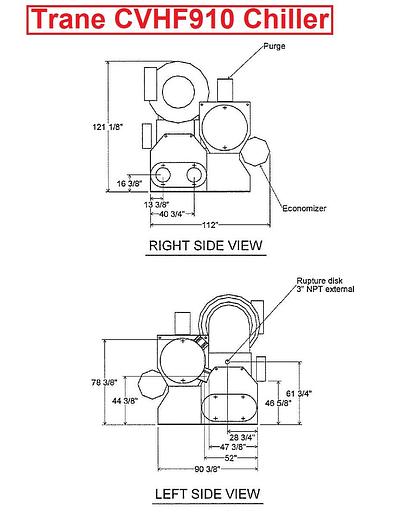

Overall Dimensions: 223-1/4"L x 121-1/8"H x 112"W

C392021-M527
