Skyplume SW-800-6X27° BIFC Industrial Exhaust Fan with Vertical Discharge Stack (2021)

Overview

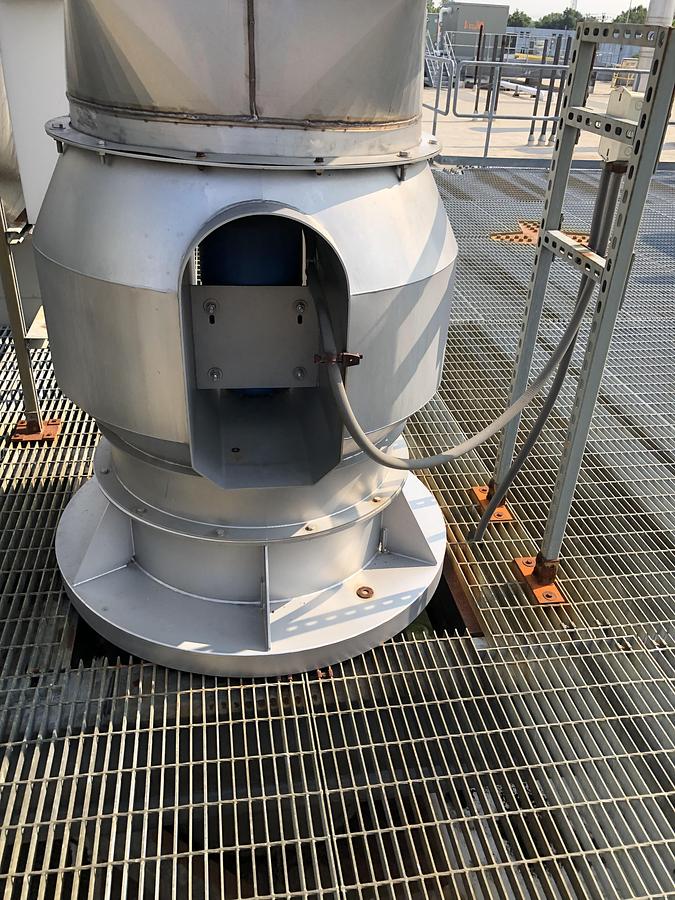

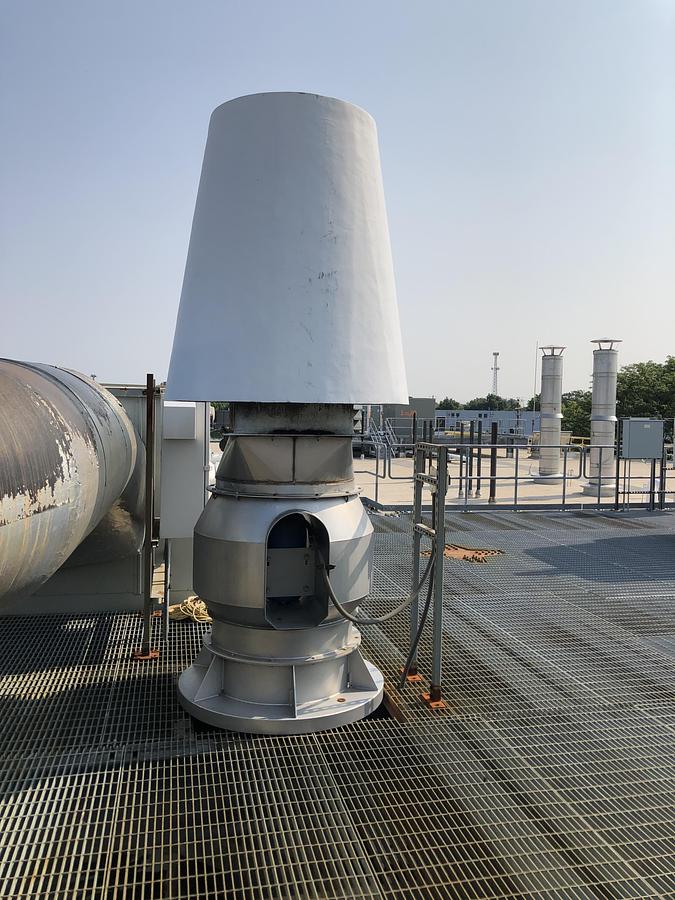

This used Skyplume industrial exhaust fan is a complete ventilation system featuring a heavy-duty centrifugal fan with integrated vertical discharge stack. Manufactured by Plasticair Inc. using patented Skyplume Technologies, this unit combines North American engineering with a complete airway system for optimal exhaust dispersion. This is a complete system including fan, motor, vertical stack, and electrical disconnect.

Design and Performance

• Manufacturer: Plasticair Inc. / Skyplume Technologies
• Model: SW-800-6X27° BIFC
• Type: Centrifugal Fan with Vertical Discharge
• Origin: Canada
• Motor: Rotor NL Industrial Motor (Blue)
• Construction: Heavy-duty galvanized steel with integrated exhaust stack
• Patent Protected: Multiple Canadian and US Patents

Key Specifications

• Condition: Used - Commercial Grade
• Performance Data:Motor Specifications: IE3C rated
• Power: 240V
• Category: B
• Position: LG 0
• Mass: 240 kg
• Order Number: 220210175-011-004
• Year: 2021
• ErP 2015 Compliant: Yes
• System Components:Centrifugal fan housing with access door
• Rotor NL industrial motor (blue)
• Vertical discharge stack with conical rain cap
• Star-pattern base mounting system
• Complete electrical disconnect panel
• Flexible conduit connections
• Variable Speed Drive: Not included
• CE Certified: Yes

Safety Features

• CE certification for European safety standards
• Multilingual safety warnings
• Rotating machinery hazard warnings
• Weather-protected vertical discharge
• Industrial-grade construction
• Complete with safety guarding
• Electrical disconnect with warning labels
• ECODESIGN 2009/125/EC compliant

Ideal Applications

• Industrial Process Exhaust
• Chemical Fume Extraction
• Manufacturing Facility Ventilation
• Vertical Plume Discharge Requirements
• High-Temperature Exhaust Systems
• Odor Control Applications
• Laboratory Exhaust Systems
• Paint Booth Exhaust
• Rooftop Applications Requiring Stack Effect

Benefits

• Complete exhaust system ready for installation
• Vertical discharge for optimal air dispersion
• North American quality construction (Skyplume)
• Patented technology for enhanced performance
• Recent manufacture (2021)
• Weather-resistant vertical stack design
• Reduced ground-level concentration
• CE certified for safety
• Proven industrial motor reliability
• Star-pattern base for stable mounting

Additional Information

• Construction Features:
• Galvanized steel housing construction
• Tall vertical discharge stack (conical design)
• Weather-resistant rain cap protection
• Heavy-duty star-pattern base mount
• Access door for maintenance
• Flexible electrical connections
• Vibration isolation design
• Rooftop-ready installation
• Included Components:
• Skyplume centrifugal fan unit
• Rotor NL industrial motor (blue)
• Complete vertical exhaust stack
• Conical rain cap/weather protection
• Star-pattern mounting base

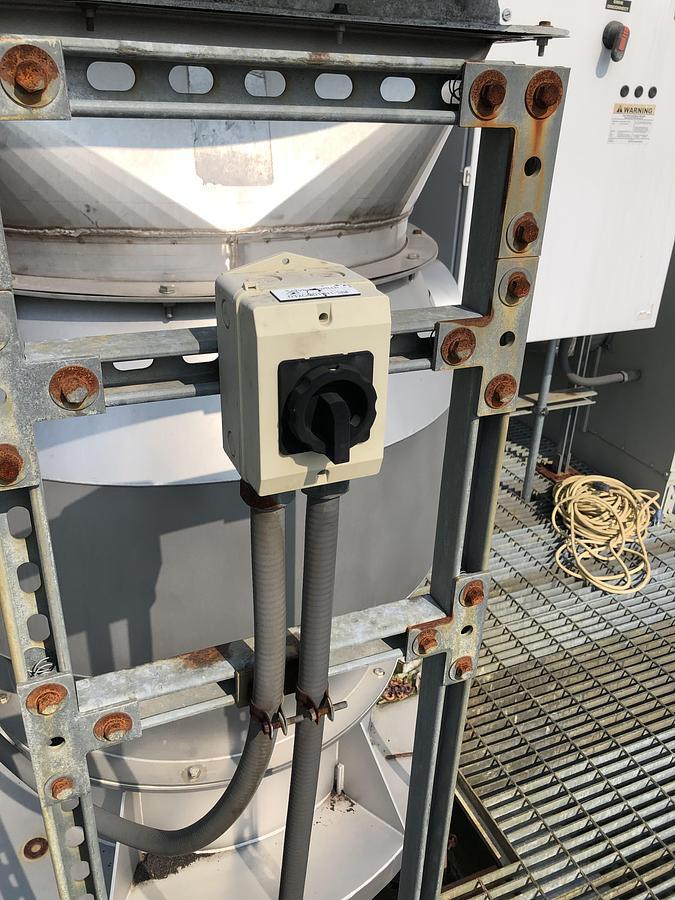

• Electrical disconnect panel
• Flexible conduit connections
• All mounting hardware
• Stack Features:
• Vertical discharge design
• Weather-resistant construction
• Single-piece conical cap
• Integrated support structure
• Optimized for plume dispersion
• Galvanized finish
• Service Features:

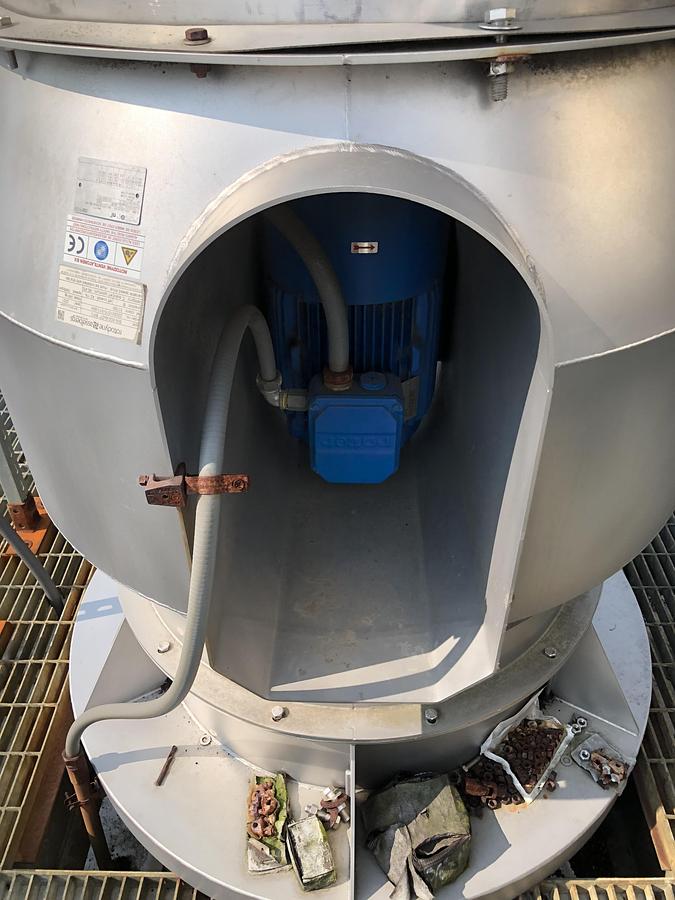

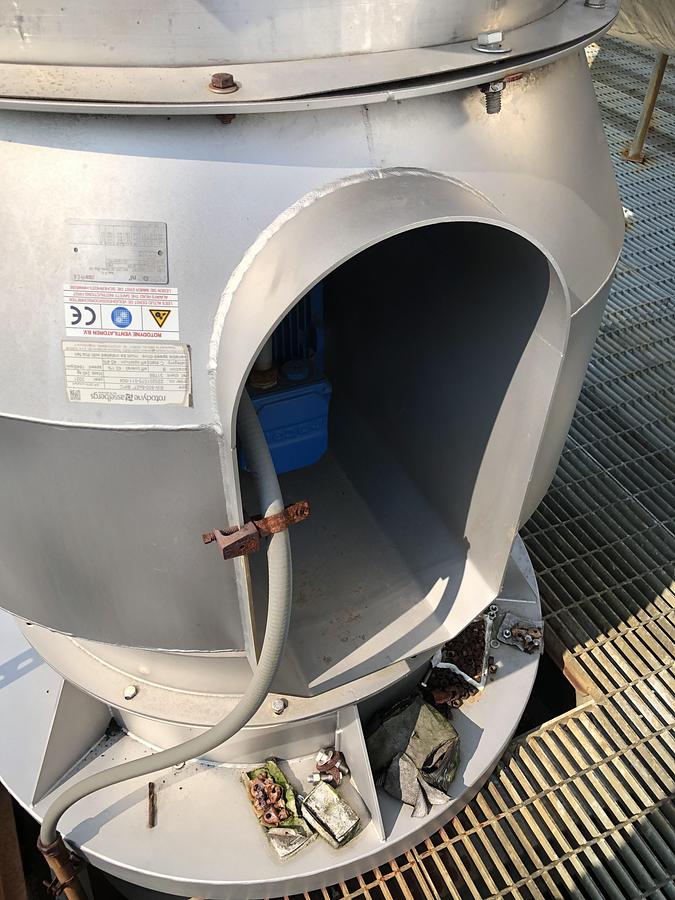

• Access door on fan housing
• Accessible motor location
• Standard electrical connections
• Modular design for maintenance
• QR code for digital documentation
• ErP 2015 efficiency compliance

Technical Details from Images

• Motor: Rotor NL (visible blue housing)

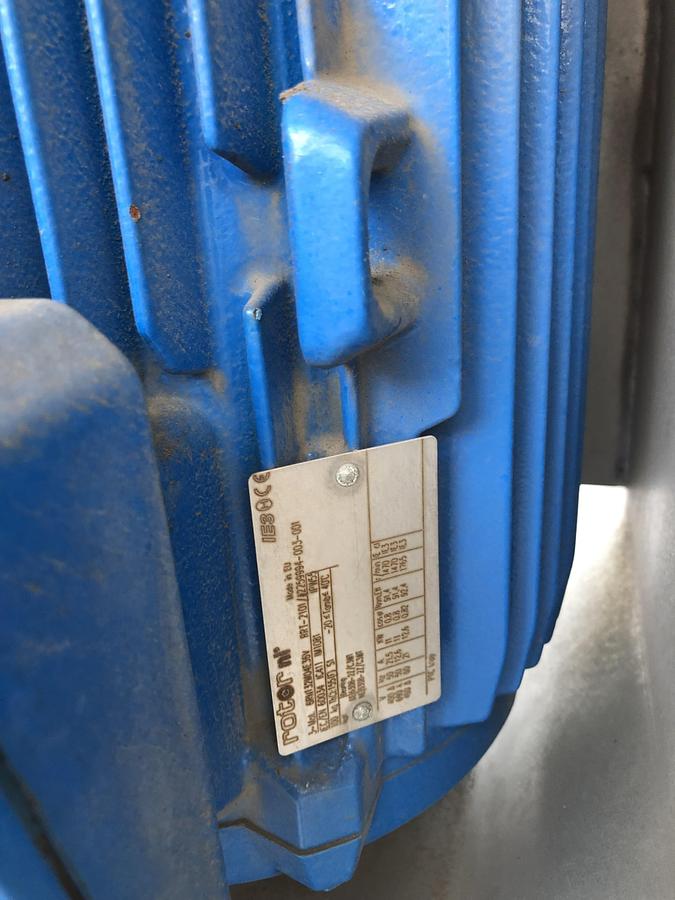

• Motor Details:IE3C efficiency rating
• Voltage: 240V
• Configuration: TEFC (Totally Enclosed Fan Cooled)
• Year: 2021
• Configuration: Vertical discharge with conical cap
• Installation: Complete rooftop exhaust system
• Compliance: CE certified, ErP 2015 compliant
