Industrial Ventilation Fan Package - Skyplume Exhaust System & Rotodyne CV-250/400-P16K30

Overview

This package includes two distinct industrial ventilation fans designed for heavy-duty commercial applications. The package consists of a Skyplume vertical discharge exhaust system with tall stack and a Rotodyne/Asselbergs centrifugal fan with premium Siemens IE3 motor. Both units are in used condition and suitable for demanding industrial air movement requirements.

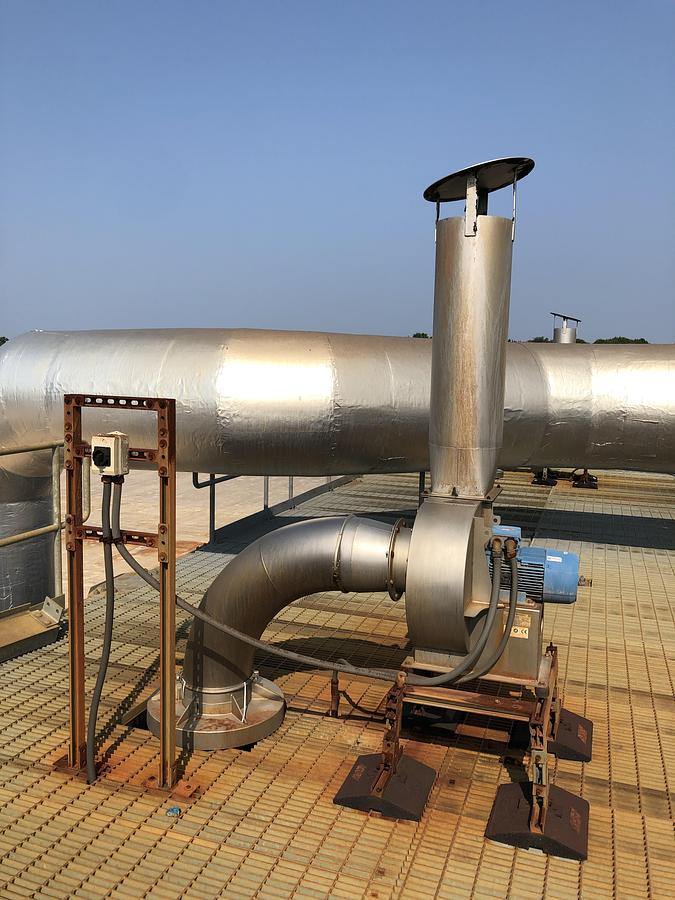

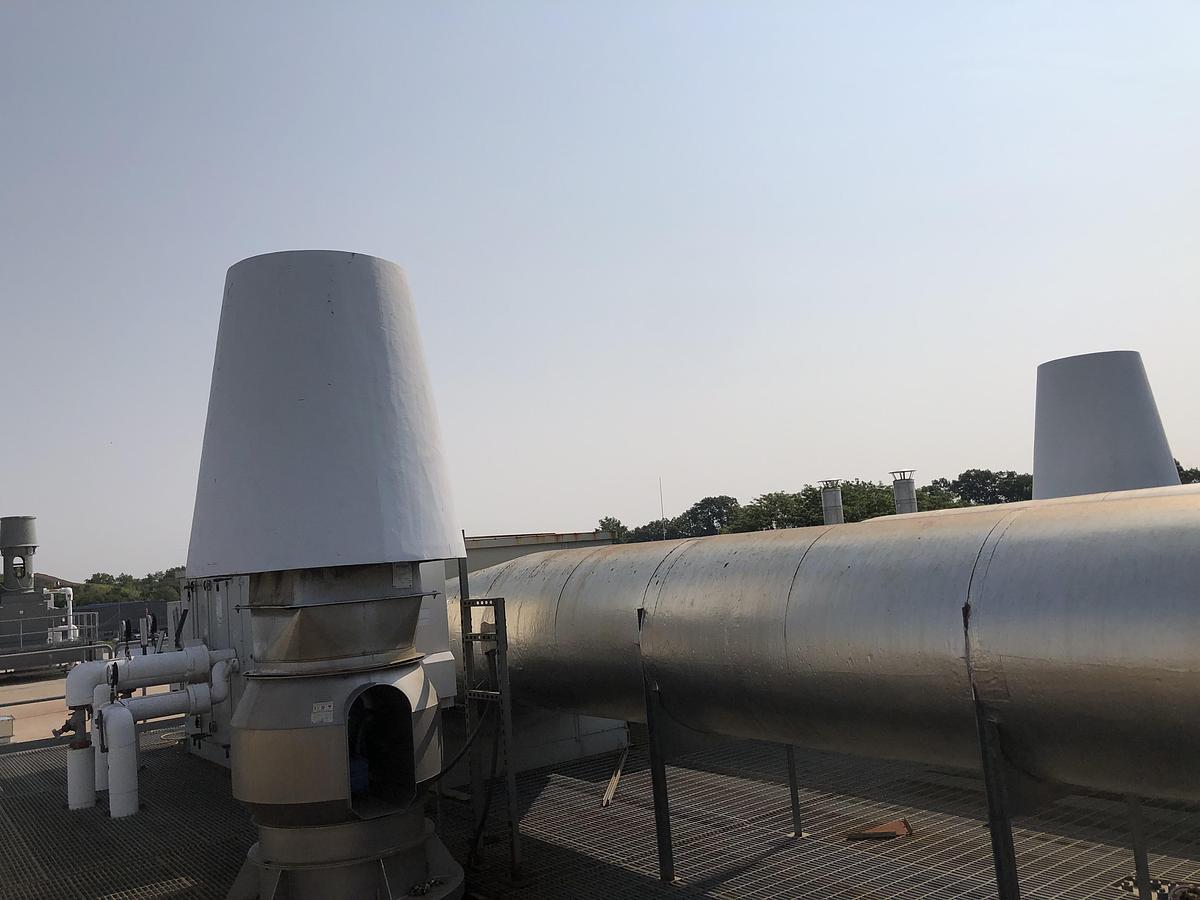

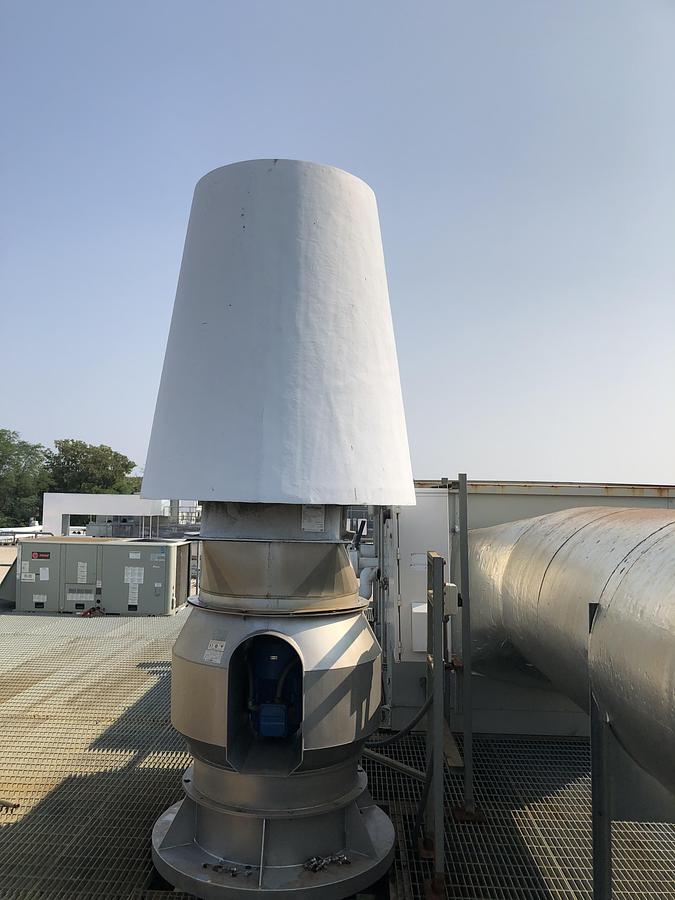

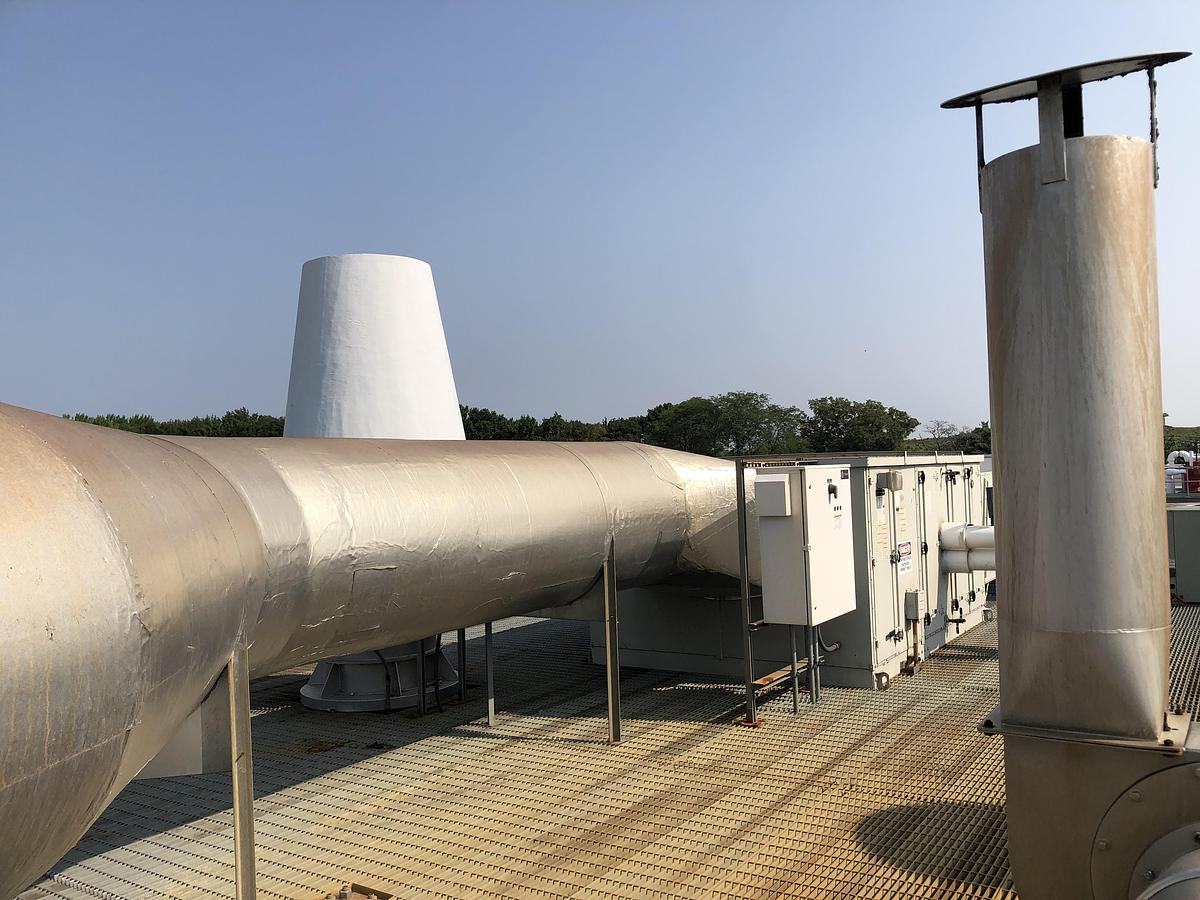

Unit 1: Skyplume Industrial Exhaust Fan with Stack

• Type: Centrifugal exhaust fan with vertical discharge
• Configuration: Belt-driven with external motor
• Construction: Heavy-duty galvanized steel housing and ductwork

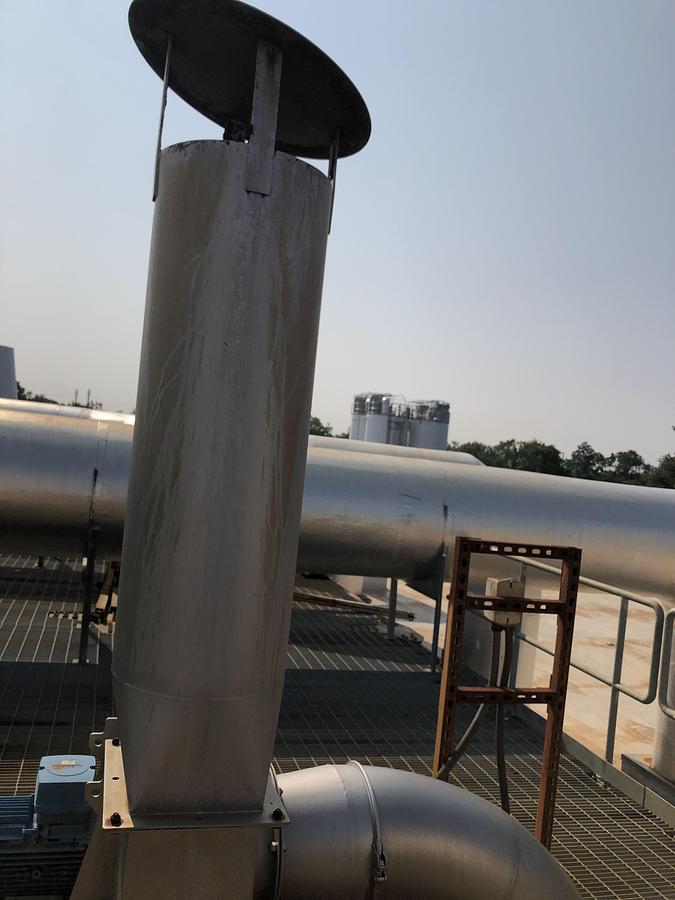

• Stack: Tall vertical exhaust stack with conical weather cap

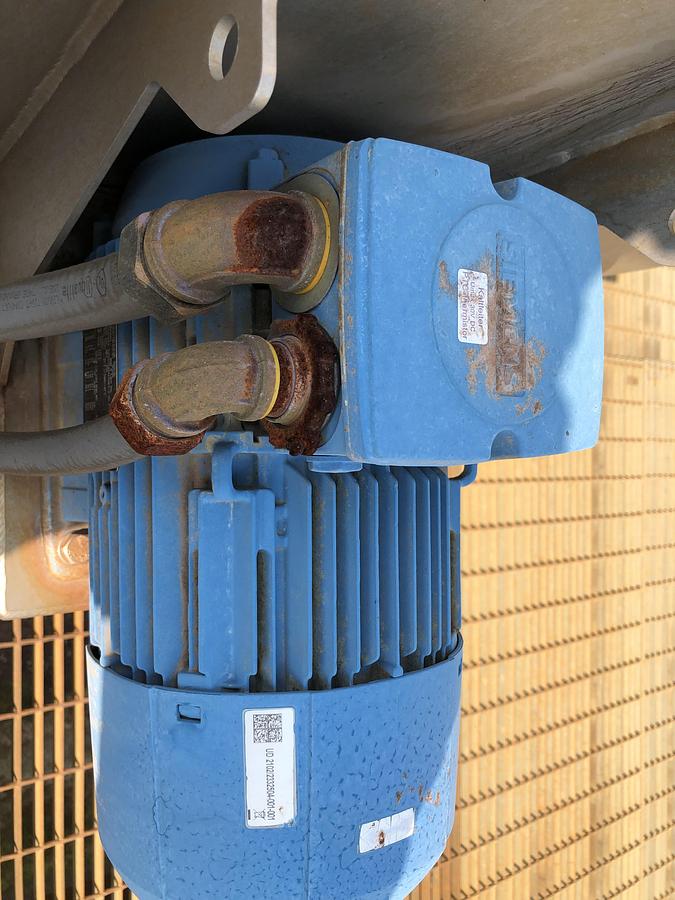

• Motor: Blue industrial motor housing, externally mounted
• Discharge: Vertical upward for optimal plume dispersion
• Mounting: Rooftop installation on structural steel frame

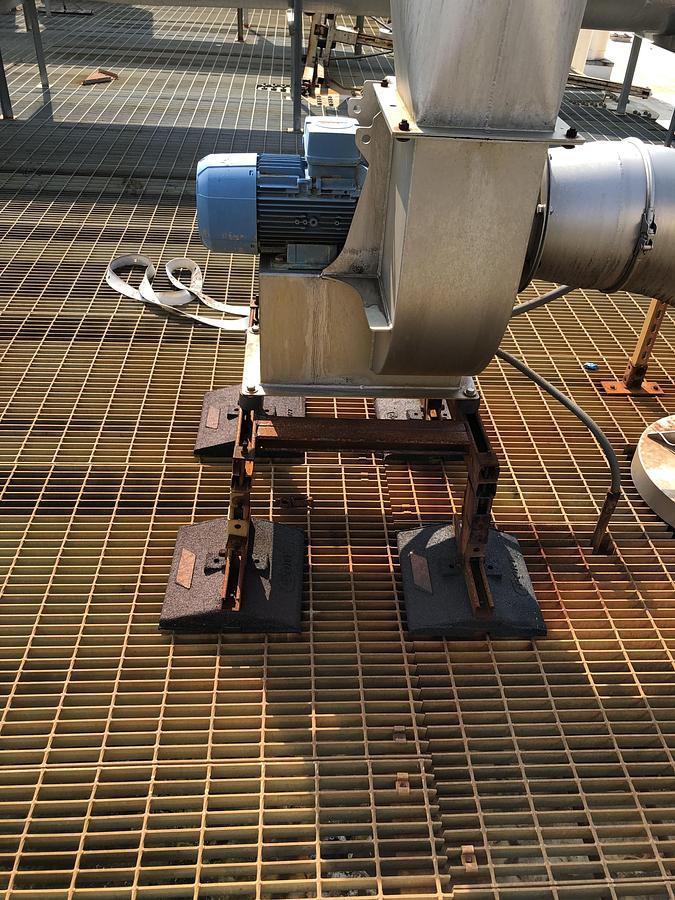

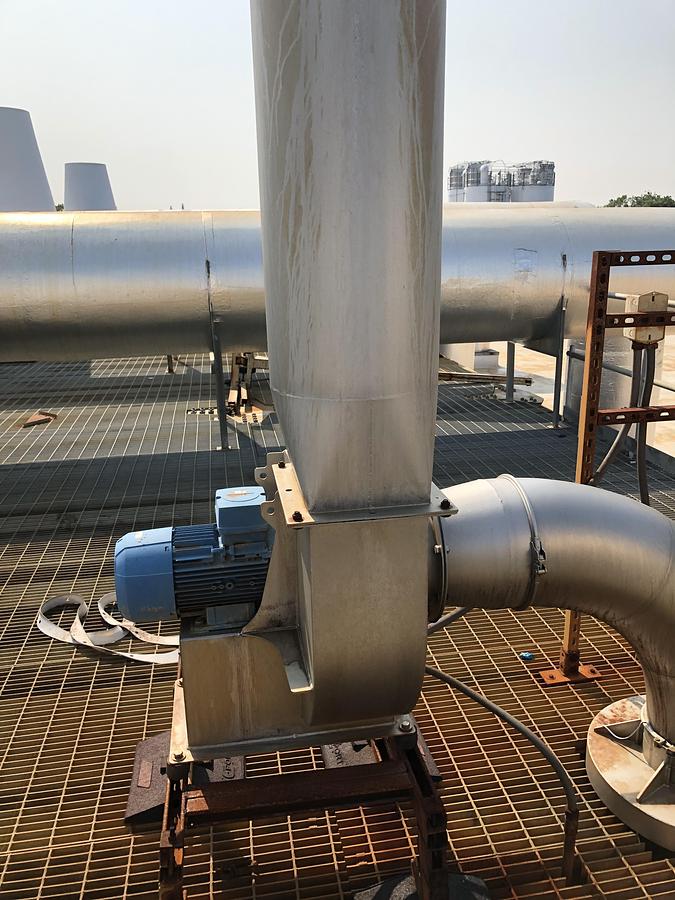

Unit 2: Rotodyne Ventilation Fan CV-250/400-P16K30

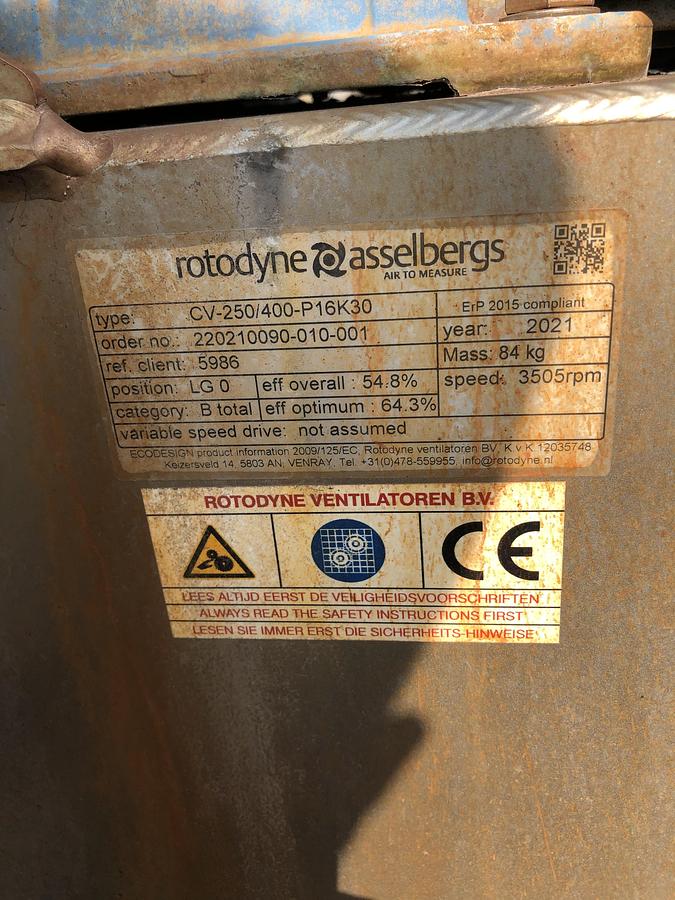

• Manufacturer: Rotodyne Ventilatoren B.V. / Asselbergs
• Model: CV-250/400-P16K30
• Order Number: 220210090-010-001
• Year: 2021
• Origin: Netherlands (Venray)

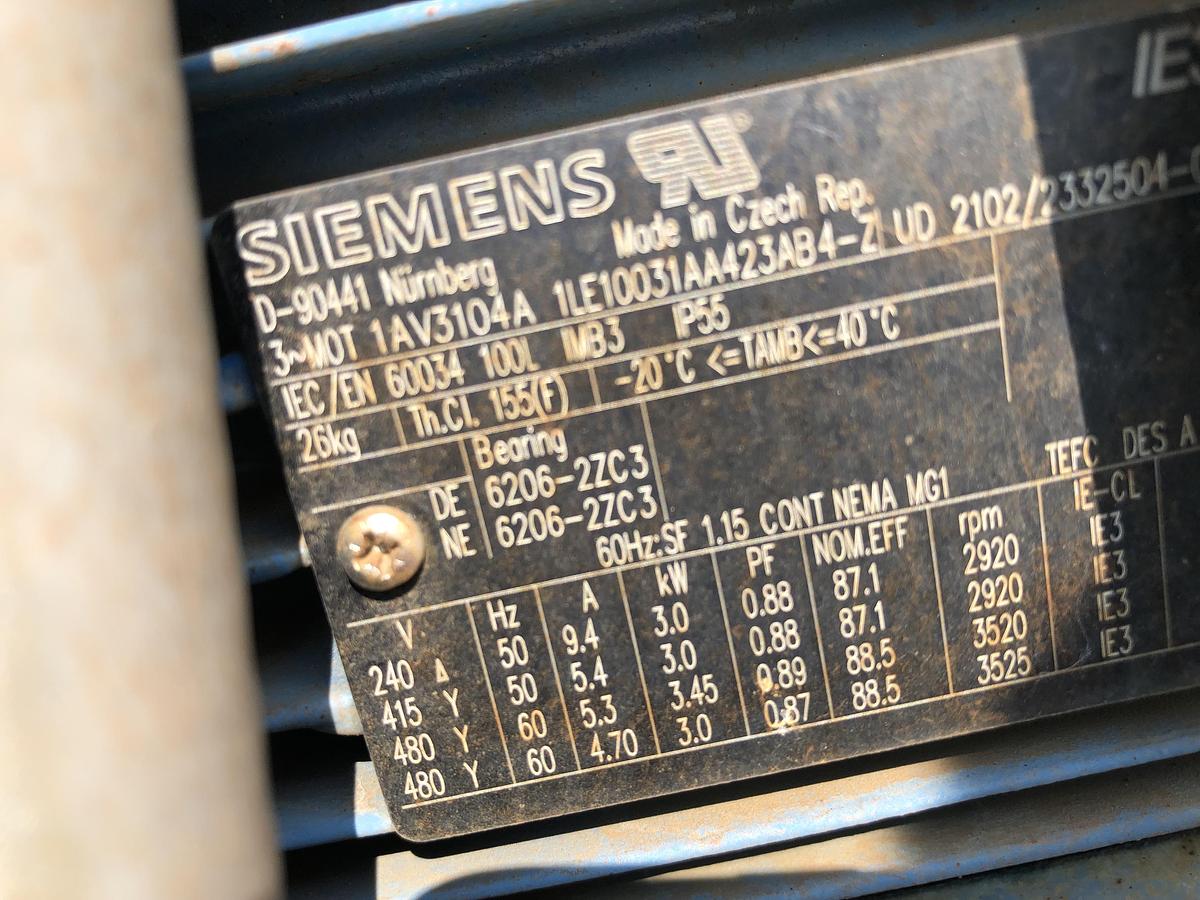

• Motor: Siemens 1AV3104A IE3 High Efficiency
• ErP 2015 Compliant: Yes
• CE Certified: Yes

Combined Specifications

• Condition: Used - Commercial/Industrial Grade
• Total Units: 2 complete ventilation systems

Skyplume System Features:

• Belt-driven configuration
• External motor for easy maintenance
• Tall vertical discharge stack
• Conical rain cap/weather protection

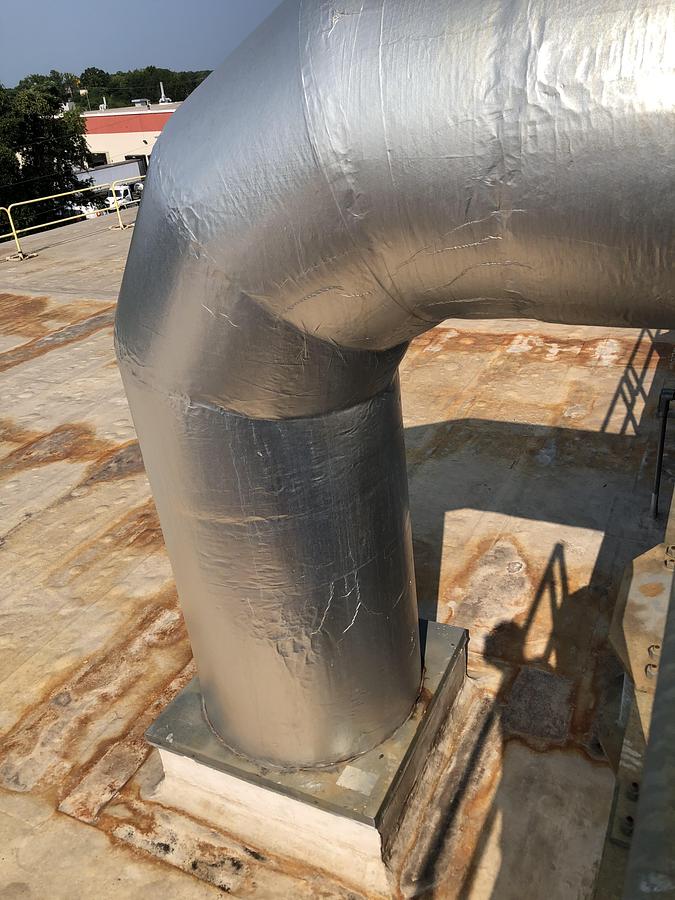

• Insulated stack sections
• Galvanized steel throughout

Rotodyne System Specifications:

• Speed: 3505 RPM
• Overall Efficiency: 54.8%
• Optimum Efficiency: 64.3%
• Mass: 84 kg (185 lbs)

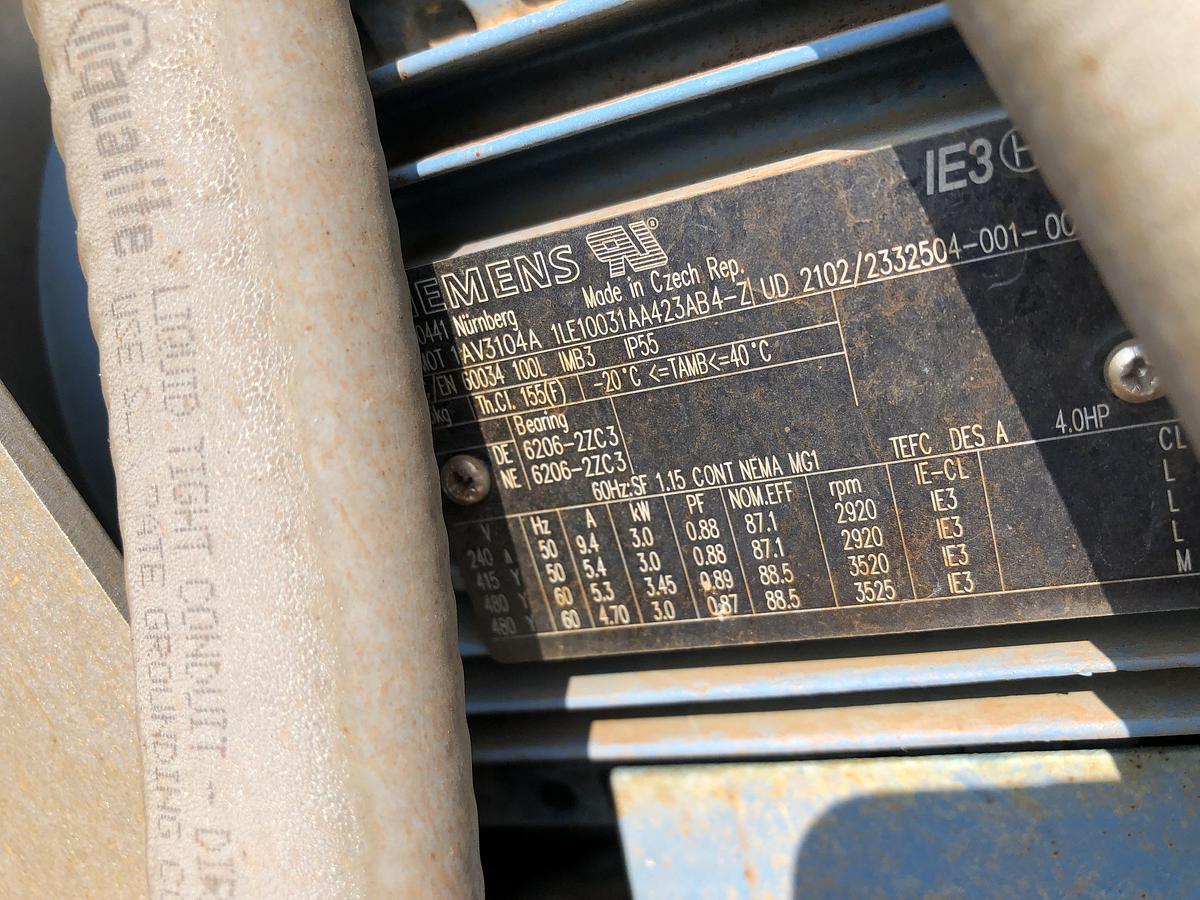

• Siemens IE3 Motor Details:
• Efficiency Class: IE3 (Premium)
• Voltage: 240/415/480V
• Frequency: 50/60 Hz
• Protection: IP55
• Temperature: -20°C to 40°C

Safety Features

• Weather-protected designs
• CE certification (Rotodyne)
• IE3 premium efficiency motor (Rotodyne)
• Industrial-grade construction
• Proper guarding and protection
• Multilingual safety warnings
• ECODESIGN 2009/125/EC compliant

Ideal Applications

• Industrial Process Exhaust
• Chemical Fume Extraction
• Manufacturing Facility Ventilation
• High-Temperature Exhaust Systems
• Laboratory Exhaust Systems
• Paint Booth Exhaust
• Odor Control Applications
• General Building Ventilation
• Energy-Efficient HVAC Systems

Benefits of Package

• Two different ventilation solutions
• Vertical discharge option (Skyplume)
• High-efficiency option (Rotodyne)
• Complete systems ready for installation
• European quality (Rotodyne)
• Recent manufacture (Rotodyne 2021)
• Suitable for various industrial applications
• Weather-resistant construction

Additional Information

Skyplume System Includes:

• Centrifugal fan housing
• External belt-drive motor

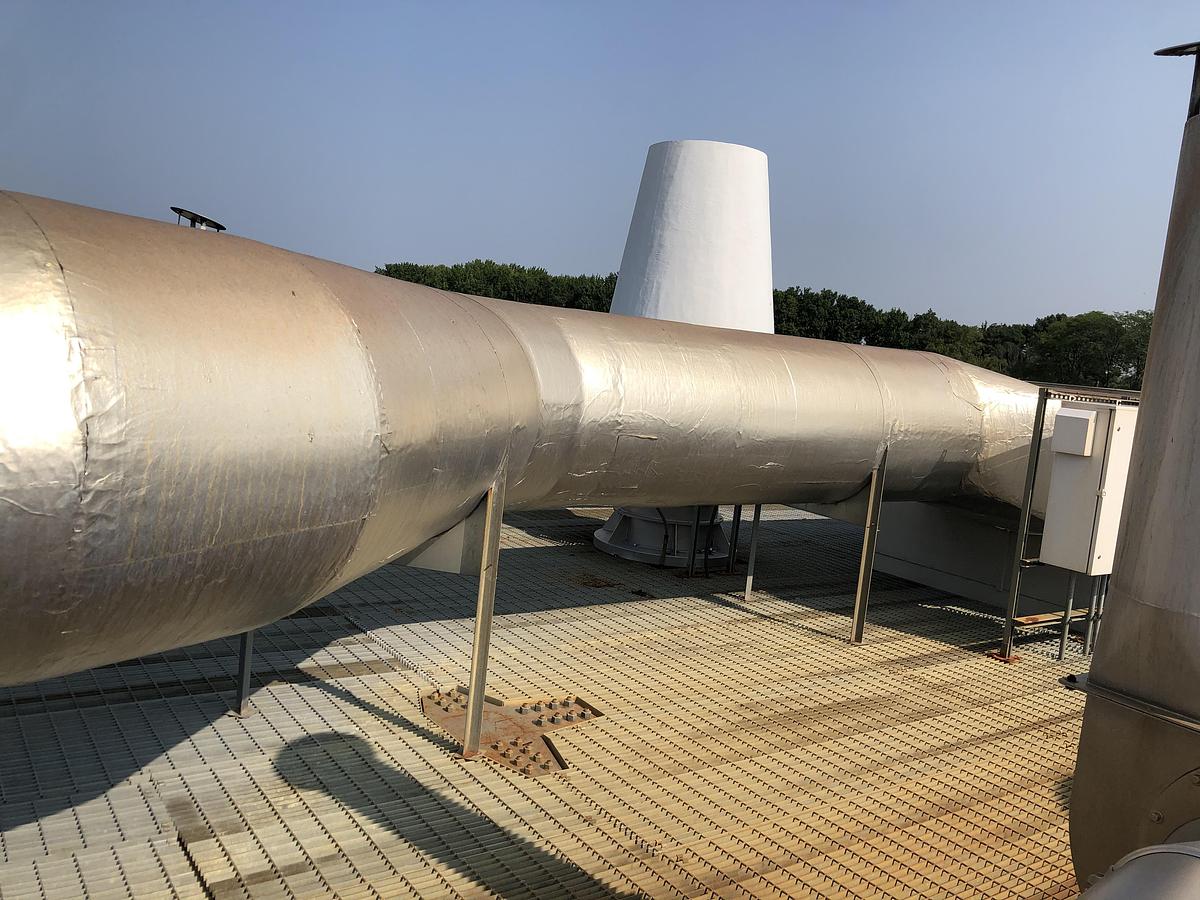

• Vertical exhaust stack
• Conical weather cap
• Mounting framework

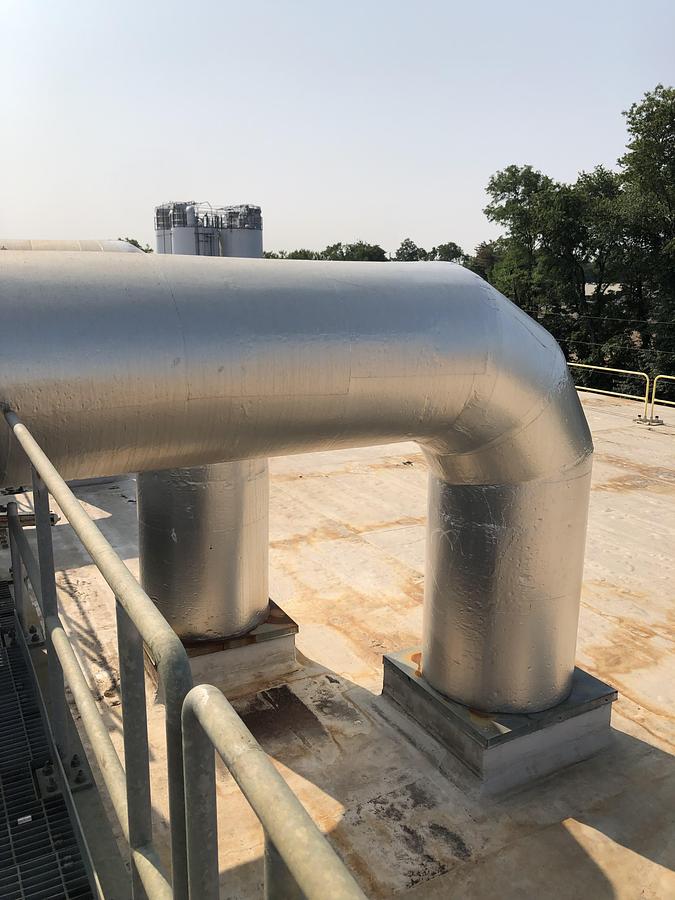

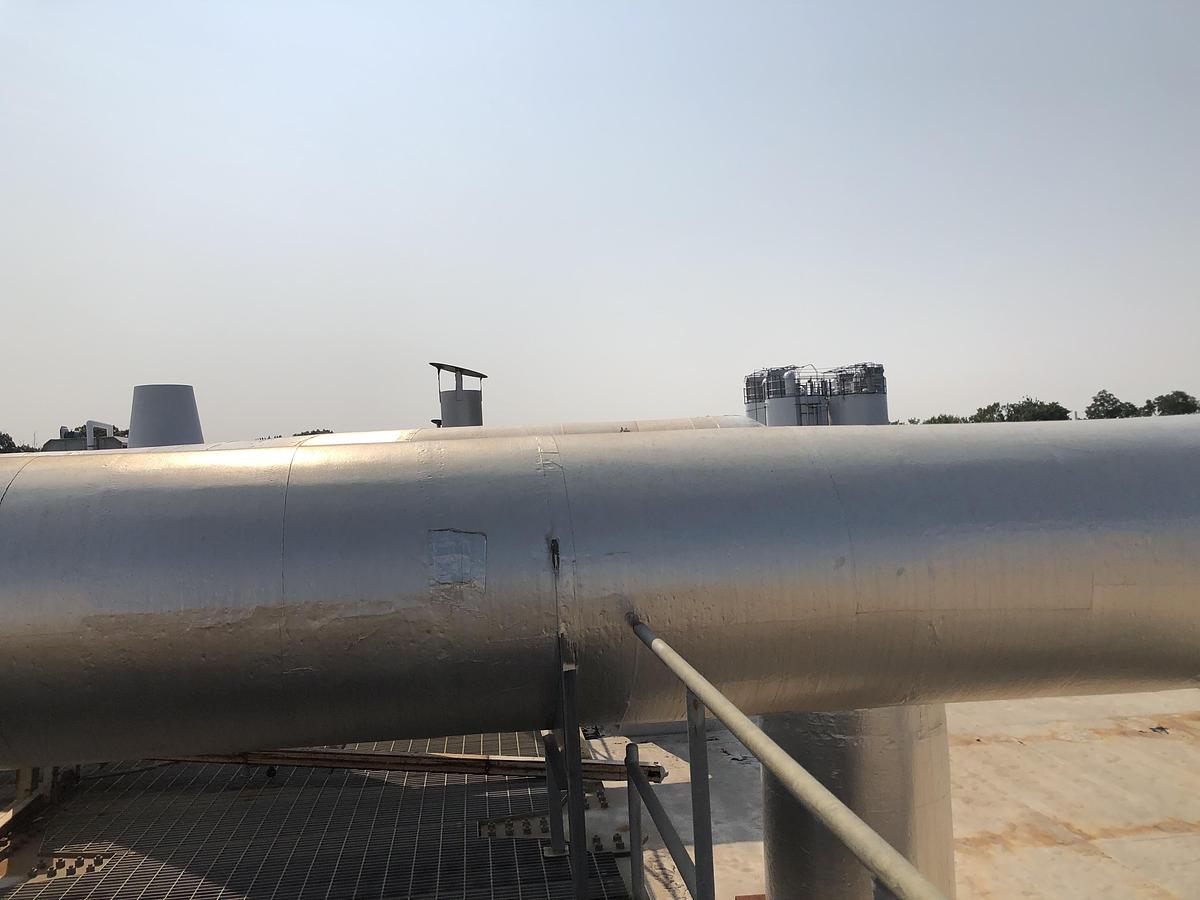

• All visible ductwork

Rotodyne System Includes:

• Direct-drive centrifugal fan
• Siemens IE3 motor
• Spring vibration isolation

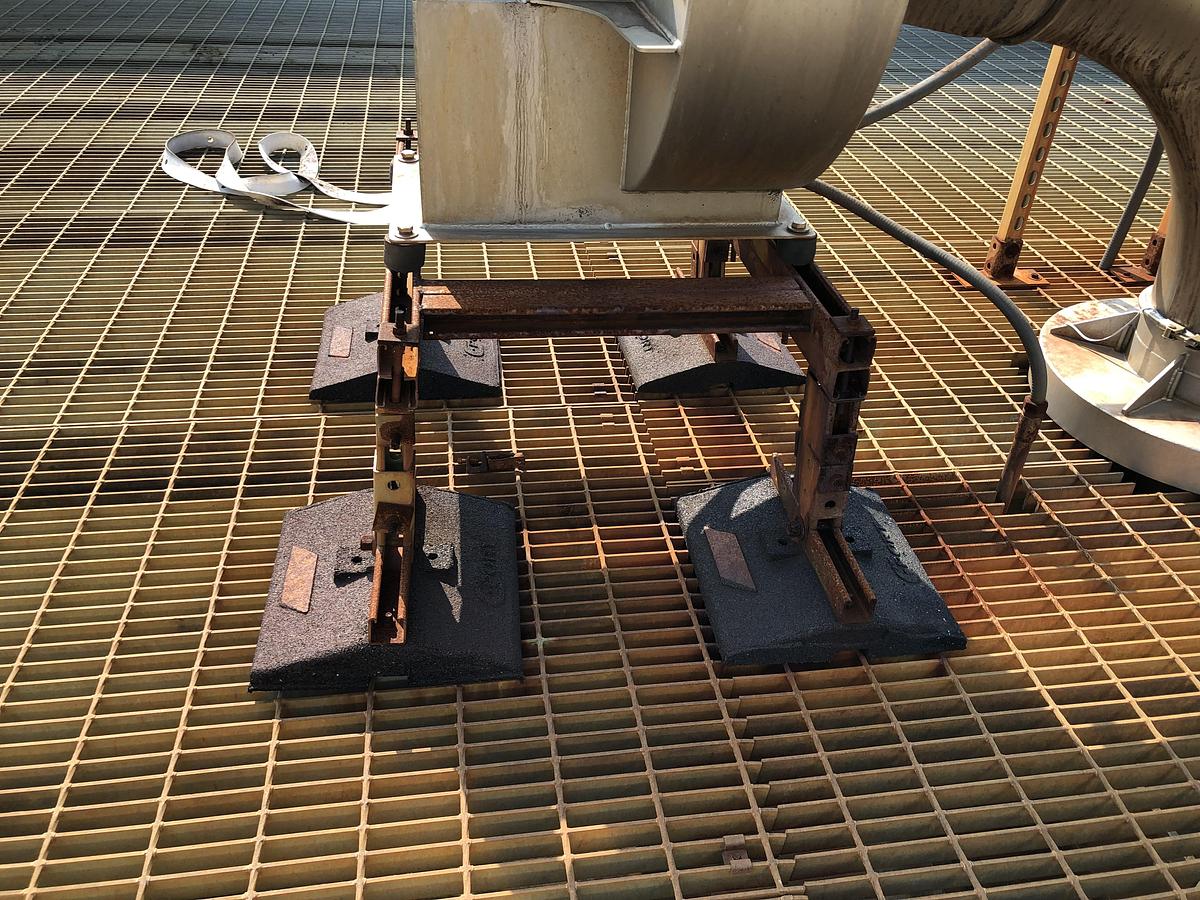

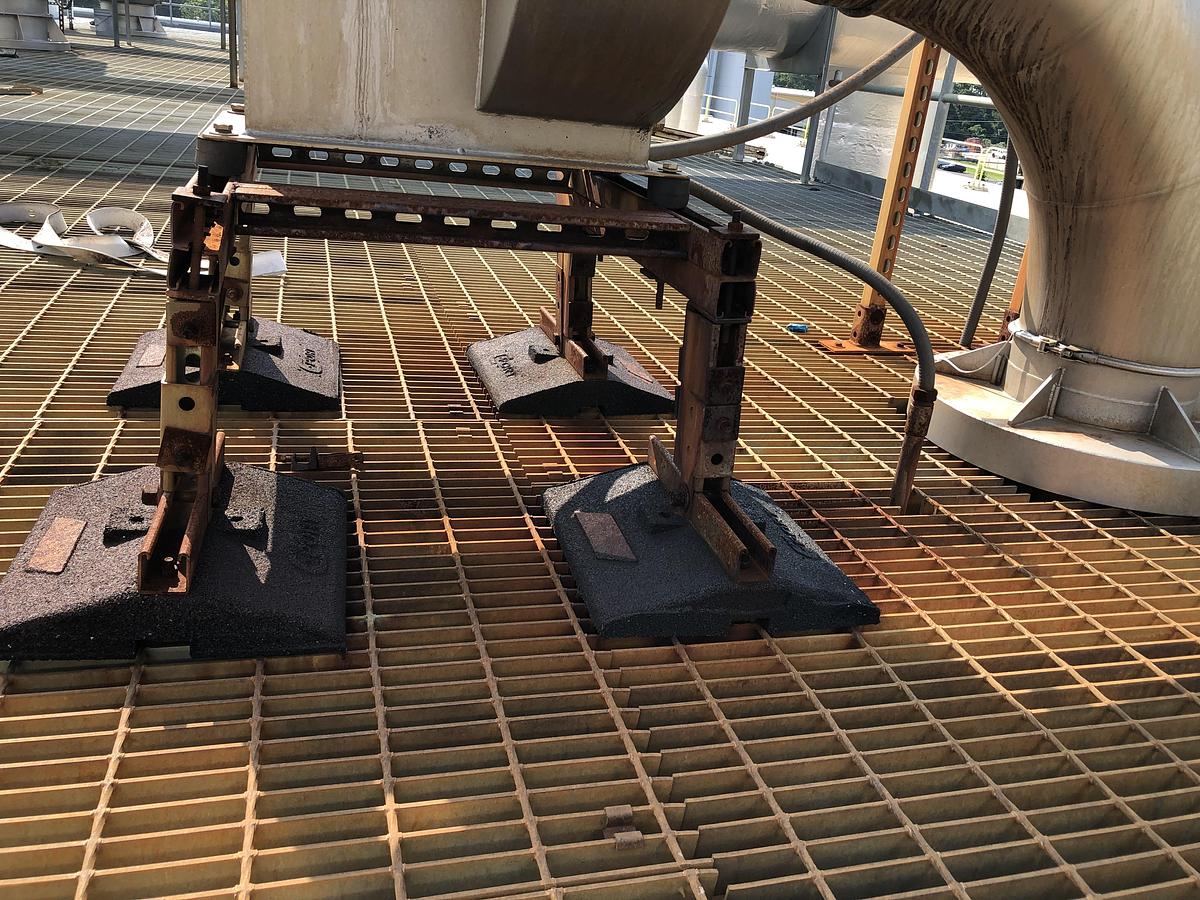

• Mounting frame
• QR code for parts access

Construction Features:

• Industrial-grade materials
• Rooftop mounting ready
• Flanged connections
• Service-friendly designs
• Structural support systems

Technical Summary

• Package Contents: 2 industrial ventilation fans
• Fan 1: Skyplume vertical discharge system with stack
• Fan 2: Rotodyne CV-250/400-P16K30 with Siemens IE3 motor
• Applications: Industrial exhaust and ventilation
• Mounting: Both suitable for rooftop installation
• Condition: Used, commercial/industrial grade
• Compliance: CE marked, ErP 2015 compliant (Rotodyne)
