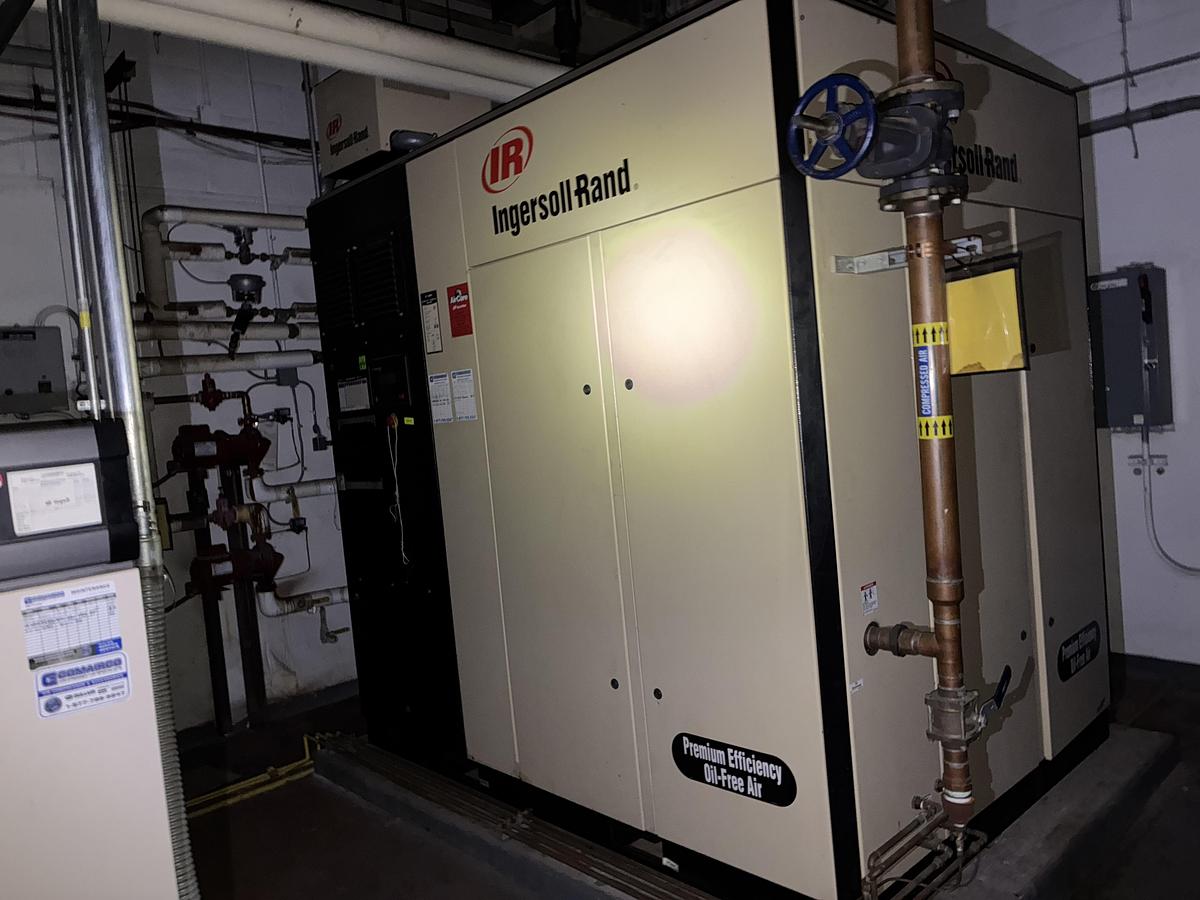

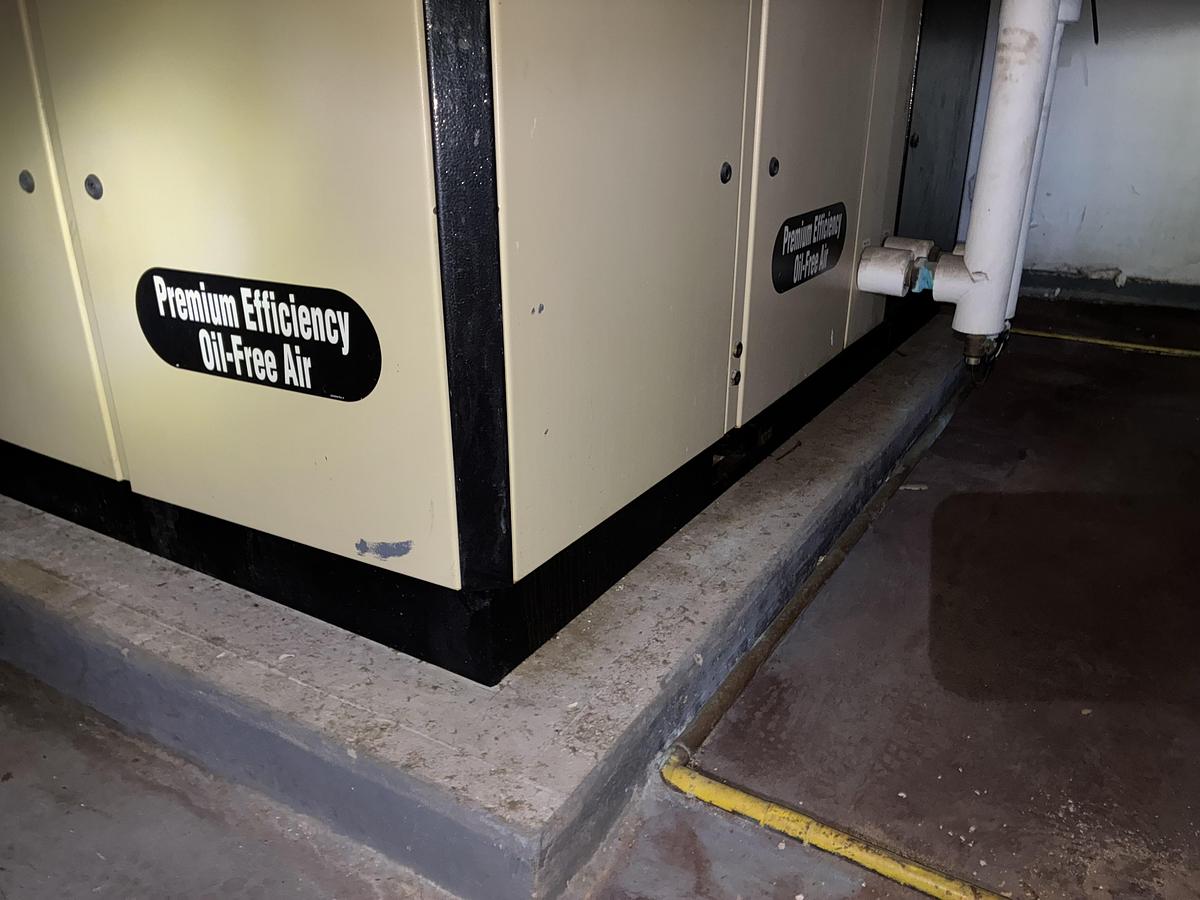

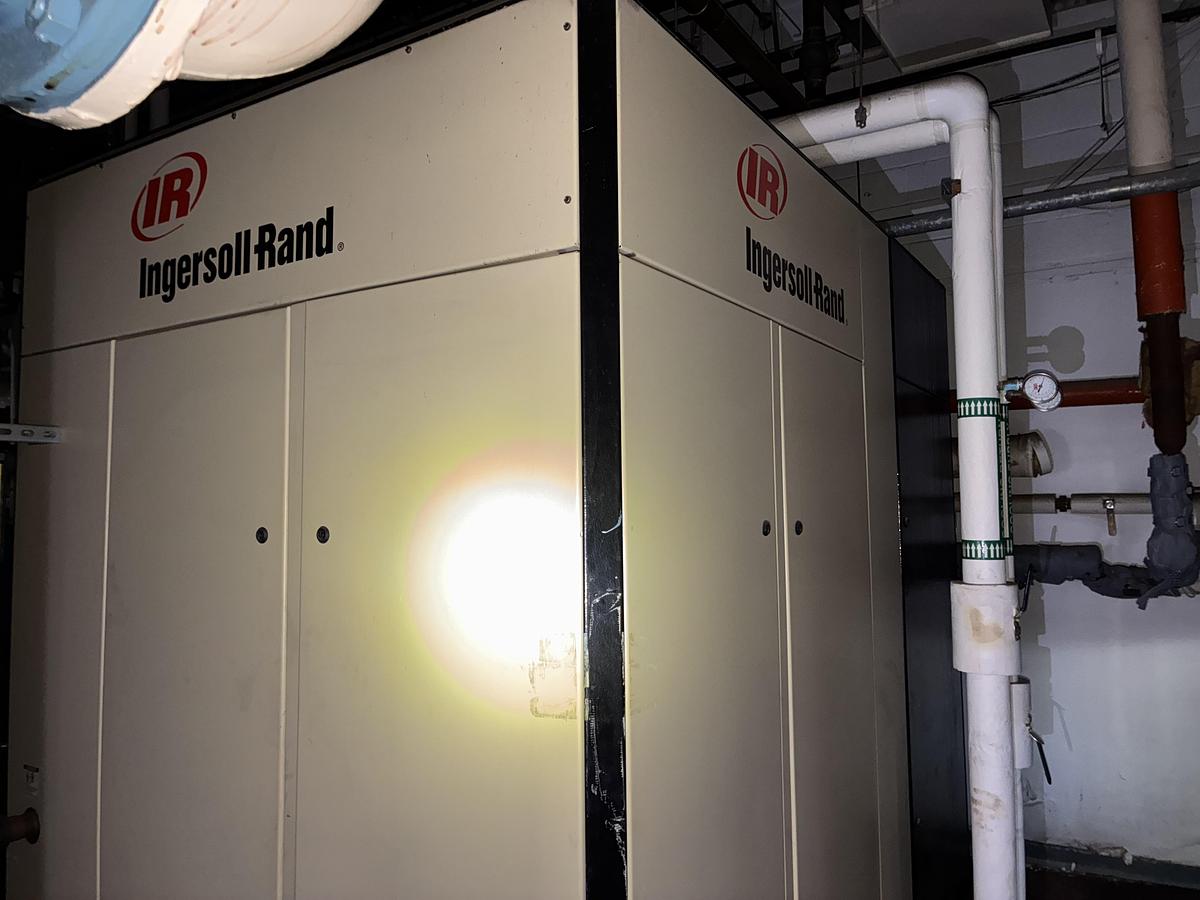

Ingersoll Rand NIRVANA 125HP Oil-Free Rotary Screw Air Compressor IRN125H-OF

Overview

This Ingersoll Rand NIRVANA IRN125H-OF is a premium 125 HP oil-free rotary screw air compressor designed for critical applications requiring 100% oil-free compressed air. Featuring advanced variable speed drive technology and Intellisys intelligent control system, this unit delivers exceptional efficiency with guaranteed oil-free air quality. Ideal for pharmaceutical, food processing, electronics manufacturing, and other industries where air purity is essential, this compressor provides reliable, energy-efficient operation with minimal maintenance requirements.

Design and Performance

Compressor Specifications

Manufacturer: Ingersoll Rand

Model: IRN125H-OF (NIRVANA Series)

Serial Number: TN0173U05012

Type: Oil-Free Rotary Screw

Horsepower: 125 HP

Maximum Discharge Pressure: 150 PSI

Configuration: Variable Speed Drive (VSD)

Air Quality: 100% Oil-Free (Class 0)

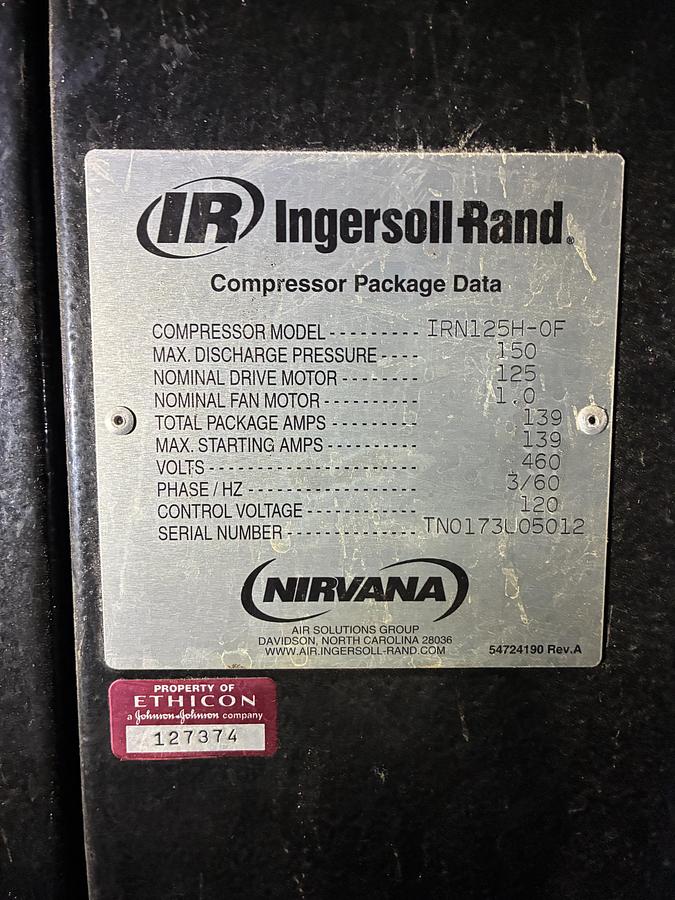

Electrical Specifications

Voltage: 460V

Phase: 3-Phase

Frequency: 60 Hz

Total Package Amps: 139A

Maximum Starting Amps: 139A (Soft Start)

Control Voltage: 120V

Drive Motor: 125 HP Nominal

Fan Motor: 1.0 HP Nominal

Complete System Package

Main Components

• NIRVANA oil-free air end technology
• Variable Speed Drive (VSD) system
• Intellisys digital control panel
• Integrated cooling system
• Advanced filtration system
• Sound-attenuated enclosure
• Premium efficiency motor
• Comprehensive safety systems

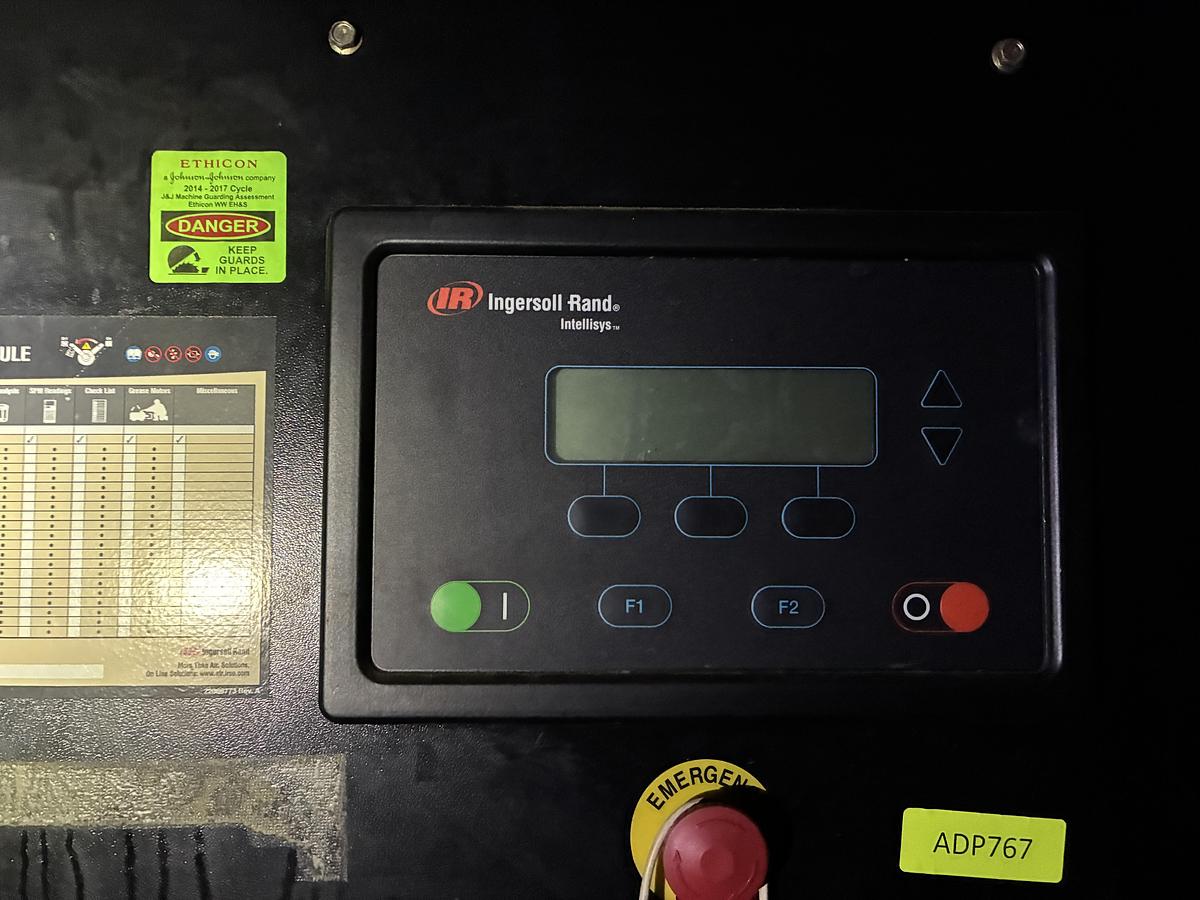

Control System

Control Panel: Ingersoll Rand Intellisys

Features:

• Digital display interface
• F1 and F2 function buttons
• Start/stop controls
• Emergency stop button
• Real-time monitoring
• Diagnostic capabilities
• Remote monitoring ready

Key Features

Oil-Free Technology

• Class 0 oil-free air certification
• No oil contamination risk
• Ideal for sensitive applications
• Eliminates oil disposal costs
• No oil filters required
• Environmentally friendly

Variable Speed Drive Benefits

• Energy savings up to 35%
• Matches air output to demand
• Reduced starting current
• Extended component life
• Quieter operation
• Improved pressure control

System Specifications

Performance Data

Air Delivery: Variable based on demand

Operating Pressure Range: Up to 150 PSI

Cooling Method: Air-cooled

Noise Level: Sound-attenuated enclosure

Air Quality: ISO 8573-1 Class 0

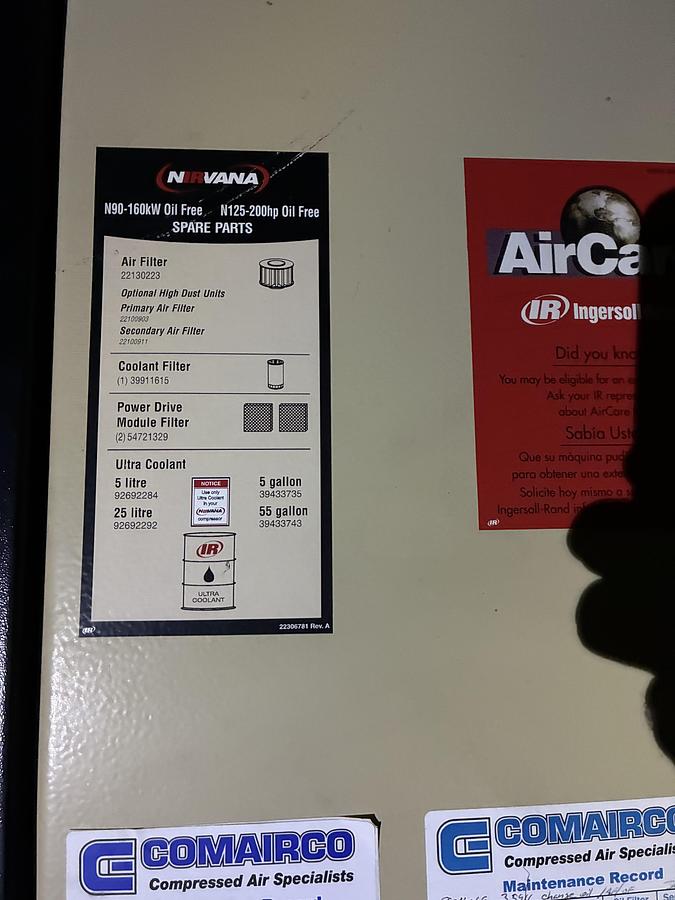

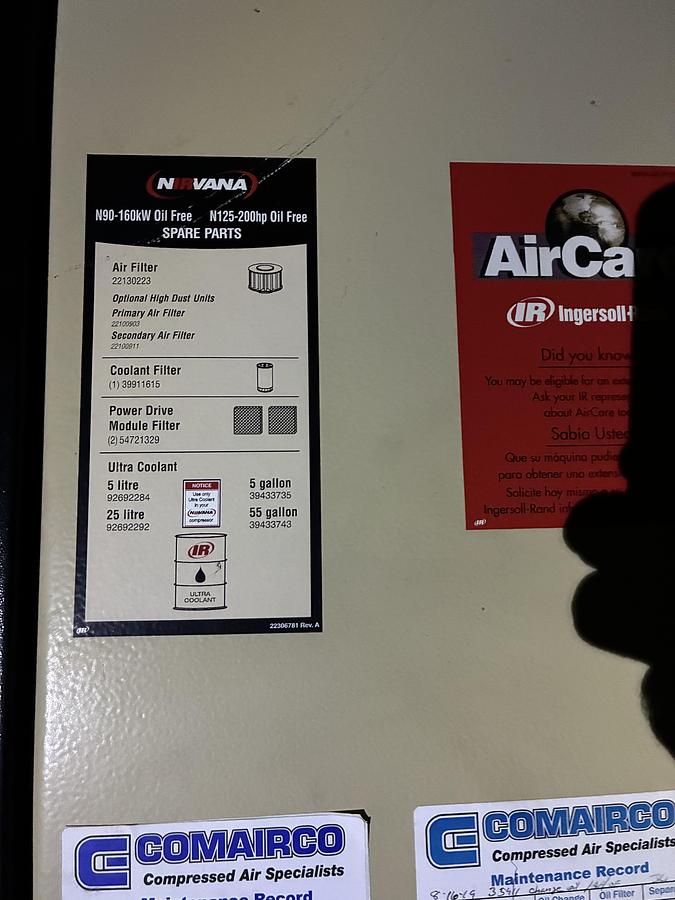

Maintenance Components

Air Filters:

• Primary Air Filter: Part #22100903
• Secondary Air Filter: Part #22100911
• Filter Type: High dust retention units

Coolant System:

• Ultra Coolant: Part #92692284 (5 litre)
• Ultra Coolant: Part #92692292 (25 litre)
• Coolant Filter: Part #39911615

Power Drive Module Filter: Part #54721329

Ideal Applications

• Pharmaceutical Manufacturing
• Food & Beverage Processing
• Electronics Manufacturing
• Medical/Hospital Air Systems
• Laboratory Air Supply
• Chemical Processing
• Textile Manufacturing
• Painting & Coating Operations
• Any application requiring 100% oil-free air

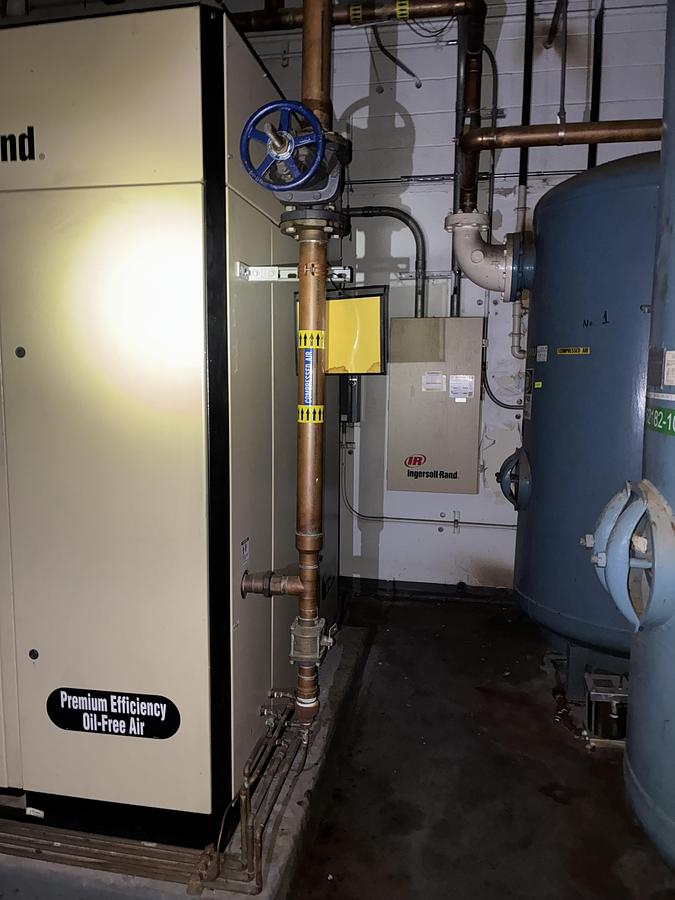

Installation Features

Physical Configuration

• Premium efficiency oil-free design
• Compact footprint
• Full enclosure for noise reduction
• Easy access service doors
• Integrated piping connections
• Forklift accessible base

Safety Features

• Emergency stop button
• Hazardous energy control procedures
• Multiple safety interlocks
• Thermal protection
• Pressure relief valves
• Lock-out/tag-out compatible

Operational Advantages

Energy Efficiency

• Variable speed technology
• Optimized air end design
• No energy lost to oil removal
• Intelligent control algorithms
• Load/no-load optimization
• Power factor correction

Reliability Features

• Proven NIRVANA technology
• Heavy-duty construction
• Premium components
• Continuous duty rated
• Advanced diagnostics
• Predictive maintenance alerts

Technical Details

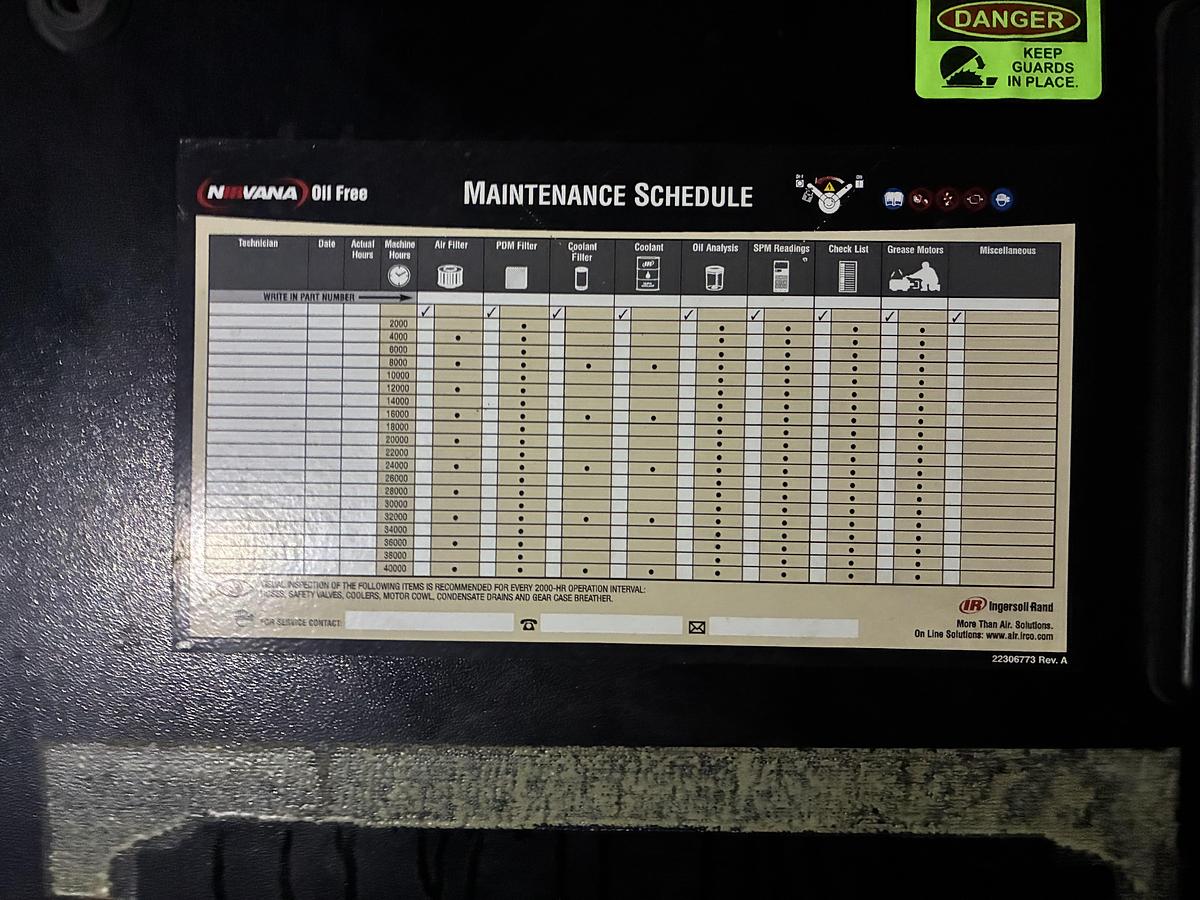

Maintenance Schedule

Service Intervals (Operating Hours):

• 2,000 hours: Air filter, oil analysis
• 4,000 hours: Comprehensive service
• 8,000 hours: Major service items
• As per maintenance schedule chart

Control Features

• User-friendly interface
• Multiple language support
• Trend monitoring
• Alarm history
• Service reminders
• Network connectivity

Energy Management

• Real-time power monitoring
• Efficiency tracking
• Demand-based operation
• Energy cost calculations
• Carbon footprint reduction
• Utility rebate eligible

Safety & Compliance

Certifications:

• ISO 8573-1 Class 0 Oil-Free
• UL/cUL Listed components
• ASME certified vessels
• OSHA compliant
• CE marked (where applicable)

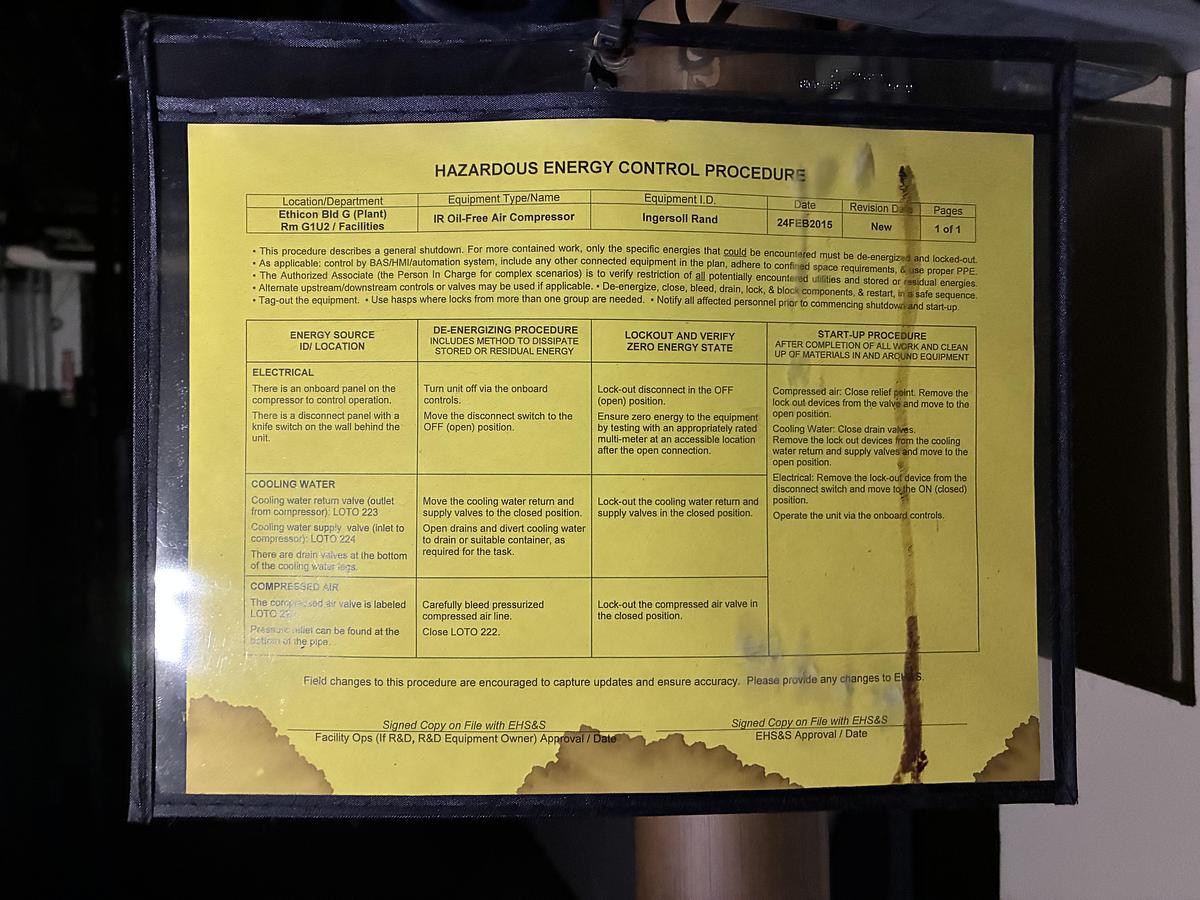

Safety Procedures:

• Comprehensive lockout/tagout
• Hazardous energy control
• Documented procedures
• Safety labeling throughout

Maintenance Support

Service Records

• COMAIRCO maintenance tracking
• Documented service history
• Professional service network
• OEM parts availability
• 24/7 support hotline: 1-877-785-5247

Warranty Options

• AirCare extended warranty eligible
• Comprehensive coverage available
• Preventive maintenance programs
• Remote monitoring services
• Emergency service response

Package Includes

✓ Complete IRN125H-OF compressor package

✓ Intellisys control system

✓ Variable speed drive

✓ Sound-attenuated enclosure

✓ Initial filter set

✓ Operation manual

✓ Maintenance schedule

✓ Safety documentation

✓ Warranty registration

Service Support

• Ingersoll Rand factory support
• Nationwide service network
• 24/7 technical support
• Genuine OEM parts
• Predictive maintenance programs
• Remote monitoring capabilities
• Training available

System Integration

• Building management compatible
• Remote monitoring ready
• Modbus communication
• Ethernet connectivity
• Multiple compressor sequencing
• Energy management integration
