Industrial Hot Water Storage Tank System – 120 PSI

Overview

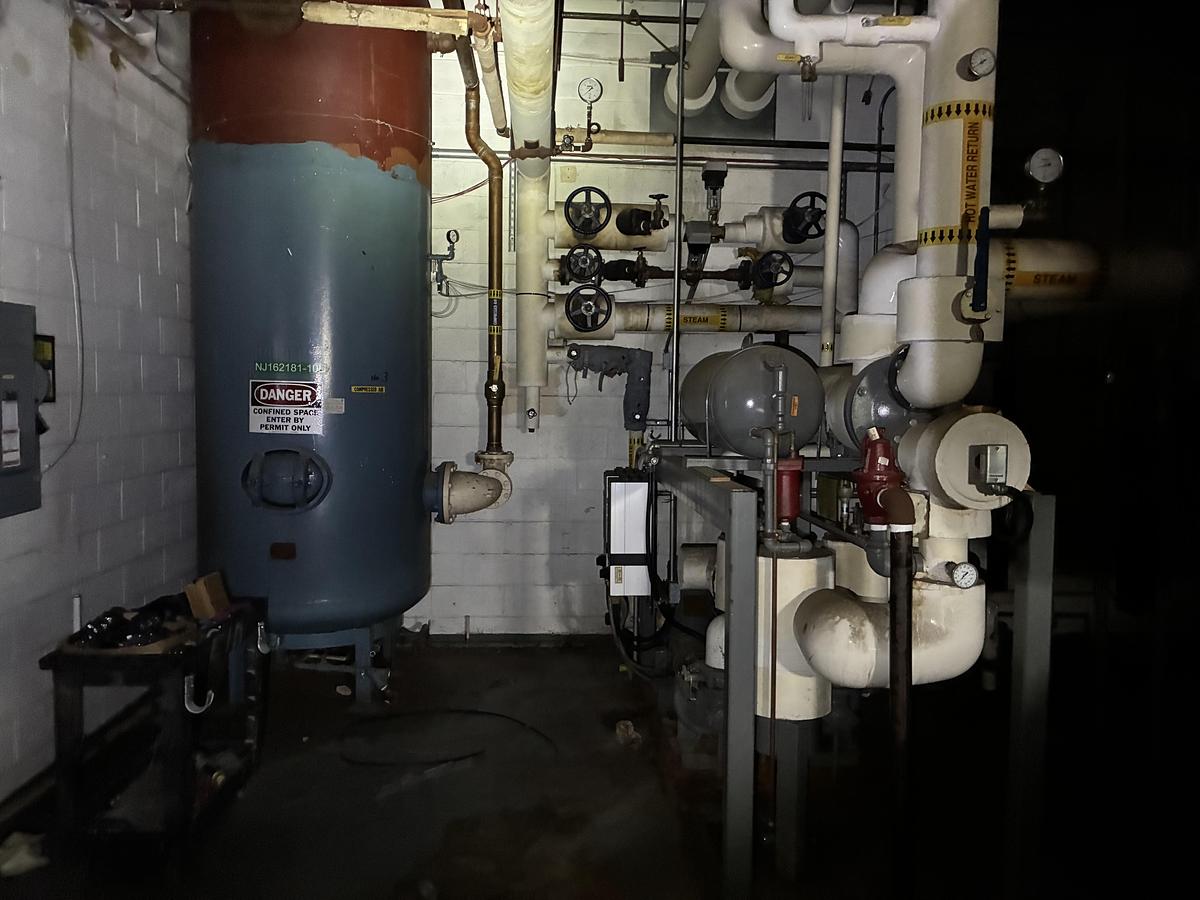

This Industrial Hot Water Storage Tank System is a professional-grade thermal storage vessel designed for commercial and industrial hot water applications. With a 120 PSI working pressure rating and robust construction, this system provides reliable hot water storage for demanding applications. The tank features current New Jersey state inspection certifications and is configured with complete piping connections for immediate integration into existing systems.

Design and Performance

• Vessel Type: Vertical hot water storage tank

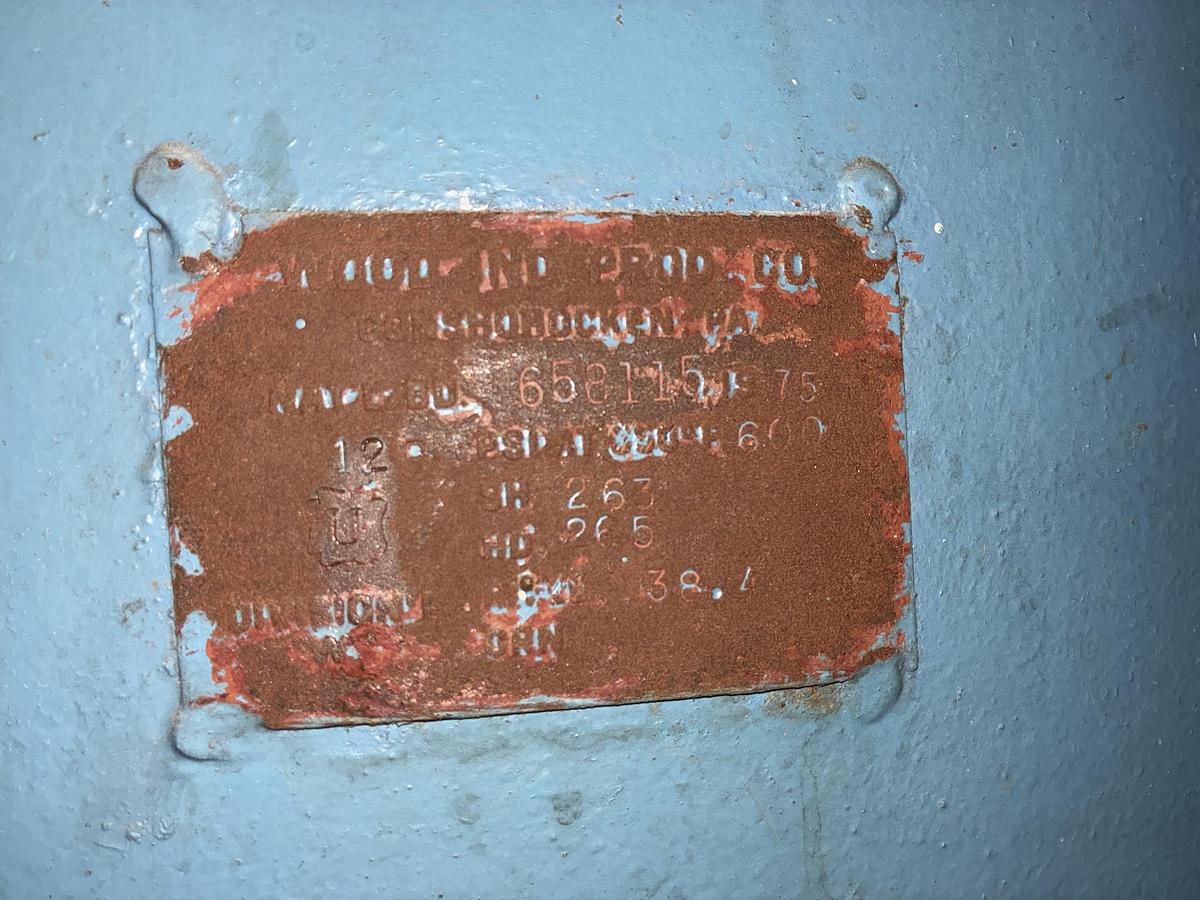

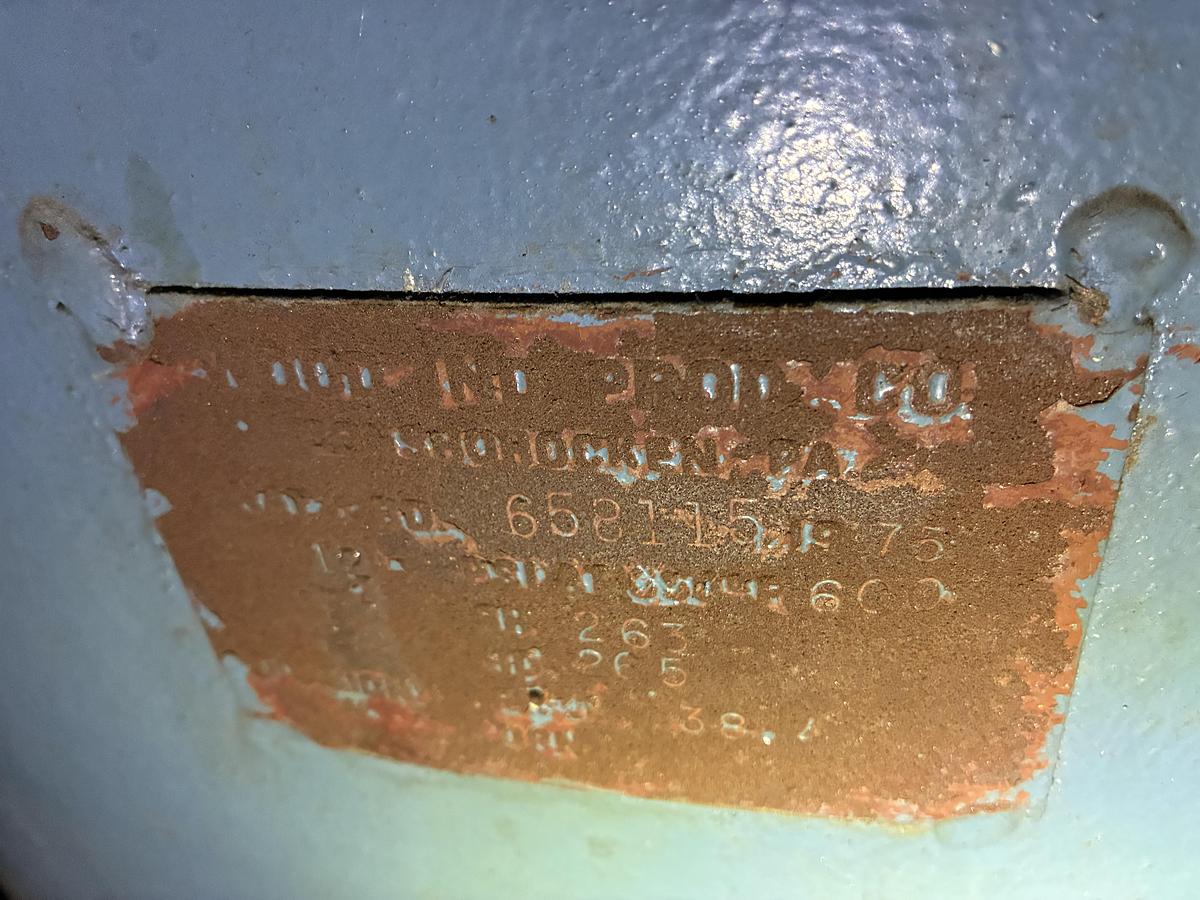

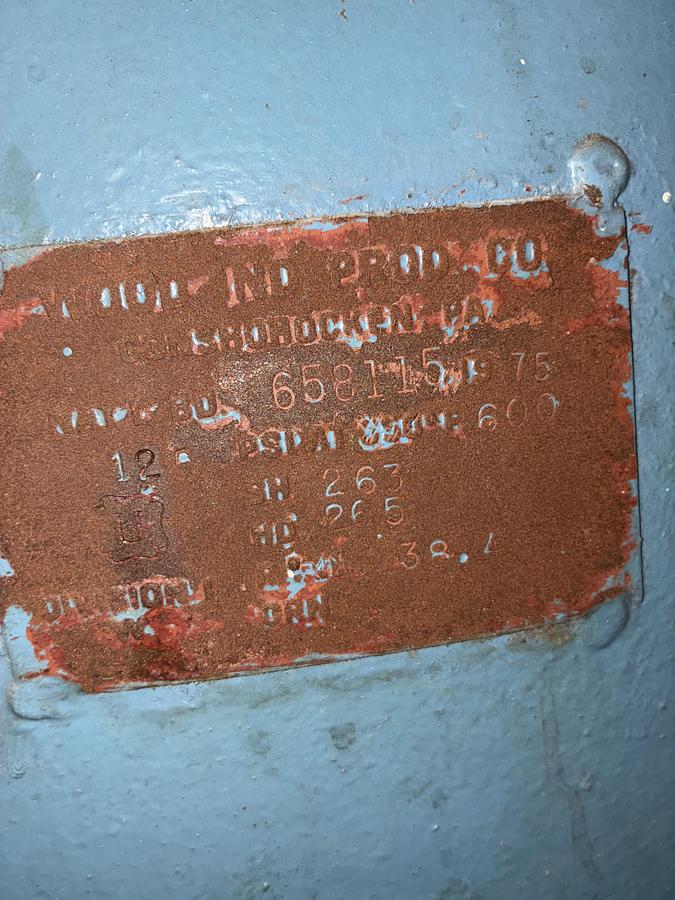

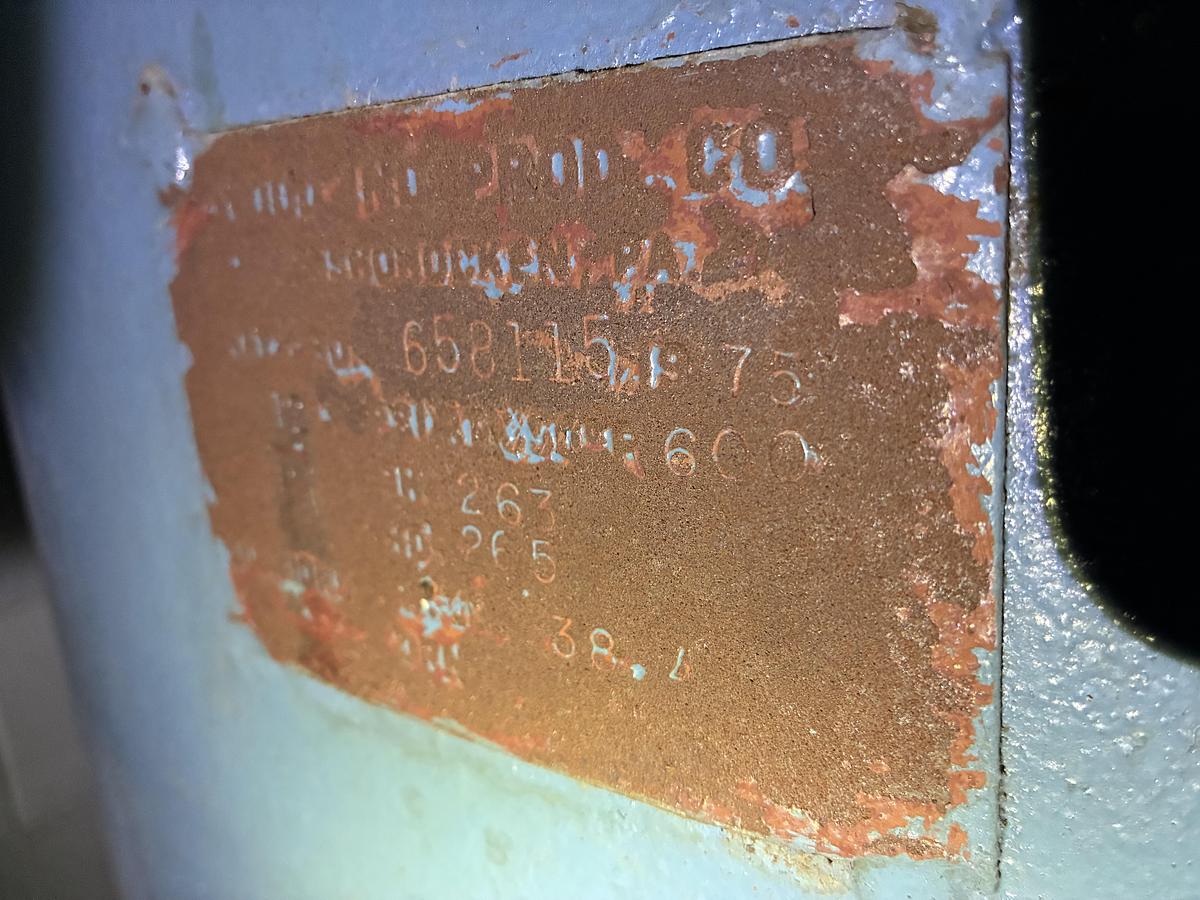

• Working Pressure: 120 PSI (visible on nameplate)
• Construction: Heavy-duty steel with thermal insulation
• Finish: Blue industrial coating (lower section)
• Top Section: Brown/rust-colored upper portion
• Configuration: Vertical mounting with floor stand
• Certification: New Jersey State certified
• Current Inspection: Valid through May 2022

Complete System Package

Main Components

• Insulated pressure vessel
• Complete piping manifold system
• Multiple shutoff valves
• Pressure gauges
• Steam/hot water connections
• Floor-mounted configuration
• Thermal insulation (visible white covering)
• Safety relief connections

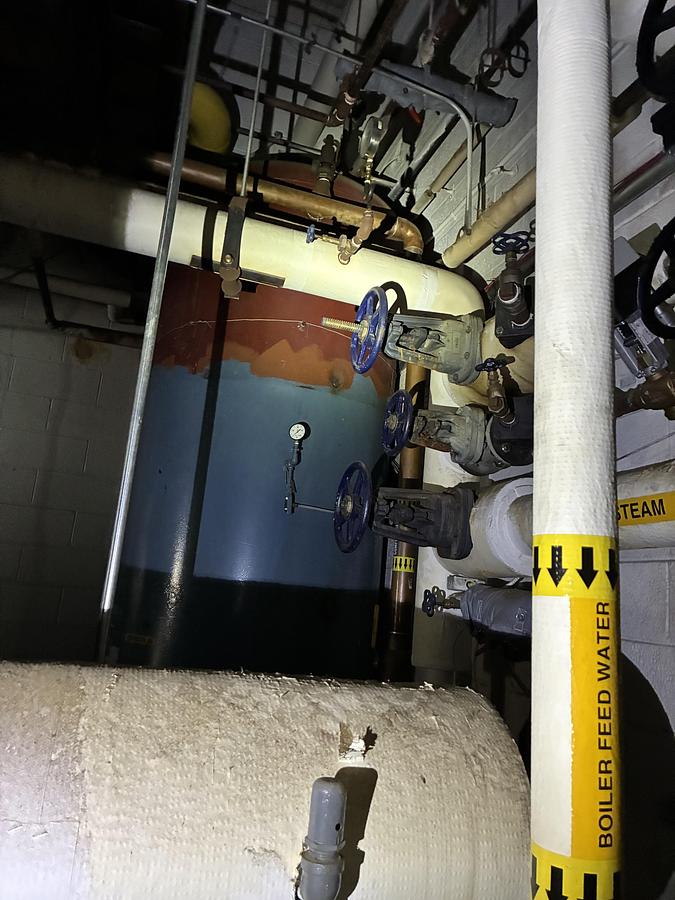

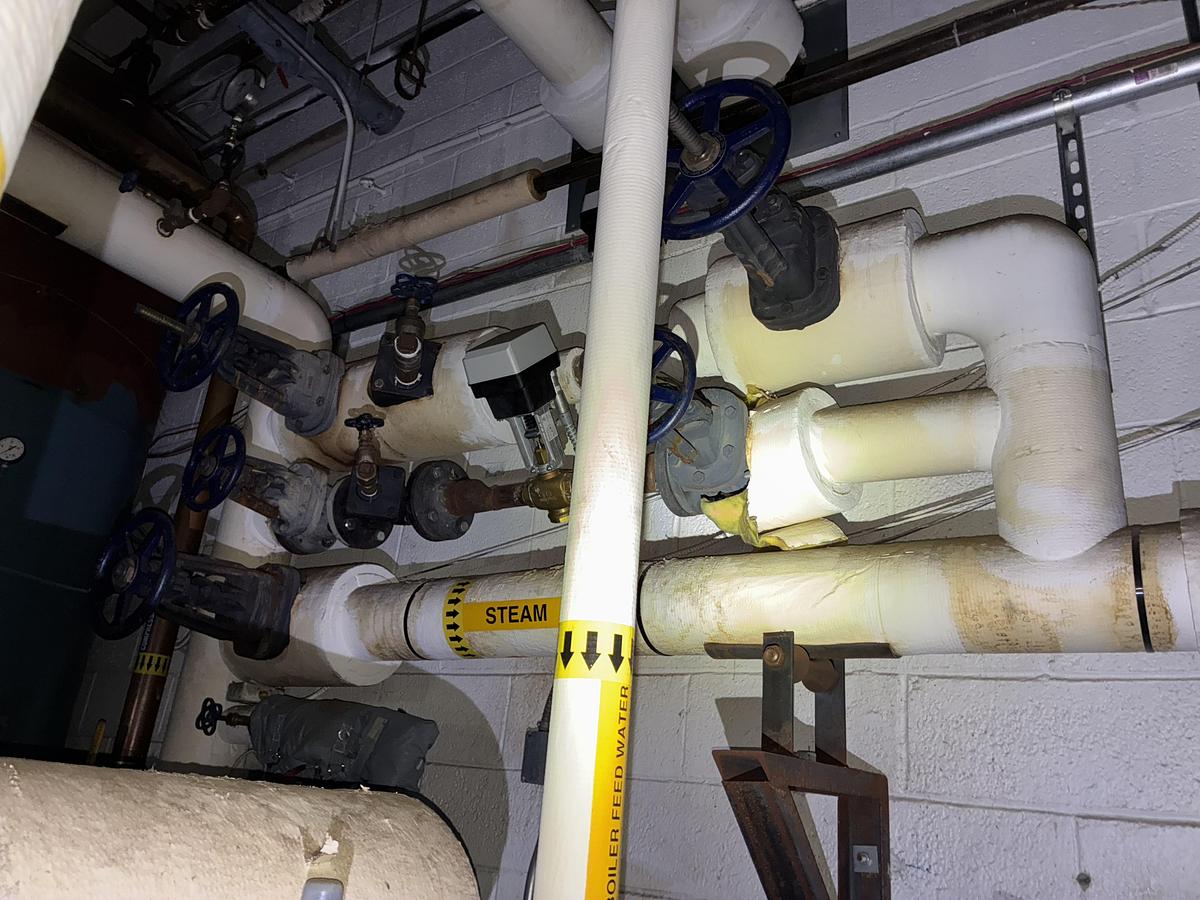

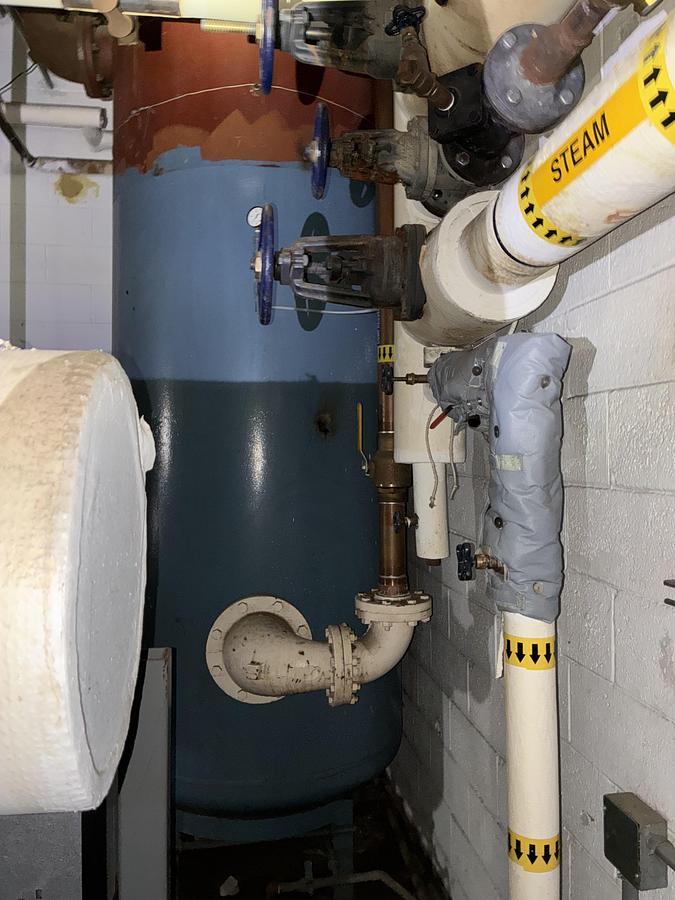

Piping Configuration

• Supply Lines: Multiple steam input connections
• Distribution: Complete valve manifold
• Control Valves: Multiple manual shutoff valves
• Instrumentation: Pressure monitoring included
• Insulation: Steam lines with protective covering

Key Specifications

• Tank Configuration: Vertical storage vessel
• Pressure Rating: 120 PSI operating pressure
• Temperature Service: High-temperature hot water/steam
• Mounting: Floor-standing design
• Access Ports: Multiple connection points
• Safety Features: Pressure relief provisions
• Inspection Status: Current NJ certification

System Features

Construction Quality

• Heavy-duty steel construction
• Professional-grade welding
• Industrial coating system
• Thermal insulation included
• Robust piping connections

Control Systems

• Manual valve control array
• Multiple isolation points
• Pressure monitoring gauges
• Flow control capabilities
• Service isolation valves

Safety & Compliance

• NJ State inspection certified
• Confined space entry requirements
• Pressure relief connections
• Current inspection through 2022
• Jurisdiction #NJ162181-10U

Ideal Applications

• Commercial Buildings
• Industrial Facilities
• Hotels & Hospitality
• Healthcare Facilities
• Manufacturing Plants
• Food Service Operations
• Institutional Buildings
• Process Hot Water Systems
• Steam-to-Hot Water Conversion
• Central Plant Operations

Benefits

• Complete turnkey system ready for connection
• Current state inspection certification
• Multiple control points for operational flexibility
• Insulated design for energy efficiency
• Vertical configuration saves floor space
• Robust commercial-grade construction
• Complete valve and piping package included
• Professional installation evident

Technical Details

Tank Specifications

• Design Pressure: 120 PSI
• Finish: Two-tone industrial coating
• Insulation: Thermal covering on piping
• Connections: Multiple flanged connections
• Mounting: Stable floor-mount design

Piping System

• Configuration: Pre-plumbed manifold
• Valves: Gate valves for isolation
• Materials: Schedule 40/80 piping
• Insulation: High-temperature covering
• Layout: Organized for easy service

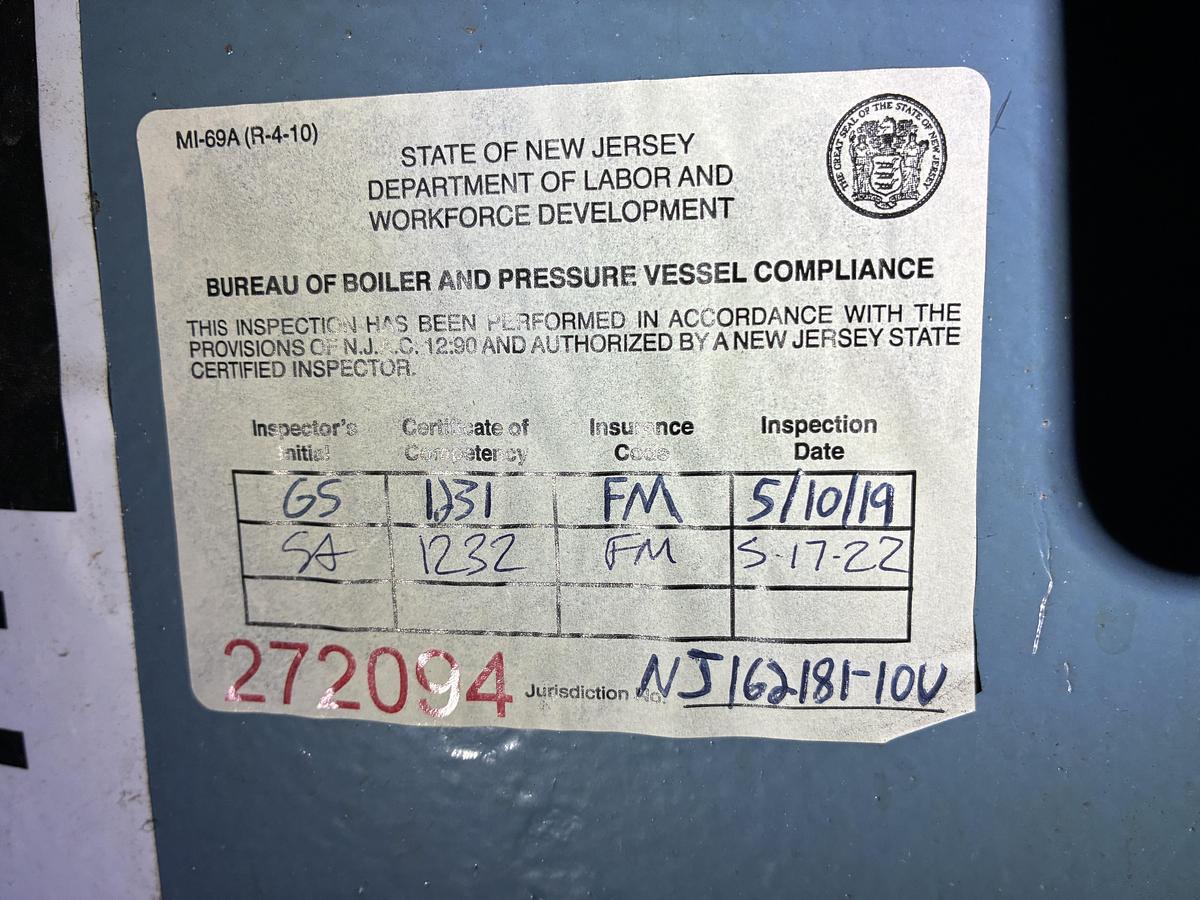

Compliance & Certifications

• State Certification: New Jersey Department of Labor
• Bureau: Boiler and Pressure Vessel Compliance
• Inspection Date: May 10, 2019
• Valid Through: May 17, 2022
• Certificate Numbers: #1281 and #1232
• Insurance Code: FM (Factory Mutual)
• Confined Space: Permit required (#212)

Installation Requirements

• Adequate floor space for vertical tank
• Steam or high-temperature hot water supply
• Proper ventilation for confined space
• Connection to building hot water system
• Appropriate pressure relief discharge piping
• Compliance with local codes

Package Includes

✓ Vertical hot water storage tank

✓ Complete piping manifold

✓ Multiple control valves

✓ Pressure instrumentation

✓ Thermal insulation (partial)

✓ Current inspection certification

✓ Safety signage and markings

✓ Floor-mount configuration

Additional Information

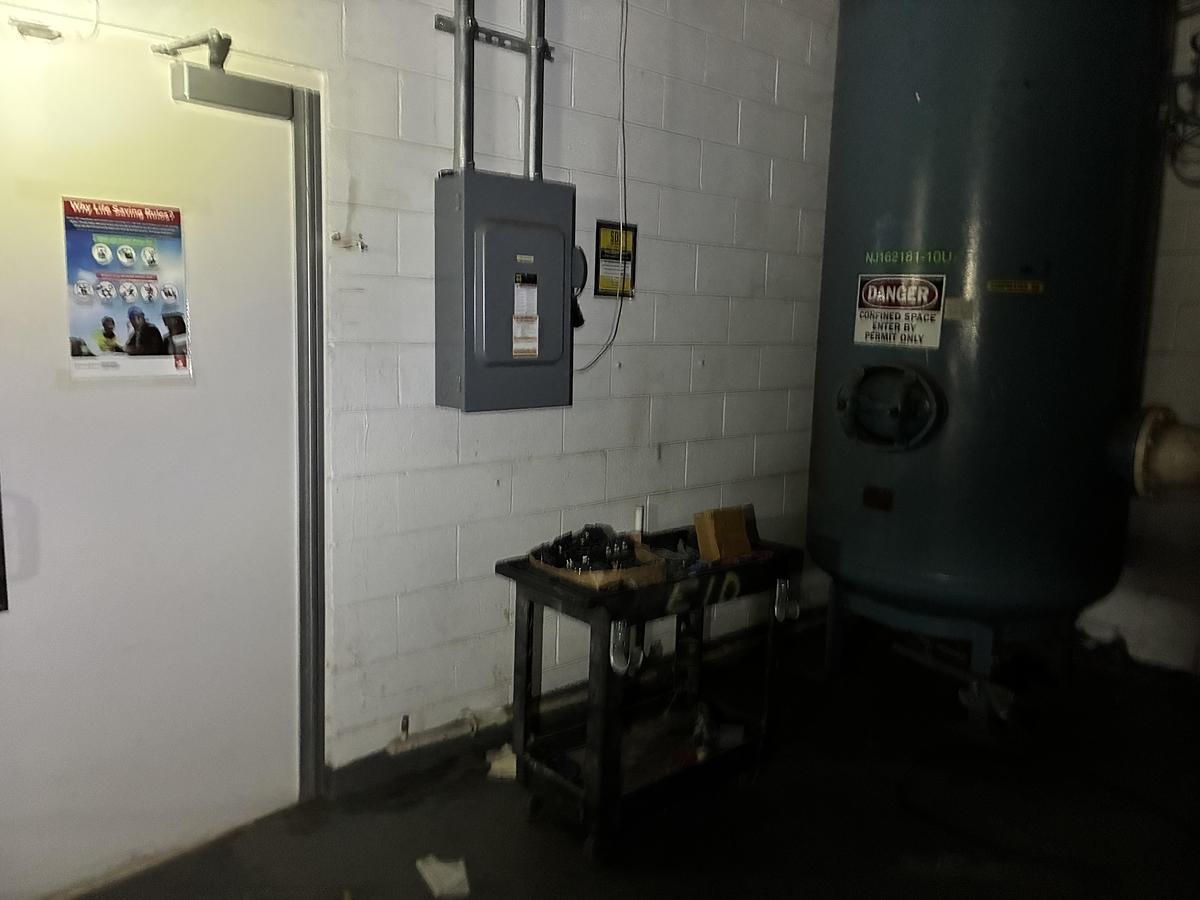

• Location: Currently installed in mechanical room
• Condition: Operational with current certification
• Environment: Indoor installation
• Support Equipment: Adjacent to other mechanical systems
• Service Access: Full access for maintenance
• Documentation: Inspection certificates available

Safety Notices

⚠️ Confined Space: Entry requires permit

⚠️ High Temperature: Steam/hot water service

⚠️ Pressure Vessel: Qualified operators only

⚠️ Regular Inspection: Maintain certification schedule
