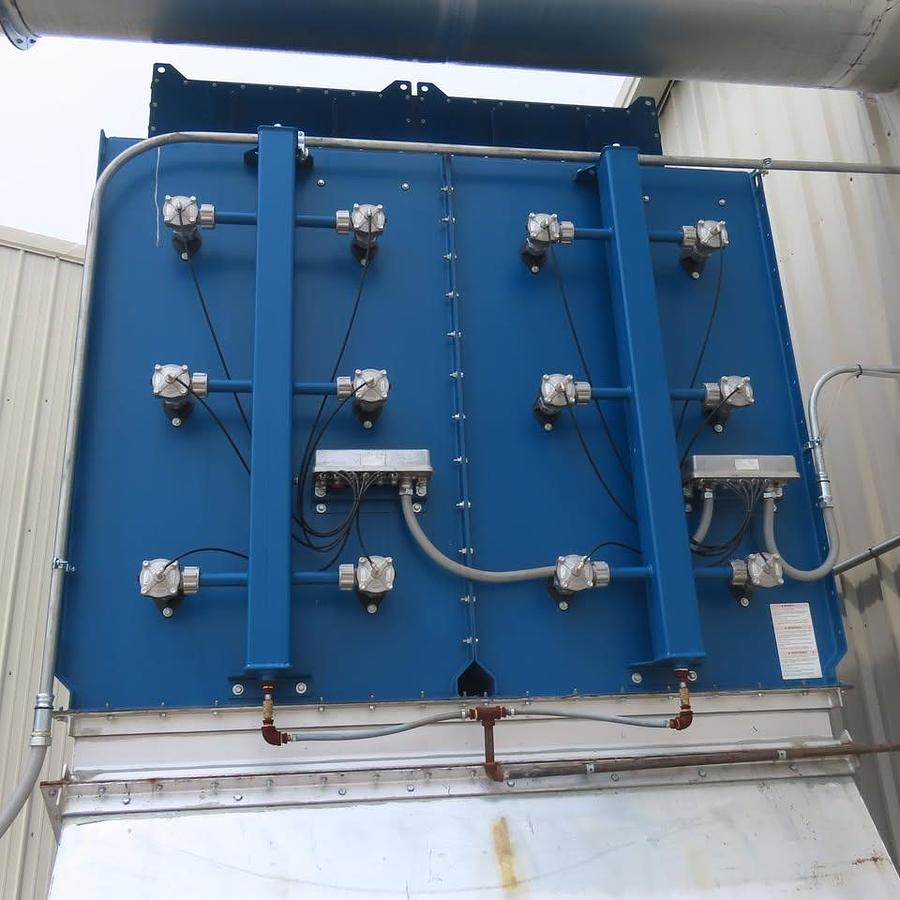

Donaldson Torit Downflo Evolution DFE3-24 24-Cartridge Dust Collector 18000 CFM

OVERVIEW

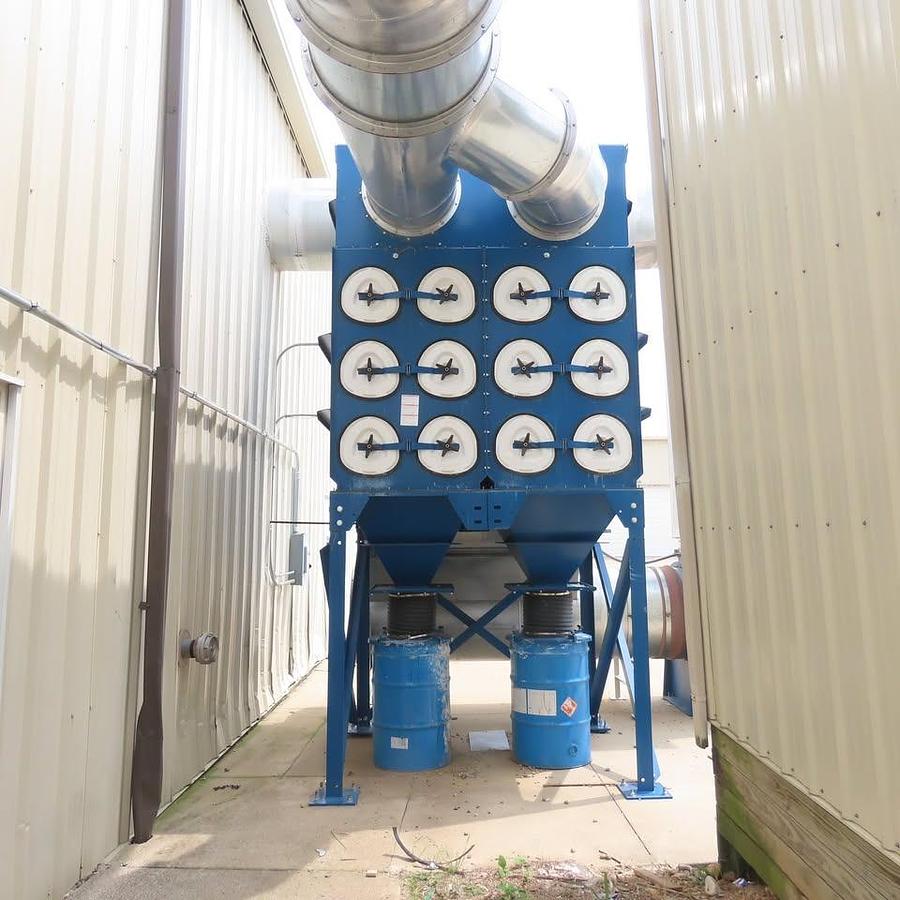

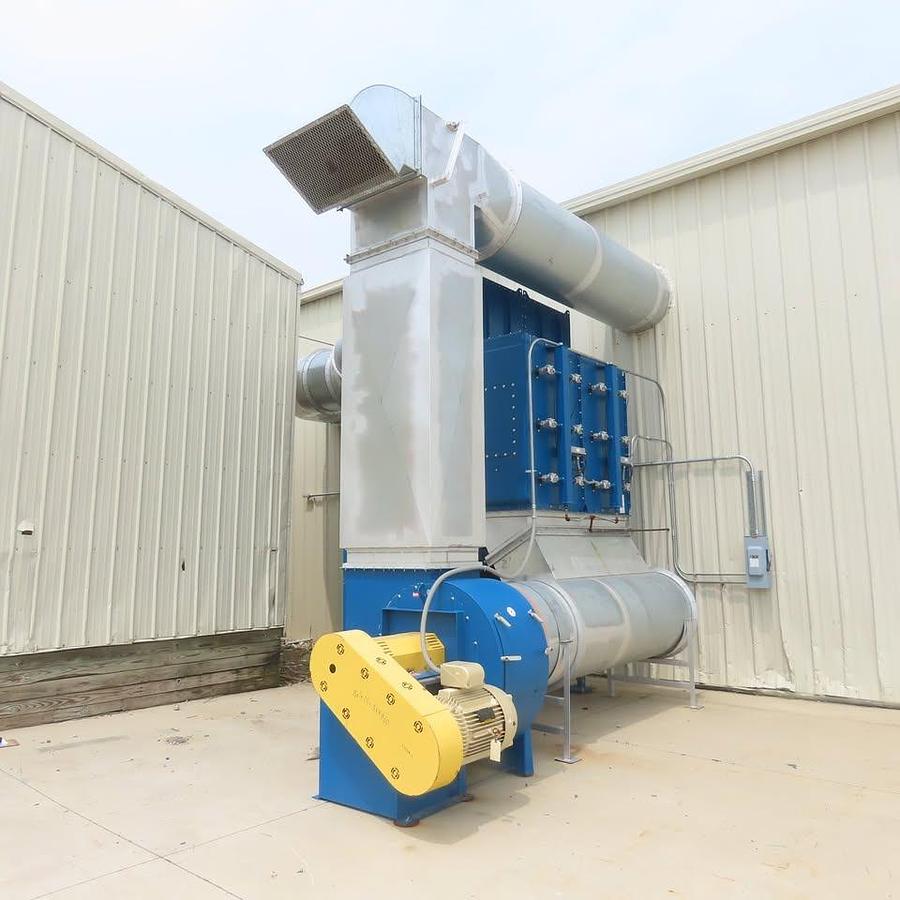

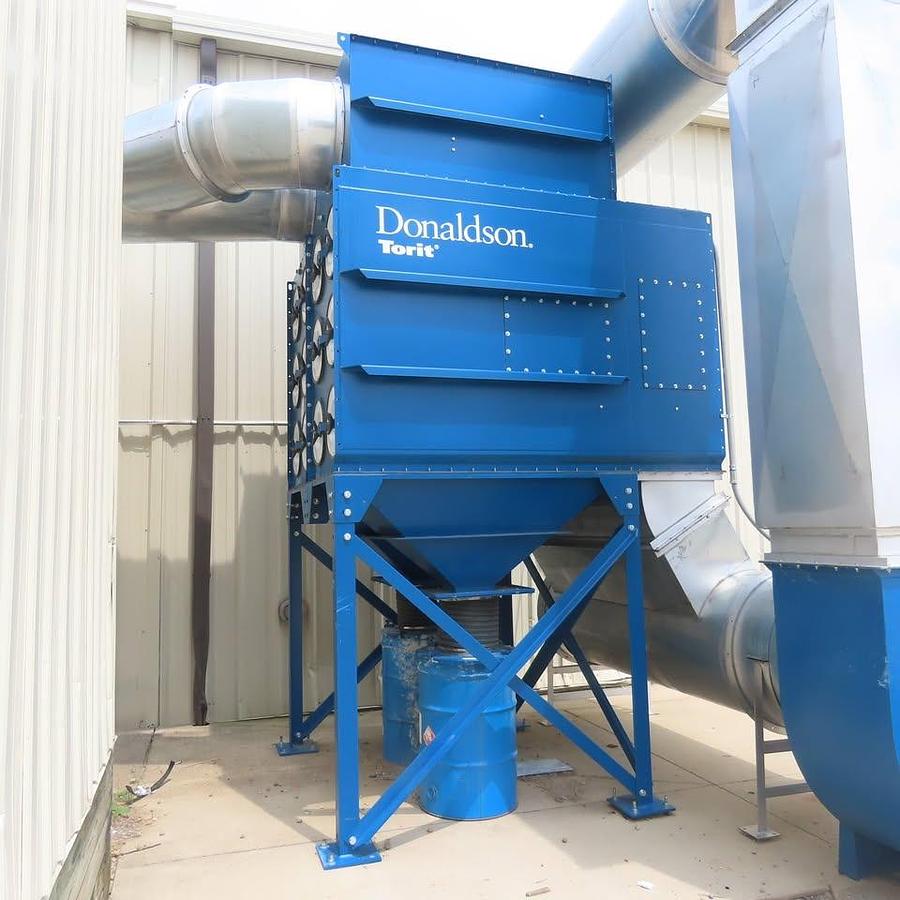

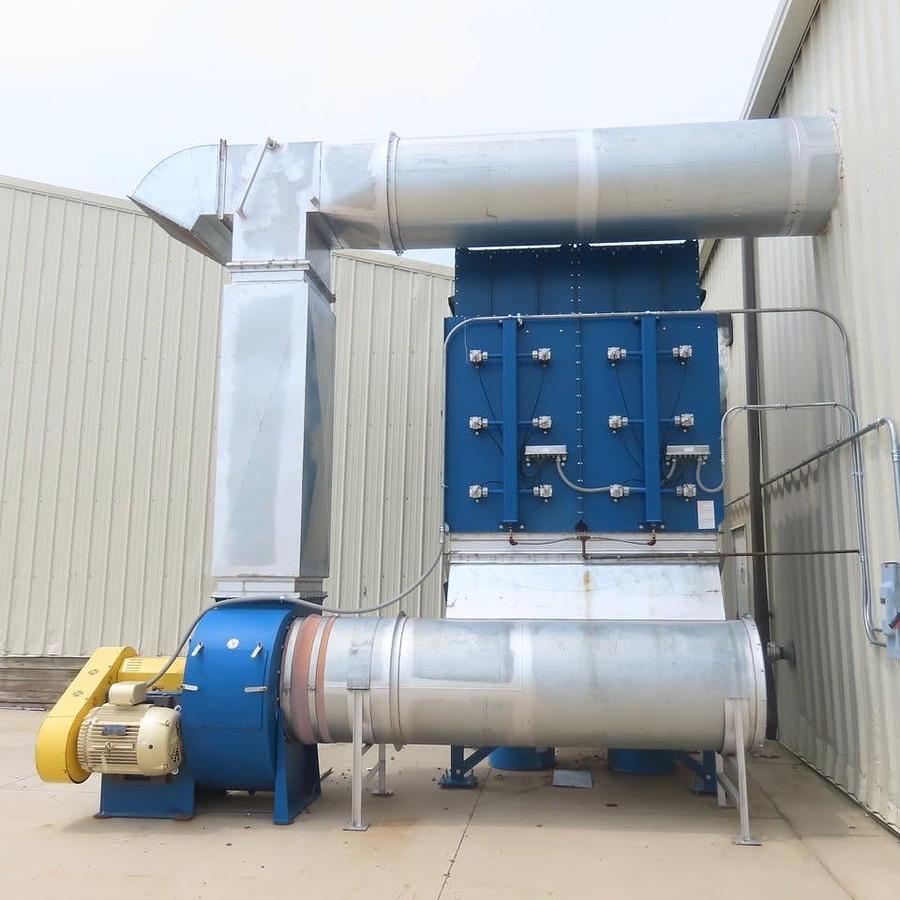

Donaldson Torit Downflo® Evolution DFE3-24 dust collection system with 24 cartridge filters, Serial Number 16364627-L7-1, Filter Part Number P034303. Complete industrial dust collection system featuring 18,000 ACFM capacity with New York Blower 30 ACF centrifugal fan (Shop Number 2022-12889-01, Year 2022), 50 HP Baldor motor (Model EM4115T), 12" water gauge static pressure capability at 2074 RPM. Professional-grade combustible dust collection system with Donaldson Belt Class III ARR-9 arrangement for material handling applications. Includes complete ductwork system with spring-loaded vibration isolators for optimal performance. Overall system footprint approximately 15' x 13'. Built to NFPA standards for safe industrial dust collection. Ideal for woodworking facilities, metalworking operations, pharmaceutical manufacturing, food processing plants, chemical processing, or any industrial application requiring high-volume dust collection with combustible dust handling capability.

EQUIPMENT SPECIFICATIONS

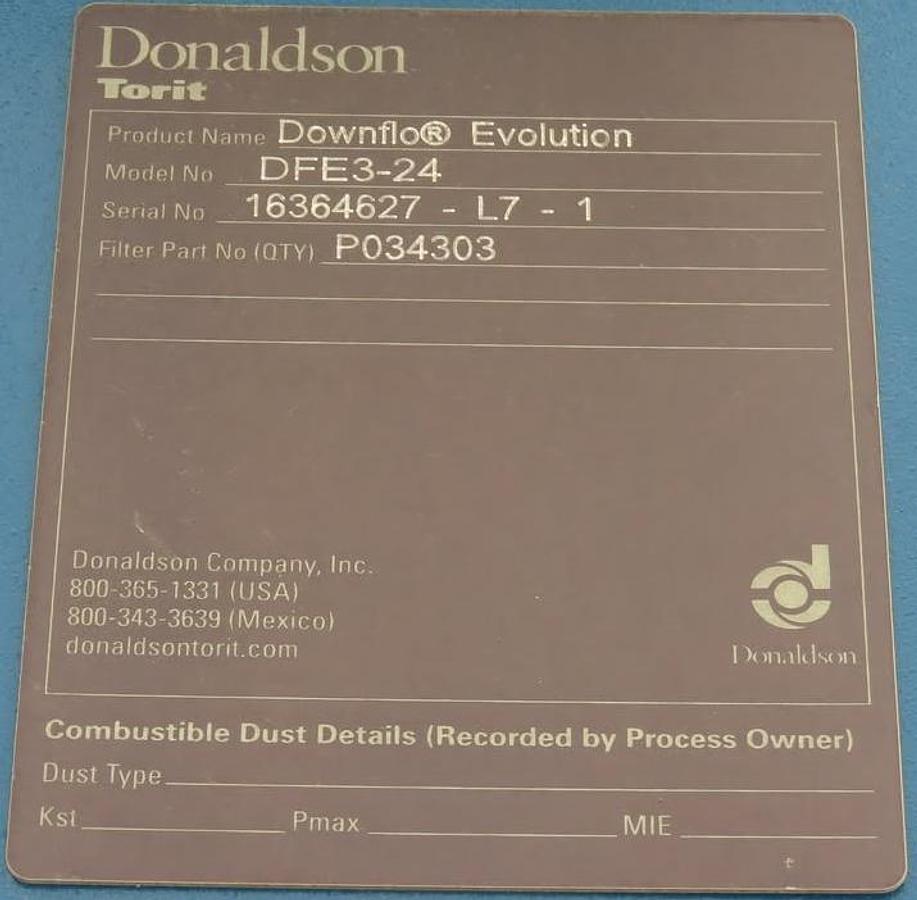

Dust Collector Model Information:

• Manufacturer: Donaldson Company, Inc. (Torit Division)
• Product Line: Downflo® Evolution
• Model Number: DFE3-24
• Serial Number: 16364627-L7-1
• Filter Part Number (QTY): P034303
• Number of Cartridges: 24
• Configuration: Downflow cartridge-style dust collector
• USA Contact: 800-365-1331
• Mexico Contact: 800-343-3639

Air Flow Performance:

• Air Volume: 18,000 ACFM (Actual Cubic Feet per Minute)
• Static Pressure: 12" WG SP (Water Gauge Static Pressure)
• Temperature Rating: 70°F operating temperature
• Density: 0.075 DENS
• Air-to-Cloth Ratio: Per nameplate specifications
• Rotation: UB (Upblast) discharge configuration

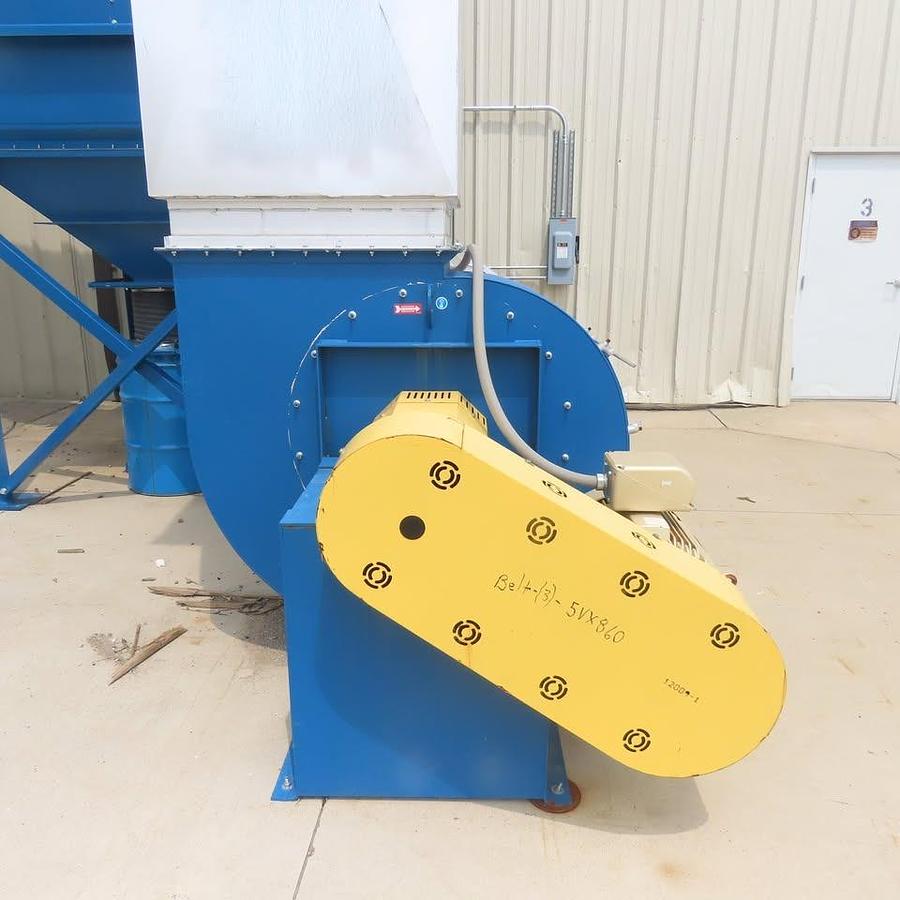

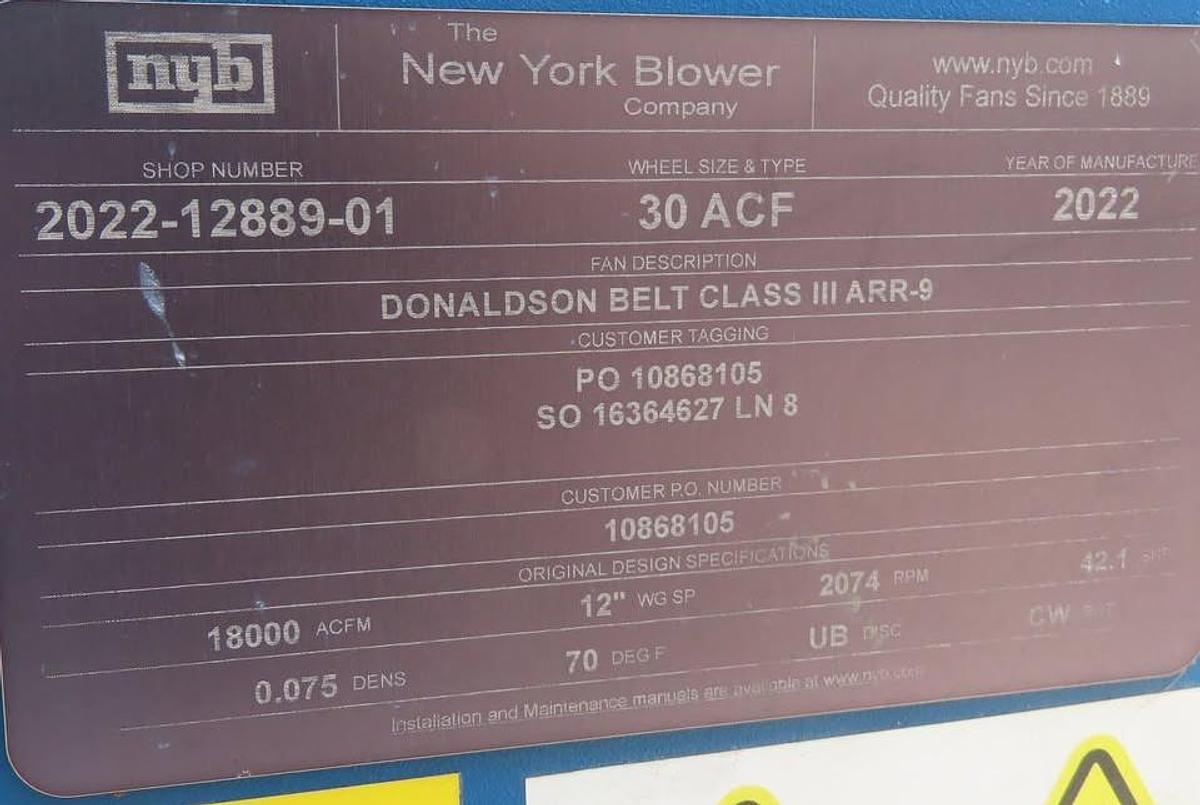

Fan System - New York Blower:

• Manufacturer: The New York Blower Company
• Shop Number: 2022-12889-01
• Wheel Size & Type: 30 ACF (Arrangement Class Forward)
• Year of Manufacture: 2022
• Fan Description: Donaldson Belt Class III ARR-9
• Air Volume: 18,000 ACFM
• Static Pressure: 12" WG SP
• Fan Speed: 2074 RPM
• Fan Horsepower: 42.1 BHP (Brake Horsepower)
• Customer Tagging: PO 10868105, SO 16364627 LN 8
• Customer P.O. Number: 10868105

Motor Specifications - Baldor:

• Manufacturer: Baldor Electric Company
• Model Number: EM4115T
• Horsepower: 50 HP
• Voltage: 230/460 VAC (Dual Voltage)
• Phase: 3-Phase
• RPM: 1,775 RPM
• Frame: TEFC (Totally Enclosed Fan Cooled)
• Mounting: Direct-coupled to fan via belt drive

System Components:

• Dust Collector: Donaldson Torit DFE3-24
• Fan Assembly: New York Blower 30 ACF
• Motor: Baldor 50 HP 3-Phase
• Filter Cartridges: 24 units (P034303)
• Ductwork: Complete system included
• Vibration Isolators: Spring-loaded type
• Controls: Integrated pulse-jet cleaning system
• Hopper: Bottom collection hopper with discharge

Physical Dimensions:

• Overall Footprint: Approximately 15' x 13'
• Configuration: Vertical downflow design
• Mounting: Structural steel support frame
• Access: Service doors and walkways
• Filter Access: Top-load cartridge design

KEY FEATURES & BENEFITS

Donaldson Torit Quality:

• Premium industrial dust collection manufacturer
• Downflo® Evolution series design
• 2022 New York Blower fan system
• 24-cartridge filtration capacity
• P034303 filter cartridges
• Professional industrial construction
• Proven combustible dust handling
• Complete turnkey system

High-Volume Air Movement:

• 18,000 ACFM capacity
• 12" water gauge static pressure
• 2074 RPM fan speed
• 42.1 BHP fan power
• 30 ACF centrifugal fan
• Efficient air-to-cloth ratio
• Continuous duty rated
• High-efficiency collection

Advanced Filtration System:

• 24 cartridge filters
• Downflow filtration design
• P034303 filter elements
• Pulse-jet cleaning system
• Automatic filter cleaning
• Extended filter life
• High collection efficiency
• Easy cartridge replacement

Powerful Drive System:

• 50 HP Baldor motor
• 230/460V dual voltage capability
• 3-Phase power supply
• 1,775 RPM motor speed
• TEFC motor enclosure
• Belt Class III ARR-9 arrangement
• Reliable power transmission
• Heavy-duty construction

Complete System Package:

• Dust collector unit
• New York Blower fan assembly
• 50 HP motor system
• Complete ductwork included
• Spring-loaded vibration isolators
• Control systems
• Collection hopper
• Ready for installation

Safety & Compliance:

• Combustible dust rated
• NFPA compliant design
• Class III arrangement
• Multiple safety interlocks
• Grounding provisions
• Explosion relief capability
• Professional engineering
• Industrial safety standards

SYSTEM COMPONENTS

Main Dust Collector:

• Donaldson Torit DFE3-24
• Serial Number 16364627-L7-1
• 24-cartridge configuration
• Downflo® Evolution design
• Filter Part Number P034303
• Pulse-jet cleaning system
• Collection hopper included
• Structural support frame

Fan Assembly:

• New York Blower Company
• Shop Number 2022-12889-01
• 30 ACF wheel configuration
• Year 2022 manufacture
• 18,000 ACFM capacity
• 12" WG static pressure
• 2074 RPM operating speed
• 42.1 BHP power requirement

Motor System:

• Baldor Model EM4115T
• 50 Horsepower rating
• 230/460V dual voltage
• 3-Phase power
• 1,775 RPM rated speed
• TEFC enclosure
• Heavy-duty industrial motor
• Belt-driven fan connection

Filtration Components:

• 24 filter cartridges
• P034303 filter elements
• Top-load cartridge access
• Pulse-jet cleaning manifold
• Compressed air system
• Cleaning timers and controls
• Filter differential pressure gauge

Ductwork System:

• Complete duct system included
• Inlet and outlet connections
• Branch connections
• Support brackets
• Transition sections
• Access doors
• Inspection ports
• Professional installation ready

Vibration Control:

• Spring-loaded vibration isolators
• Motor base isolation
• Fan mounting isolation
• Reduced noise transmission
• Extended equipment life
• Smooth operation
• Structural protection

Control Systems:

• Pulse-jet cleaning controller
• Differential pressure monitoring
• Filter cleaning cycle control
• Safety interlocks
• Motor controls
• Emergency shutdown
• Alarm systems
• Operational indicators

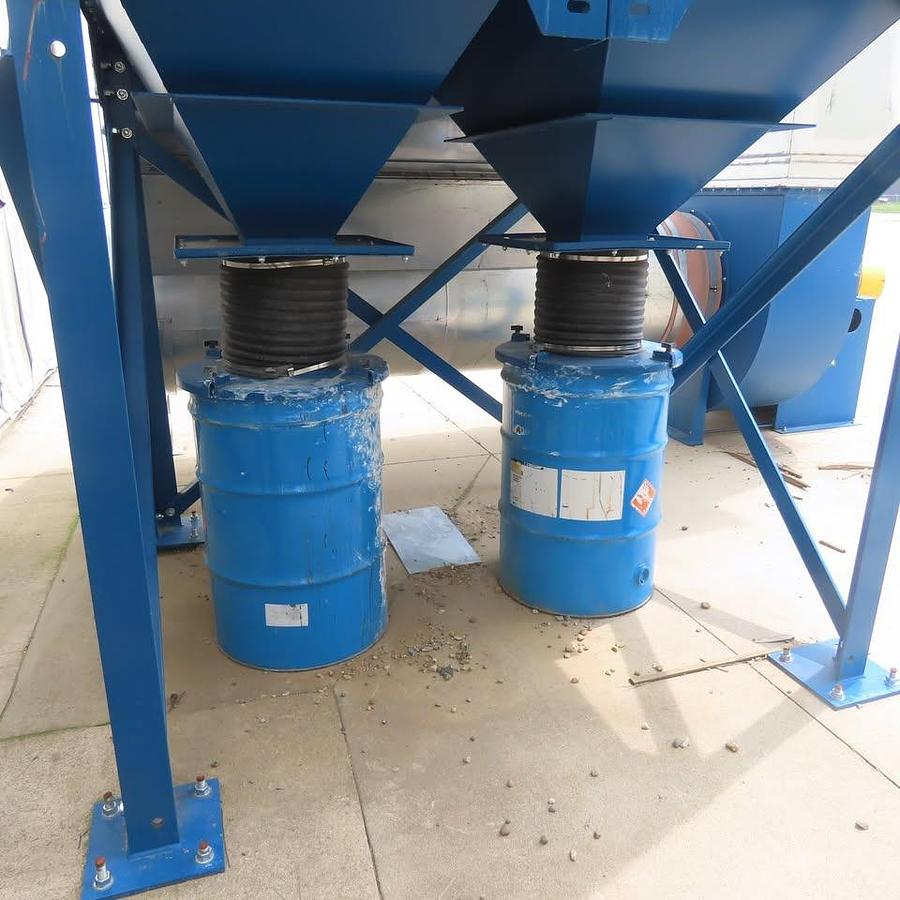

Collection System:

• Bottom discharge hopper
• Rotary airlock valve (if equipped)
• Drum or bag collection point
• Dust discharge system
• Material handling provisions
• Cleanout access
• Level indicators

SPECIFICATIONS SUMMARY

Dust Collector:

• Manufacturer: Donaldson Torit
• Model: DFE3-24 Downflo® Evolution
• Serial: 16364627-L7-1
• Cartridges: 24 units
• Filter Part No: P034303
• Capacity: 18,000 ACFM
• Static Pressure: 12" WG
• Temperature: 70°F rating
• Origin: USA

Fan System:

• Manufacturer: New York Blower
• Shop Number: 2022-12889-01
• Type: 30 ACF centrifugal
• Year: 2022
• Capacity: 18,000 ACFM
• Static Pressure: 12" WG SP
• Speed: 2074 RPM
• Horsepower: 42.1 BHP
• Arrangement: Belt Class III ARR-9
• Discharge: UB (Upblast)

Motor:

• Manufacturer: Baldor
• Model: EM4115T
• Horsepower: 50 HP
• Voltage: 230/460V
• Phase: 3-Phase
• RPM: 1,775
• Enclosure: TEFC

Physical:

• Footprint: Approx 15' x 13'
• Configuration: Vertical downflow
• Mounting: Structural steel frame
• Ductwork: Complete system included
• Isolators: Spring-loaded vibration
• Construction: Heavy-duty industrial

Performance:

• Air Volume: 18,000 ACFM
• Pressure: 12" WG SP
• Density: 0.075
• Temperature: 70°F
• Application: Combustible dust
• Classification: Class III

ADDITIONAL INFORMATION

• Condition: Used - Excellent Operating Condition
• Manufacturer: Donaldson Company, Inc. (Torit Division)
• Product Line: Downflo® Evolution
• Model: DFE3-24
• Serial Number: 16364627-L7-1
• Filter Part Number: P034303
• Number of Cartridges: 24
• Air Flow Capacity: 18,000 ACFM (Actual Cubic Feet per Minute)
• Static Pressure: 12" WG SP (Water Gauge Static Pressure)
• Operating Temperature: 70°F
• Air Density: 0.075

Fan System: New York Blower Company

• Shop Number: 2022-12889-01
• Year of Manufacture: 2022
• Wheel Size: 30 ACF
• Fan Description: Donaldson Belt Class III ARR-9
• Air Volume: 18,000 ACFM
• Static Pressure: 12" WG SP
• Fan Speed: 2074 RPM
• Brake Horsepower: 42.1 BHP
• Discharge: UB (Upblast)
• Customer PO: 10868105
• Sales Order: 16364627 LN 8

Motor: Baldor Electric Company

• Model Number: EM4115T
• Horsepower: 50 HP
• Voltage: 230/460 VAC (Dual Voltage Capable)
• Phase: 3-Phase
• Speed: 1,775 RPM
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

Overall System Footprint: Approximately 15' x 13'

Included Components:

• Complete ductwork system
• Spring-loaded vibration isolators
• Pulse-jet cleaning system
• Collection hopper
• Motor and fan assembly
• All electrical controls
• Filter cartridges installed

Features:

• Downflow cartridge-style dust collector
• 24 high-efficiency filter cartridges (P034303)
• Pulse-jet automatic filter cleaning system
• New York Blower 30 ACF centrifugal fan (2022)
• 50 HP Baldor 3-phase motor with dual voltage capability
• Belt Class III ARR-9 arrangement for combustible dust applications
• Complete integrated ductwork system
• Spring-loaded vibration isolators for smooth operation
• 18,000 ACFM high-volume air handling capacity
• 12" water gauge static pressure capability
• Upblast discharge configuration
• Heavy-duty industrial construction
• NFPA compliant combustible dust handling
• Easy-access top-load cartridge design
• Automatic cleaning cycle controls
• Differential pressure monitoring
• Safety interlocks and emergency shutdown
• Bottom discharge hopper with collection system
• Ready for immediate installation and operation
