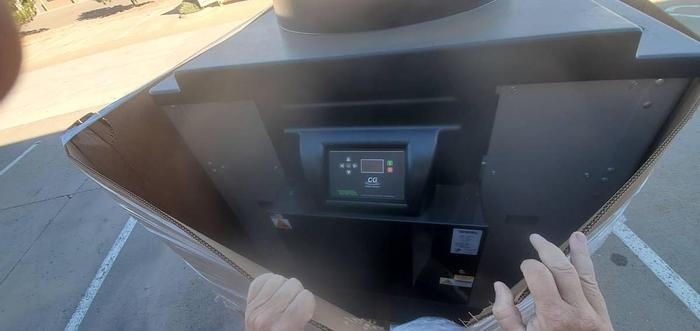

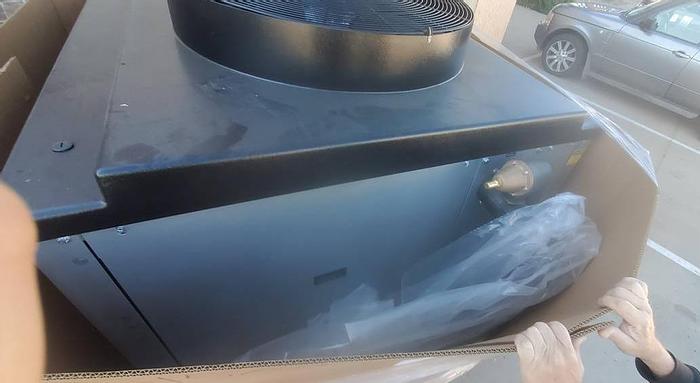

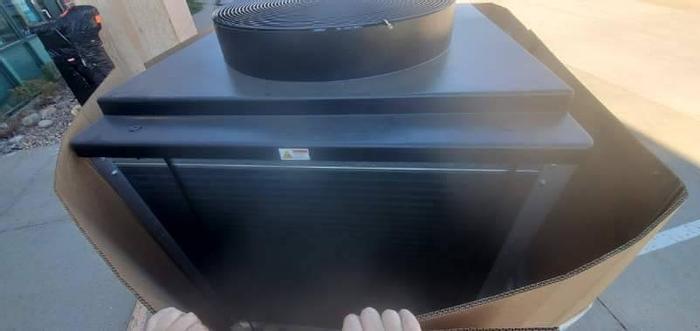

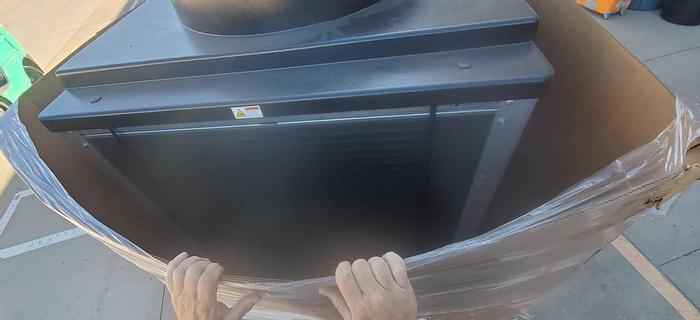

15 Ton Air Cooled Chiller

Capacity

Tons : 14.5

kW : 50.9

Compressor

HP : 15

Type : Digital Scroll

Process Pump

HP : 3

GPM : 36

PSI : 55

Type : Centrifugal

Construction : Stainless Steel

Automatic Low Flow Bypass: : Standard

Air-Cooled Condenser

Type : Fan

CFM : 15,000

(3) Ambient : 95°F

Refrigerant

Type : R-410A

Full Load Amperage

230/3/60 : 86.6

460/3/60 : 43.3

575/3/60 : 35

Reservoir Capacity

Holding : 65 gal

Lid : Standard

Auto Make-Up : Optional

Process Connections

To Process : 2″

From Process : 2″

Make-Up : 1/2″

Dimensions

Height : 66″

Width : 59″

Depth : 59″

Weight

Shipping : 2,300 lbs

condition: new

make / manufacturer: Temptek

model name / number: CGD-15A-FC

C392021-M597
