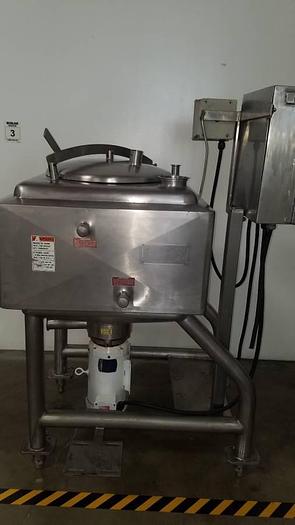

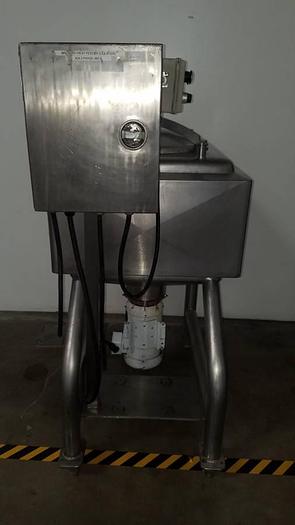

1991 LIQUIFIER 7.5 HP APV CREPACO Stainless Steel Jacketed with Lid

LIQUIFIER 7.5 HP APV CREPACO Stainless Steel Jacketed with Lid
CAPACITY: about 55 gallons
MOTOR: 7.5 HP 3 phase, 3450 RPM

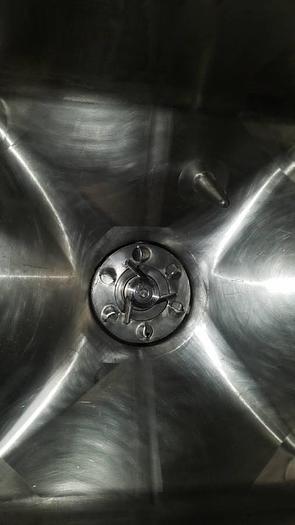

IMPELLER: 8 inch diameter
INSIDE DIMENSIONS: 26 1/2 inches X 26 1/2 inches high x 19 inches high
JACKET OUTSIDE DIMENSIONS: 31 inches x 31 inches x 16 inches high
OUTLET: 2 1/2 inch Tri Clamp

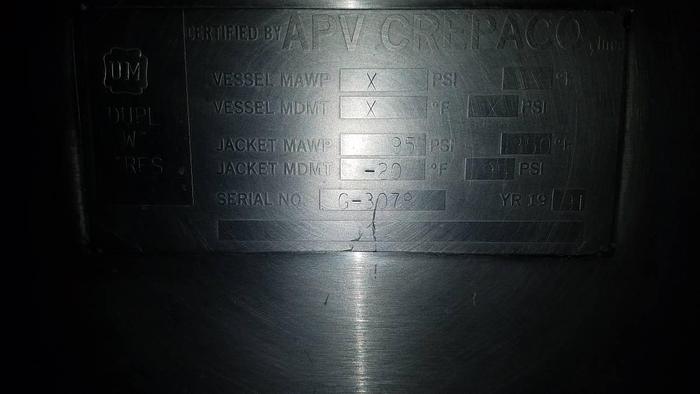

JACKET: is open jacket for Hot or Cold Liquid with 1 NPT in and out tagged at 95 PSI at 350 F OR -20F
OVERALL DIMENSIONS: 43 inches x 31 inches x 65 inches high (includes electrical box)
MAIN DRIVE ONLY: No pump
Weight: 550 pounds

TG2038
