Daewoo/Doosan Puma 2000SY CNC Lathe Puma 2000SY
No longer available
Daewoo/Doosan Puma 2000SY CNC Lathe Puma 2000SY
Florida
Description

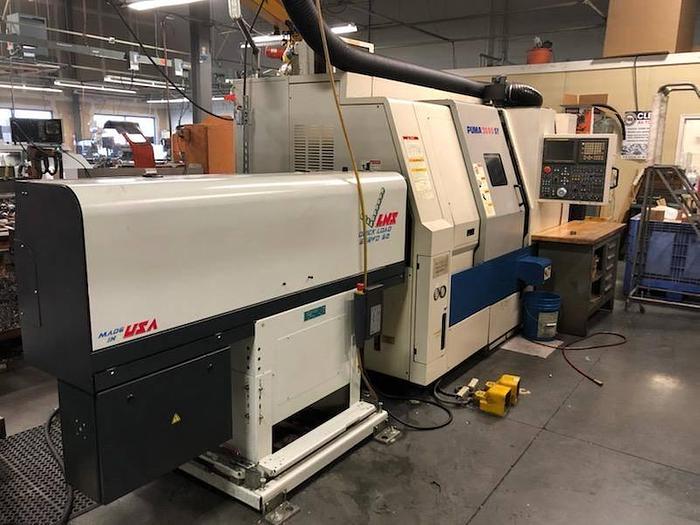

Daewoo Puma 2000SY CNC Turning Center
SPECIFICATIONS:
Swing Over Bed.....................23.6"
Swing Over Carriage................21.6"
Maximum Cutting Diameter...........13"
Distance Between Spindles..........33.8"
X-Axis Travel......................9.84"
Y-Axis Travel......................3.94"
Z-Axis Travel......................22.8"
Maximum Bar Capacity...............2.625"
Maximum Machining Length...........20.1"
Main Spindle Speed.................5000 RPM
Sub-Spindle Speed..................6000 RPM
Spindle Nose.......................A2-6
Spindle Bore.......................2.99"
Main Spindle Motor.................20 HP
Sub-Spindle Motor..................10 HP
Spindle Indexing...................0.001 Degree
Number of Stations in Turret.......12
Rapid Traverse Rate, X/Z-Axes......740 / 945 IPM
Approximate Machine Dimensions.....123"LR x 67"FB x 88"H
Approximate Machine Weight.........11,000 LBS
EQUIPPED WITH:
Fanuc 18i-T CNC Control
LNS Quick Load Servo S2 Barfeeder
Full C-Axis on Both Spindles
Collet Chuck on Main Spindle
Additional 10" 3-Jaw Chuck for Main Spindle
6" Sub-Spindle Chuck
Automatic Tool Presetter
Rigid Tapping on Both Spindles
Live Tooling
Y-Axis
Mist Collector
Electric Cabinet Cooler
Parts Catcher
Parts Ejector with Arm & Conveyor
Chip Conveyor
Box Way Construction
(5) Vertical OD Live Tools
(5) Axial Face Live Tools
Lots of Turning & Boring Holders
Extra Collet Shoes
HY256
Specifications
Manufacturer | Daewoo/Doosan Puma 2000SY CNC Lathe |
Model | Puma 2000SY |
Condition | Used |
