2007 Model FT-0160C Fulton Fuel-Fired Coil Design, Thermal Fluid Heater FT-0160C

2007 Model FT-0160C Fulton Fuel-Fired Coil Design, Thermal Fluid Heater FT-0160C

Contact us for price

Florida

orCall 305-428-2777

Description

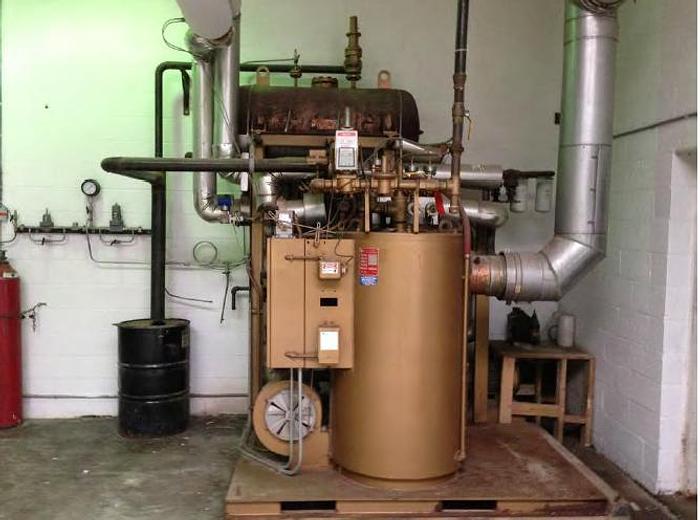

Skid Packaged Fulton FT-0160C with High Temperature Dickow Pump and 100 Gallon Expansion Tank and Nitrogen Balance, Built NEW in 2007. Natural Gas Fired Modulating Burner Fuel Train Built to CSD-1 Standards 900,000 BTU/Hr Net Output Standard Controls Complete with NEMA 1 Control Panel All Required Safety Devices for Max Operating Temperature of 750 Deg. F Flow Rate: 100 GPM 460/60/3 TEFC Motor Voltage 120/60/1 Control Voltage thru Incorporated Step Down Transformer Operation is based on DowTherm A Heater to include the following:. Sch. 80 Coil Safety Relief Valves Set @ 300 psi Diaphragm Seal Capillary Filled Pressure Indicators Diaphragm Seal Capillary Filled Pressure Switches Diaphragm Seal Capillary Filled Differential Pressure Switch Socket Weld Isolation Valves (For Instrumentation) Certified Thermowells for Process 2nd High Limit Thermocouple Manufactured to ASME Code, Section I, Inspected and Certified. Heaters are built with no refractory bricks & minimal refractory cement to prevent overheating & cracking of thermal fluid inside the heater should a power or circulating pump failure occur. Dickow Mag-Drive Air Cooled Centrifugal Pump Designed for 800 Deg. F Maximum Operating Temperature 100 GPM @ 55 psi 7.5 HP 3500 RPM TEFC Motor Motor Starter 460/60/3 Voltage Carbon Steel 100 Gallon Expansion Tank Built to ASME Section VIII Stamped for MAWP of 300 psi @ 800 Deg. F Tank Complete w/ High Temperature Level Switch High Pressure Nitrogen Regulator Back Pressure Regulator, Safety Valves, Pressure Gauges Skid mounting includes: Bellow Sealed Isolation Valves High Temperature Flexes and Strainers B-7 Bolts Spiral Wound Gaskets Remote Set Point for Controller UT550 Communications Package for UT550 Four Valve Reversing Manifold Shipping will be at the discretion and responsibility of the buyer. We will provide help in labor and equipment for moving and loading the skid. PP801

Specifications

ManufacturerModel FT-0160C Fulton Fuel-Fired Coil Design, Thermal Fluid Heater
ModelFT-0160C
Year2007
ConditionUsed
