Warren/Acme Resistance Welder /Spot welder/Chiller

Contact us for price

Florida

orCall 305-428-2777

Description

Chiller Model MM1500
Chiller Capacity: 1.5 ton
BTU's/Hr: 18000
Capacity based on 65F water temp; outlet temp: 10F delta t @ 95F ambient temperature
Reservoir Capacity: 10 Gallons
Dimensions
Length: 28 in
Width 25 in
Wet weight: 420 lbs
Pipe diameter: 0.5" or 1"

Electrical
Volts/Phase: 230/1 or 230/3 or 460/3
Hz: 60
FLA: 17 or 7.5

Misc Specifications:
HP: 0.33 or 0.5 or 1
Water Pump GPM: 4 or 10
Water Pump Pressure: 35 PSI or 50 PSI

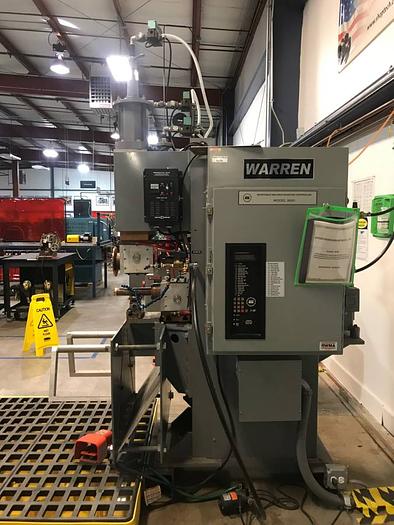

Warren Model 3000
Medium Frequency Inverter Resistance Welding Controller

FEATURES AND SPECIFICATIONS
• Spot Weld - Seam Weld - Roll Spot Weld - Butt Weld
• Fully Programmable 999 Weld Schedules
• Programmable Weld Counter for Each Weld Schedule
• Primary Weld Current Limit Built in Monitor
• Secondary Current Monitor with Auto Scaling 1K Amps to 99K Amps
• Welding Transformer/Rectifier Limits Monitor:
• Duty Cycle - Weld Time - K Amps
• Weld Controller Halts with Warning Message if limits are exceeded. Weld
• Controller reads Transformer I.D. Code to verify limits
• +/- Limit K Amps
• Factory Preset Operating Frequency 0.5KC - 2 KC
• Copper Water-cooled IGBT Heat Sink with Temp. Sensor
• Pulsating Heat Time - Cool Time Control
• Upslope - Downslope - Quench - Temper Control
• One Time Squeeze Delay in Repeat Mode
• Weld Heat Stepper
• Weld Pressure Stepper
• Direct Interface to Intertron Interlock Scanner
• Edit Lock via 4 Digit Pass Code for Each Weld Schedule
• Edit Weld Schedule Key Lock for All Weld Schedules
• Intermittent and Continuous Drive Motor Speed Control
• Weld and Forge Air Pressure Regulators
• 00 - 99 PSI or 000 - 682 KPA
• Air Volume Booster 45 CFM or 150 CFM
• Weld Cylinder Pressure Hi - Low Limit Sensor
• Chain Weld Schedules for Special Application Requirements
• Switch Inputs:
• Retraction - 1st and 2nd Stage - Remote Weld - Tip Dress - E. Stop
• Head DN - Key In - Key out for Machines with Key Lock Cylinder
• Heat Time Override Limit Switch in Butt Weld Mode
• Dual Anti-Tie-Down Mode: Momentary - Push and Hold
• Valve Outputs Retractions - Weld - Forge - Water Saver - Key Lock - Clutch/Brake
• RS232 Interface to P.C. prints out Weld Impulse Monitored Time and Current Upload/Download
• Weld Schedules to and from P.C.
• Secondary Weld Current Programming: K Amps or Heat %
• All Time Controls are Programmed in Milliseconds or Cycles
• Weld Schedule 000 allows setup of Initial Default Values and Units of Measure for All Weld Schedules

Electrical Specifications
• Input Power
• 3 Phase 220 VAC - 240 VAC - 380 VAC - 440 VAC - 480 VAC - 575 VAC
• 50/60 HZ
• Optional 3 Phase Breaker in Cabinet
• AC Output to Valves 120 VAC, 20 VA per Valve
• DC Output to Forge Valve 24 VDC 0.25 Amps
• Primary Current Driver 200 Amp to 800 Amp in Standard Cabinet
• 1000 Amp to 2000 Amp Driver in HL Cabinet, 12" taller than Standard

Acme Spot Welder 1-24-20 Model 108
Volts 460
Cycles 60
Control Voltage 460
K.V.A. 20
18" nominal throat depth, including tooling for your application
Model AR

B1253

Specifications

ManufacturerWarren/Acme Resistance Welder /Spot welder/Chiller
ConditionUsed
