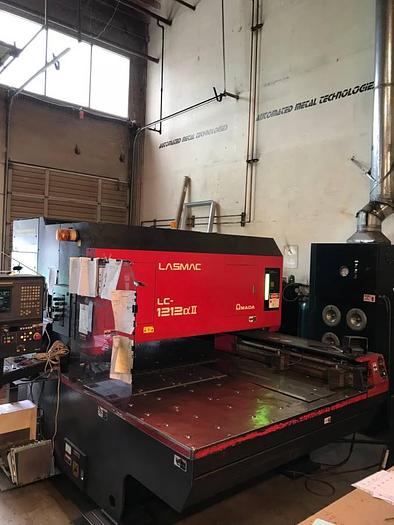

1998 Amada Pulsar LC1212A2 Metal Cutting CO2 Laser LC1212A2
No longer available
1998 Amada Pulsar LC1212A2 Metal Cutting CO2 Laser LC1212A2
Florida
Description
SPECIFICATIONS:
Year:1998
Fanuc C1500B Laser Cutting Machine Features:
Positioning accuracy of +-0.0004”/20”
Maximum table speed 3149 in/min
Maximum cutting speed 787 in/mi
Maximum sheet size 50” x 100”
Maximum sheet weight 484 lbs
Maximum material thicknesses:
Steel 0.375”
Stainless steel 0.187” Clean Cut
Aluminum 0.125”
Work Chute: 66" x 21"
Laser output 1500 Watt
CNC control Fanuc 160iLA (32 bit)
Display: LCD Color Graphics Display
Control Function: X, Y,Z, and B Simultaneous 3 Axis and B
axis Laser Power Control
Input Method: MDI, Edit, DNC or 3" PC Compatible Floppy Disk
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 128K (320m)
Optional Memory: Expandable to 256K or 512K
Operating Modes: Automatic, MDI & Manual
Display Modes: Program Contents, Position Information, Program Check,
Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self
Diagnostics
Interlock Displays Water Temperature, Gas Pressure, Vacuum Leak, Blower Malfunction, Shutter Power, Discharge, Assist Gas, Door Open
IPM: 1575 inpm
X-Axis: 50” Y Axis 50” Z axis 11.8”
Power required 33 KVA
Laser Gas: carbon dioxide (CO2)
Miscellaneous: Parts and consumables
Includes Koolant Koolers chiller and 10 HP Torit dust collector
Approximate weight: 10361 lbs.
Approximate floor space 120 X 88 X 90”
TG2039
Specifications
Manufacturer | Amada Pulsar LC1212A2 Metal Cutting CO2 Laser |
Model | LC1212A2 |
Year | 1998 |
Condition | Used |
